EW170 A (GE400) - Honda Generator, Made in Japan (SN: GE400-1000001 - GE400-9999999) BRUSH HOLDER + DIODE Parts Diagram

Generator, Made in Japan

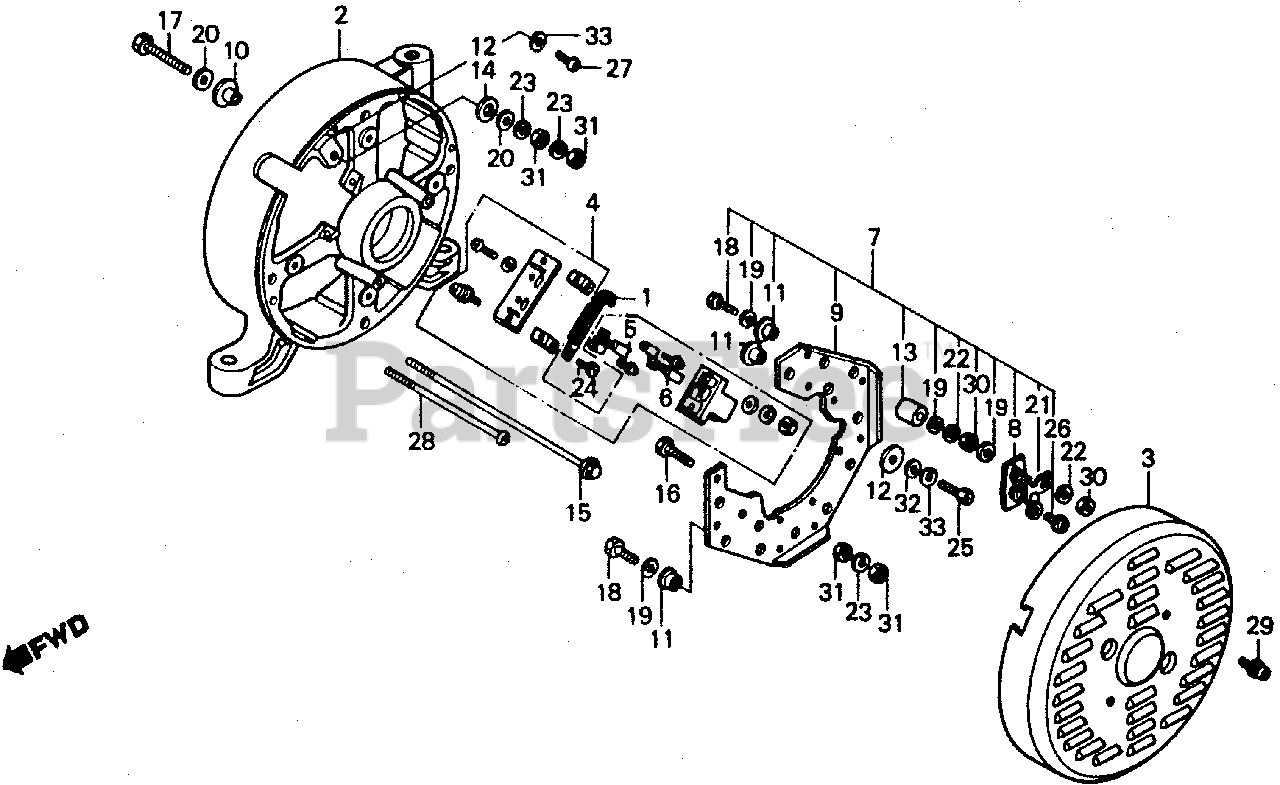

BRUSH HOLDER + DIODE Parts Diagram

  • Title

1

Honda 30564-871-601

CLAMP B, WIRE

$7.49

$

Usually ships in 3-6 days

0

2

Honda 31108-ZA1-811H

HOUSING, RR. *R8* (BRIGHT RED)

Note: Use up to Frame SN 1022281.

$

$

Not available

2

Honda 31108-ZA1-812H

HOUSING, RR. *R8* (BRIGHT RED)

Note: Use from Frame SN 1022282.

$

$

Not available

3

Honda 31113-ZA1-811H

COVER, ALTERNATOR END *R8* (BRIGHT RED)

$

$

Not available

4

Honda 31120-ZA1-811

HOLDER ASSY., BRUSH (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 31122-ZA1-811

BRUSH (A) (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 31128-ZA1-811

BRUSH (B) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 31135-ZA1-811

DIODE ASSY.

$

$

Not available

8

Honda 31136-ZA1-811

DIODE

$

$

Not available

9

Honda 31137-ZA1-811

PLATE, HEAT SINK (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 31706-ZA1-811

BUSH, INSULATING (6MM)

Note: Use up to Frame SN 1000281.

$

$

Not available

10

Honda 31706-ZA1-812

BUSH, INSULATING (6MM)

Note: Use from Frame SN 1022282.

$8.99

$

Usually ships in 3-6 days

0

11

Honda 31706-ZA1-831

BUSH, INSULATING (5MM)

$8.99

$

Usually ships in 3-6 days

0

12

Honda 31707-ZA1-811

WASHER, INSULATING

Note: Use up to Frame SN 1022281.

$4.49

$

Usually ships in 3-6 days

0

12

Honda 31707-ZA1-811

WASHER, INSULATING

Note: Use from Frame SN 1022282.

$4.49

$

Usually ships in 3-6 days

0

13

Honda 31707-ZA1-831

INSULATOR (5MM)

$8.99

$

Usually ships in 3-6 days

0

14

Honda 31707-ZA1-871

WASHER, INSULATING

Note: Use from Frame SN 1022282.

$4.49

$

Usually ships in 3-6 days

0

15

Honda 90101-ZA1-811

BOLT, HEX. (6X230)

$

$

Not available

16

Honda 90102-ZA1-811

BOLT, HEX. (6X14)

$

$

Not available

17

Honda 90103-ZA1-811

BOLT, HEX. (6X30)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 90104-ZA1-811

BOLT, HEX. (5X35) (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 90501-ZA1-811

WASHER, PLAIN (5MM) (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 90502-ZA1-811

WASHER, PLAIN (6MM)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 90503-ZA1-811

WASHER, SPRING (4MM)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 90504-ZA1-811

WASHER, SPRING (5MM)

$2.99

$

Usually ships in 3-6 days

0

23

Honda 90505-ZA1-811

WASHER, SPRING (6MM)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 92101-05010-0A

BOLT, HEX. (5X10)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 92101-05020-0A

BOLT, HEX. (5X20)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 93500-04008-3J

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 90102-899-003

SCREW, PAN (5X12)

Note: Use from Frame SN 1035477.

$3.99

$

Usually ships in 3-6 days

0

27

Honda 93500-05012-3J

SCREW, PAN (5X12)

Note: Use up to Frame SN 1035476.

$1.49

$

Usually ships in 3-6 days

0

28

Honda 93500-05065-1A

SCREW, PAN (5X65)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 93893-05010-08

SCREW-WASHER (5X10)

$1.99

$

Usually ships in 3-6 days

0

30

Honda 94001-05390-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94001-06390-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

32

Honda 94103-05800

WASHER, PLAIN (5MM)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 94111-05800

WASHER, SPRING (5MM)

$1.49

$

Usually ships in 3-6 days

0
