EW140 A (EA9) - Honda Generator, Made in Japan (SN: EA9-1000001 - EA9-9999999) REAR HOUSING Parts Diagram

Generator, Made in Japan

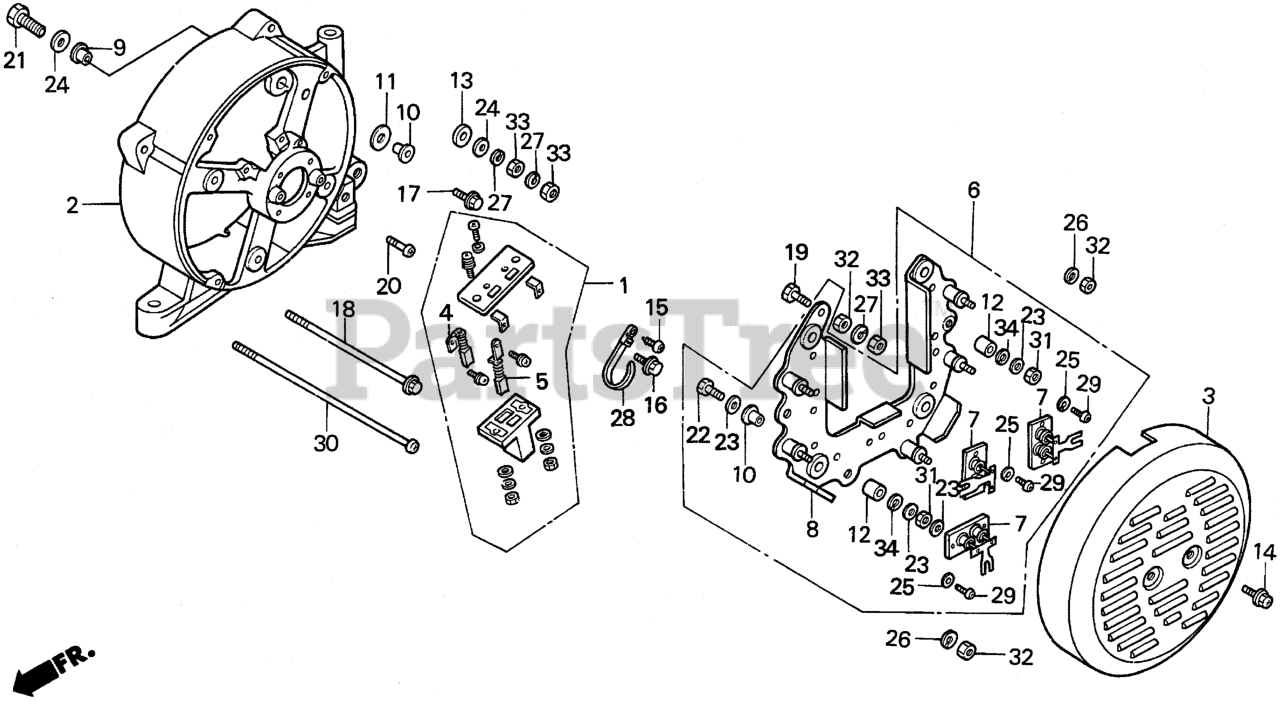

REAR HOUSING Parts Diagram

  • Title

1

Honda 31106-ZB4-811

HOLDER ASSY., BRUSH

$110.99

$

Usually ships in 3-6 days

0

2

Honda 311A0-ZB4-811

HOUSING, RR.

Note: Use up to Frame SN 1002411.

$

$

Currently unavailable

2

Honda 311A0-ZB4-831

HOUSING, RR.

Note: Use from Frame SN 1002412.

$

$

Currently unavailable

3

Honda 31113-ZB4-811

SEE PART DETAILS - PRI; COVER, GENERATOR END

$104.99

$

Usually ships in 3-6 days

0

4

Honda 31122-ZB4-811

BRUSH (A)

$33.99

$

Usually ships in 3-6 days

0

5

Honda 31128-ZB4-811

BRUSH (B)

$33.99

$

Usually ships in 3-6 days

0

6

Honda 31135-ZB4-811

DIODE ASSY.

$1433.99

$

Usually ships in 3-6 days

0

7

Honda 31136-ZA1-811

DIODE

$

$

Not available

8

Honda 31137-ZB4-811

PLATE, HEAT SINK

$143.99

$

Usually ships in 3-6 days

0

9

Honda 31706-ZA1-812

BUSH, INSULATING (6MM)

$8.99

$

Usually ships in 3-6 days

0

10

Honda 31706-ZA1-831

BUSH, INSULATING (5MM)

$8.99

$

Usually ships in 3-6 days

0

11

Honda 31707-ZA1-811

WASHER, INSULATING

$4.49

$

Usually ships in 3-6 days

0

12

Honda 31707-ZA1-831

INSULATOR (5MM)

$8.99

$

Usually ships in 3-6 days

0

13

Honda 31707-ZA1-871

WASHER, INSULATING

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90031-ZB4-811

SCREW, TAPPING (5X8)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 90032-ZB4-811

SCREW, TAPPING (4X10)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90033-875-003

SCREW, TAPPING (5X16)

$2.99

$

Usually ships in 3-6 days

0

18

Honda 90101-ZB4-811

BOLT, FLANGE (6X135)

$6.99

$

Usually ships in 3-6 days

0

19

Honda 90102-ZA1-811

BOLT, HEX. (6X14)

Note: Use up to Frame SN 1000751.

$

$

Not available

19

Honda 90102-ZB4-811

BOLT, HEX. (6X16)

Note: Use from Frame SN 1000752.

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90102-899-003

SCREW, PAN (5X12) (GROUND CABLE)

$3.99

$

Usually ships in 3-6 days

0

21

Honda 90103-ZA1-811

BOLT, HEX. (6X30)

$4.99

$

Usually ships in 3-6 days

0

22

Honda 90104-ZA1-811

BOLT, HEX. (5X35) (NOT AVAILABLE)

Note: Use up to Frame SN 1002411.

$

$

Currently unavailable

22

Honda 92101-05035-1H

BOLT, HEX. (5X35)

Note: Use from Frame SN 1002412.

$1.49

$

Usually ships in 3-6 days

0

23

Honda 90501-ZA1-811

WASHER, PLAIN (5MM) (NOT AVAILABLE)

Note: Use up to Frame SN 1002411.

$

$

Currently unavailable

23

Honda 94101-05800

WASHER, PLAIN (5MM) (Honda Code 0285791).

Note: Use from Frame SN 1002412.

$1.49

$

In Stock, only 2 left!

0

24

Honda 90502-ZA1-811

WASHER, PLAIN (6MM)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 90503-ZA1-811

WASHER, SPRING (4MM)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 90504-ZA1-811

WASHER, SPRING (5MM)

Note: Use up to Frame SN 1002411.

$2.99

$

Usually ships in 3-6 days

0

26

Honda 94111-05800

SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0251215).

Note: Use from Frame SN 1002412.

$1.49

$

Usually ships in 3-6 days

0

27

Honda 90505-ZA1-811

WASHER, SPRING (6MM)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 90673-ZB4-003

TIE, CABLE

$5.99

$

Usually ships in 3-6 days

0

29

Honda 93500-04008-3J

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

30

Honda 90091-ZB4-811

SCREW, PAN (5X175)

$10.99

$

Usually ships in 3-6 days

0

31

Honda 94001-05390-0S

NUT, HEX. (5MM)

Note: Use up to Frame SN 1002411.

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94002-05080-0S

NUT, HEX. (5MM)

Note: Use from Frame SN 1002412.

$1.49

$

Usually ships in 3-6 days

0

32

Honda 94002-05390-0S

NUT, HEX. (5MM)

$0.99

$

Usually ships in 3-6 days

0

33

Honda 94002-06390-0S

NUT, HEX. (6MM)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 90504-ZA1-811

WASHER, SPRING (5MM)

Note: Use up to Frame SN 1002411.

$2.99

$

Usually ships in 3-6 days

0
