EW140 A (EA9) - Honda Generator, Made in Japan (SN: EA9-1000001 - EA9-9999999) IGNITION COIL Parts Diagram

Generator, Made in Japan

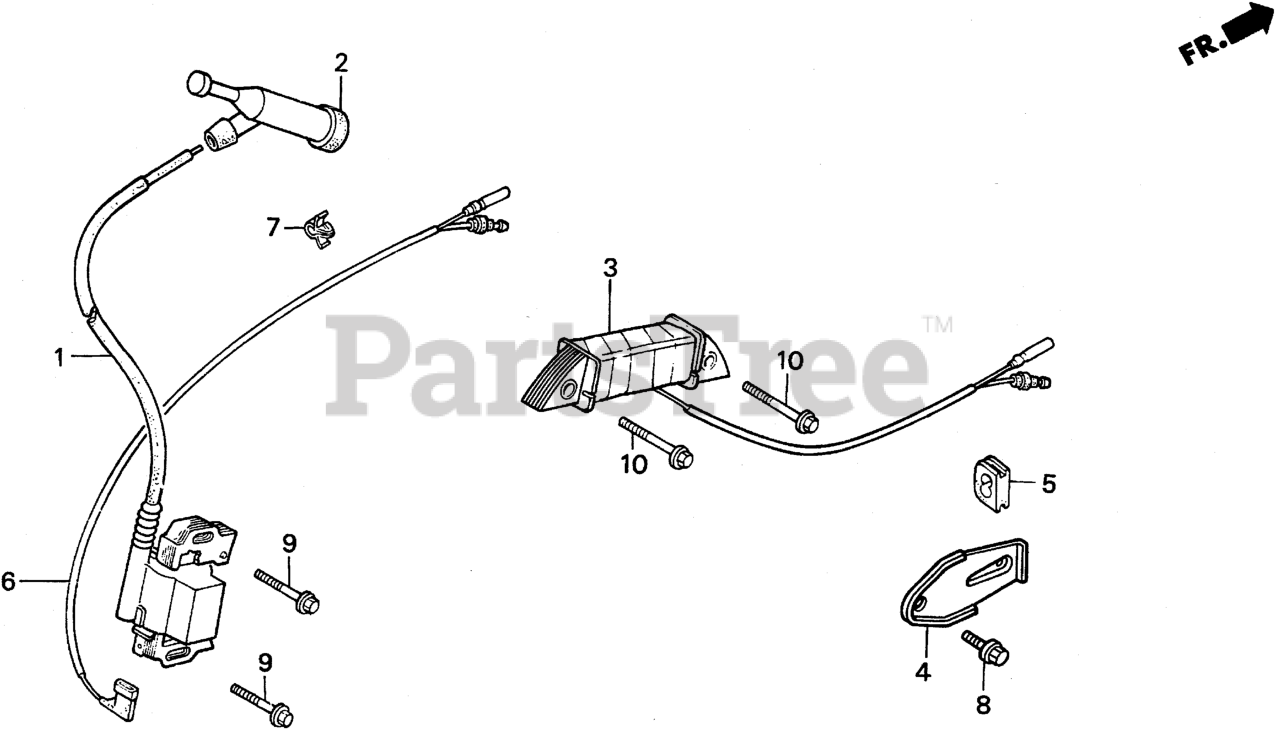

IGNITION COIL Parts Diagram

  • Title

1

Honda 30500-ZE2-003

COIL ASSY., IGNITION (Honda Code 2026375).

Note: Use up to Engine SN 1512433.

$165.99

$

Usually ships in 3-6 days

0

1

Honda 30500-ZE2-023

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (Honda Code 4545927).

Note: Use from Engine SN 1512434.

$58.99

$

In Stock, only 4 left!

0

1

Honda 30500-ZF6-W02

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (Honda Code 7032428).

Note: Use from Engine SN 1512434.

$58.99

$

In Stock, only 4 left!

0

2

Honda 30700-ZE1-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3526837). (NICHIWA Y-EZ RTFM256)

$24.99

$

In Stock, only 1 left!

0

3

Honda 31510-ZE1-003

SEE PART DETAILS - PRI; COIL ASSY., LAMP (12V/15W)

$86.99

$

Usually ships in 3-6 days

0

4

Honda 31511-ZE2-000

CLAMP, WIRE (Honda Code 2026540).

$6.99

$

Usually ships in 3-6 days

0

5

Honda 31512-ZE2-000

GROMMET, WIRE (Honda Code 2026557).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 36101-ZE2-700

WIRE, STOP SWITCH (430MM)

Note: Use up to Engine SN 1512433.

$

$

Not available

6

Honda 36101-ZE2-701

WIRE, STOP SWITCH (430MM)

Note: Use from Engine SN 1512434.

$12.99

$

Usually ships in 3-6 days

0

7

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

Note: Use up to Engine SN 1487105.

$2.99

$

In Stock, only 1 left!

0

8

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

9

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, Qty 8

0

10

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

$2.49

$

Usually ships in 3-6 days

0
