EW140 A (EA9) - Honda Generator, Made in Japan (SN: EA9-1000001 - EA9-9999999) FUEL TANK Parts Diagram

Generator, Made in Japan

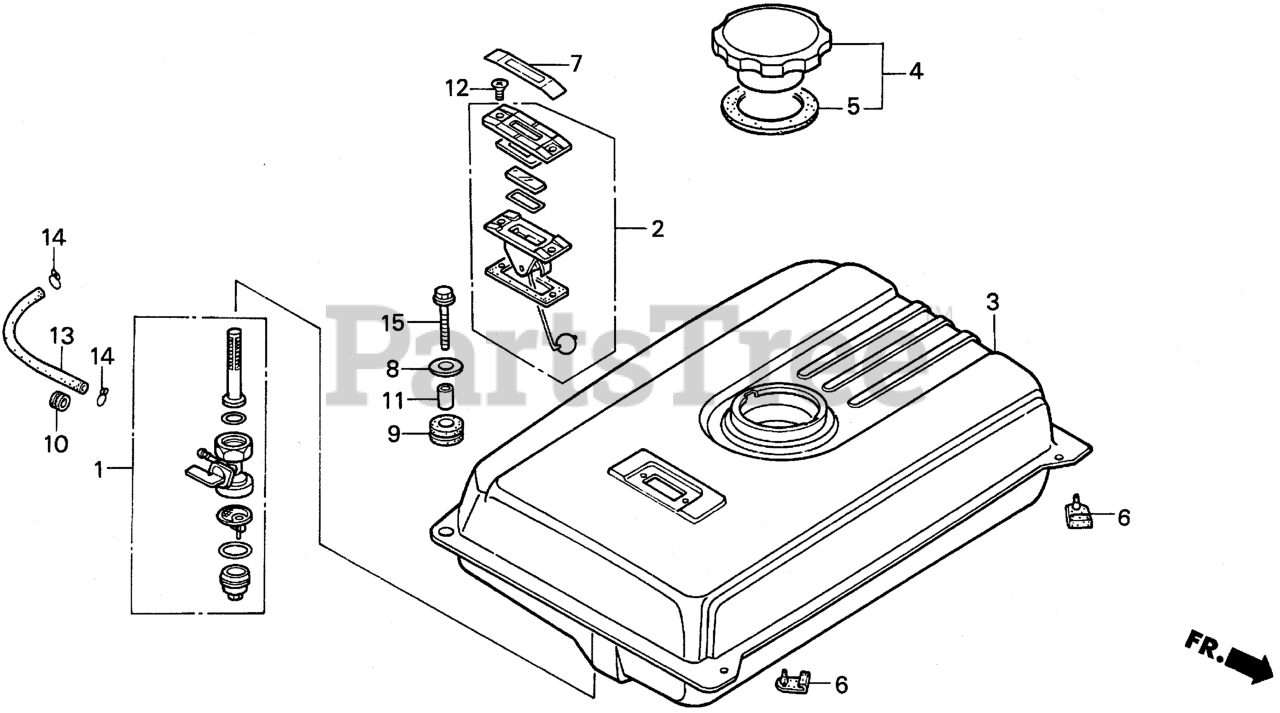

FUEL TANK Parts Diagram

  • Title

1

Honda 16950-ZB4-005

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-ZB4-015)

Note: Use up to Frame SN 1002681.

$99.99

$

In Stock, only 4 left!

0

1

Honda 16950-ZB4-015

SEE PART DETAILS - PRI; PETCOCK ASSY.

$99.99

$

In Stock, only 4 left!

0

2

Honda 17505-ZB2-013

SEE PART DETAILS - PRI; METER ASSY., FUEL

$25.99

$

Usually ships in 3-6 days

0

3

Honda 17510-ZB4-000ZH

SEE PART DETAILS - PRI; TANK, FUEL *R280* (POWER RED)

$265.99

$

Usually ships in 3-6 days

0

4

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-899-023)

$40.99

$

In Stock, only 1 left!

0

4

Honda 17620-899-023

CAP, FUEL FILLER

$40.99

$

In Stock, only 1 left!

0

5

Honda 17631-434-310

GASKET, FUEL FILLER CAP

Note: Use up to Frame SN 1002171.

$

$

Currently unavailable

5

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

Note: Use from Frame SN 1002172.

$7.99

$

In Stock, only 2 left!

0

6

Honda 50319-ZB2-000

RUBBER, TANK MOUNTING

$4.99

$

Usually ships in 3-6 days

0

7

Honda 87565-ZA7-000

MARK, FUEL METER

$5.49

$

Usually ships in 3-6 days

0

8

Honda 90503-898-000

WASHER, TANK CUSHION

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90851-898-000

CUSHION, TANK RUBBER (Honda Code 1106806).

$5.99

$

In Stock, only 1 left!

0

10

Honda 90854-ZB2-000

RUBBER, FUEL (9X15X10)

$4.49

$

Usually ships in 3-6 days

0

11

Honda 91551-898-000

COLLAR, TANK CUSHION

$5.99

$

Usually ships in 3-6 days

0

12

Honda 93600-05010-0A

SEE PART DETAILS - PRI; SCREW, FLAT (5X10) (Honda Code 0181529).

$1.49

$

In Stock, only 3 left!

0

13

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 4 left!

0

14

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, only 4 left!

0

15

Honda 95701-06022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22) (Honda Code 2105823).

Note: Use from Frame SN 1002172.

$2.49

$

In Stock, only 1 left!

0

15

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

Note: Use up to Frame SN 1002171.

$2.49

$

In Stock, Qty 8

0
