EW140 A (EA9) - Honda Generator, Made in Japan (SN: EA9-1000001 - EA9-9999999) FRAME Parts Diagram

Generator, Made in Japan

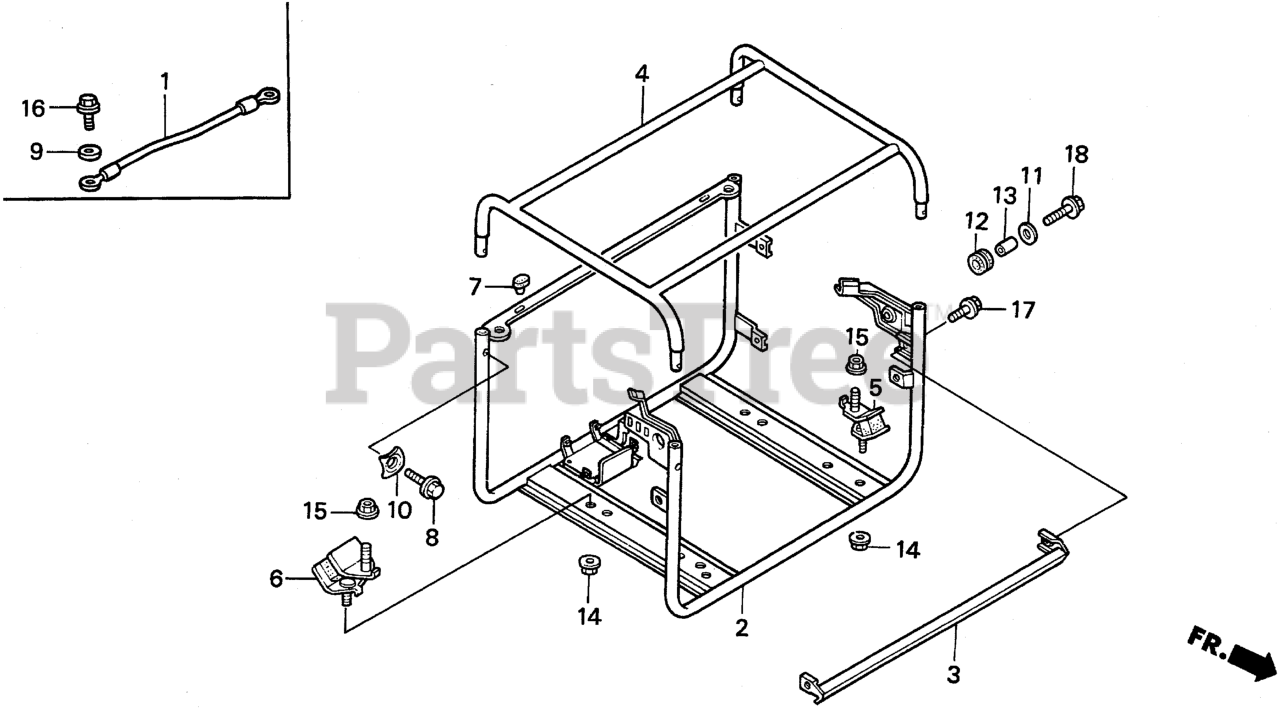

FRAME Parts Diagram

  • Title

1

Honda 32610-899-000

CABLE, GROUND

Note: Use from Frame SN 1002172.

$13.99

$

Usually ships in 3-6 days

0

2

Honda 50311-ZB4-800ZA

FRAME (LOWER) *NH105* (MAT BLACK)

Note: Use up to Frame SN 1002171.

$

$

Not available

2

Honda 50311-ZB4-830ZA

FRAME (LOWER) *NH105* (MAT BLACK)

Note: Use from Frame SN 1002172.

$

$

Currently unavailable

3

Honda 50316-ZB4-800ZA

CHANNEL, FR. *NH105* (MAT BLACK)

$

$

Not available

4

Honda 50351-ZB4-800ZA

FRAME (UPPER) *NH105* (MAT BLACK)

$

$

Not available

5

Honda 68325-ZB4-000

RUBBER (LOWER)

$41.99

$

In Stock, only 2 left!

0

6

Honda 68325-899-000

RUBBER (LOWER)

$53.99

$

Usually ships in 3-6 days

0

7

Honda 76122-952-000

STOPPER, DISCHARGE GUARD Use up to Frame SN 1186736.

$4.99

$

In Stock, only 2 left!

0

8

Honda 90015-898-000

BOLT, FLANGE (8X20) (NOT AVAILABLE)

Note: Use up to Frame SN 1002116.

$2.99

$

Usually ships in 3-6 days

0

8

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: Use from Frame SN 1002695.

$2.49

$

In Stock, Qty 20+

0

8

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

Note: Use from Frame SN 1002117 to 1002694.

$2.49

$

In Stock, only 1 left!

0

9

Honda 90432-898-000

WASHER, LOCK (6MM)

Note: Use from Frame SN 1002172.

$1.49

$

Usually ships in 3-6 days

0

10

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 12

0

11

Honda 90506-500-000

WASHER, AIR DUCT

$

$

Currently unavailable

12

Honda 90852-898-000

RUBBER, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0

13

Honda 91552-898-000

COLLAR, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0

14

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

15

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, Qty 6

0

16

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

Note: Use from Frame SN 1002172.

$1.99

$

In Stock, Qty 13

0

17

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

18

Honda 95700-06018-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X18)
(Superseded to 95701-06018-00)

$2.49

$

In Stock, Qty 7

0

18

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 7

0
