EW140 A (EA9) - Honda Generator, Made in Japan (SN: EA9-1000001 - EA9-9999999) CONTROL BOX Parts Diagram

Generator, Made in Japan

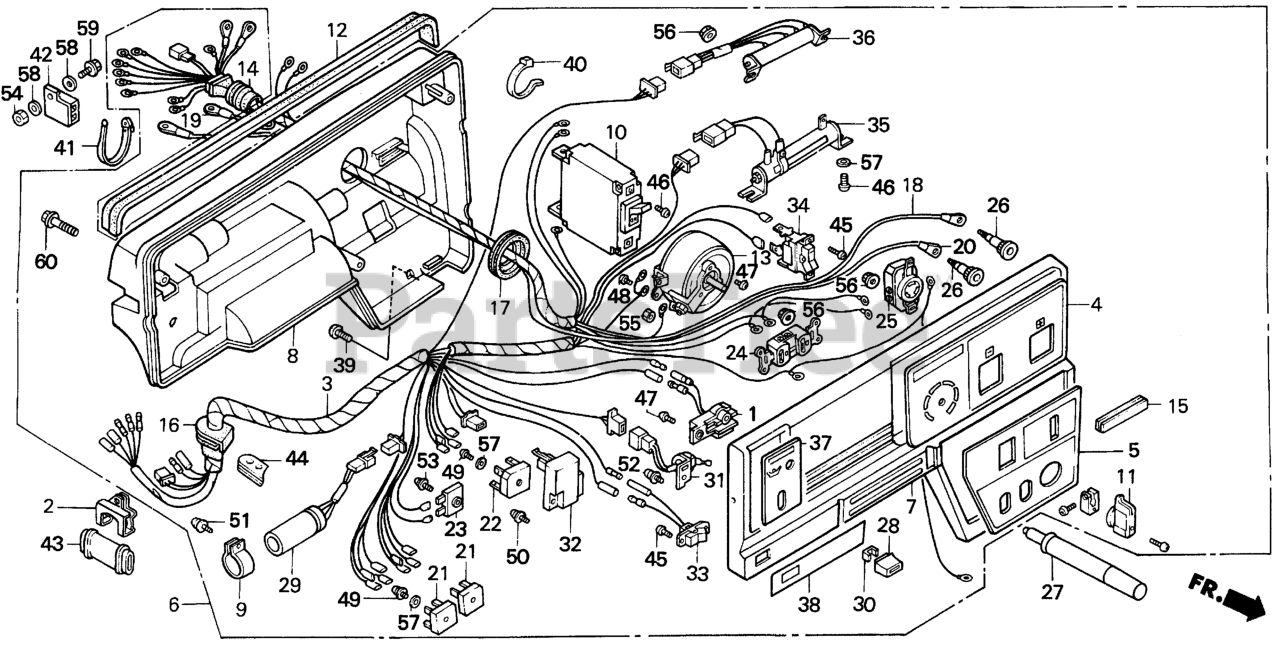

CONTROL BOX Parts Diagram

  • Title

1

Honda 15520-ZB2-003

ALERT UNIT, OIL (NOT AVAILABLE)

$

$

Not available

2

Honda 30561-ZB4-000

CLIP, WIRE

$6.99

$

Usually ships in 3-6 days

0

3

Honda 31405-ZB4-831

WIRE HARNESS ASSY.

$

$

Not available

4

Honda 31407-ZB4-830

MARK, CURRENT CONTROL

$

$

Currently unavailable

5

Honda 31409-ZB4-830

MARK, A.C. OUT

Note: Use up to Frame SN 1000621.

$

$

Currently unavailable

5

Honda 31409-ZB4-831

MARK, A.C. OUT

Note: Use from Frame SN 1000622.

$

$

Not available

6

Honda 31410-ZB4-831ZA

BOX ASSY., CONTROL *R8* (BRIGHT RED)

$

$

Not available

7

Honda 31421-ZC2-832ZB

PANEL, CONTROL *R8*

$223.99

$

Usually ships in 3-6 days

0

8

Honda 31425-ZB4-010ZA

SEE PART DETAILS - SUP; CASE, CONTROL *R8* (BRIGHT RED)
(Superseded to 31425-ZB4-010ZD)

$

$

Not available

9

Honda 31427-ZB4-811

HOLDER, CONDENSER

$6.49

$

Usually ships in 3-6 days

0

10

Honda 31431-ZB4-690

BREAKER, CIRCUIT (12A)

$

$

Not available

11

Honda 31461-ZA1-811

KNOB, ADJUSTING

$22.99

$

Usually ships in 3-6 days

0

12

Honda 31462-ZB4-000

RUBBER, CONTROL

$20.99

$

In Stock, only 1 left!

0

13

Honda 31466-ZB4-811

RESISTOR, VARIABLE

$265.99

$

Usually ships in 3-6 days

0

14

Honda 31481-ZB4-003

GROMMET, A.C. WIRE

$14.99

$

Usually ships in 3-6 days

0

15

Honda 31482-ZB4-811

GROMMET, COVER

$

$

Not available

16

Honda 31483-ZB4-003

SEE PART DETAILS - PRI; GROMMET, SWITCH WIRE

$12.99

$

Usually ships in 3-6 days

0

17

Honda 31484-ZB4-811

GROMMET, MAIN WIRE

$11.99

$

Usually ships in 3-6 days

0

18

Honda 31596-ZB4-831

WIRE A, WELDER TERMINAL

$

$

Not available

19

Honda 31597-ZB4-811

WIRE B, WELDER TERMINAL

$

$

Not available

20

Honda 31598-ZB4-831

WIRE C, WELDER TERMINAL

$

$

Currently unavailable

21

Honda 31710-ZA0-003

STACK, DIODE

$70.99

$

Usually ships in 3-6 days

0

22

Honda 31710-ZA1-811

DIODE

$88.99

$

Usually ships in 3-6 days

0

23

Honda 31710-ZB4-811

STACK, DIODE

$75.99

$

Usually ships in 3-6 days

0

24

Honda 32330-ZA1-631

RECEPTACLE (20A/125V) (MATSUSHITA)
(Superseded to 32330-Z03-C31)

$50.99

$

In Stock, only 1 left!

0

24

Honda 32330-Z03-C31

RECEPTACLE (20A/125V)

$50.99

$

In Stock, only 1 left!

0

25

Honda 32332-ZB4-630

SEE PART DETAILS - SUP; RECEPTACLE (30A/125V)

$46.99

$

In Stock, only 1 left!

0

25

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

Note: Use up to Frame SN 1000621.

$46.99

$

In Stock, only 1 left!

0

26

Honda 32335-ZA1-830

RECEPTACLE, PANEL

$134.99

$

In Stock, only 2 left!

0

27

Honda 32336-ZA1-831

CONNECTOR, MALE

$85.99

$

Usually ships in 3-6 days

0

28

Honda 32343-892-003

SEE PART DETAILS - PRI; KNOB, PETCOCK LEVER

$13.99

$

Usually ships in 3-6 days

0

29

Honda 32380-ZB4-811

CAPACITOR ASSY.

$

$

Not available

30

Honda 36106-892-003

BUSH, CONTROL KNOB

$6.49

$

Usually ships in 3-6 days

0

31

Honda 36110-ZB4-702

SEE PART DETAILS - PRI; SWITCH ASSY., ENGINE STOP

$33.99

$

Usually ships in 3-6 days

0

32

Honda 36210-ZB4-811

THROTTLE UNIT ASSY., AUTO

$271.99

$

Usually ships in 3-6 days

0

33

Honda 36214-ZB4-013

SEE PART DETAILS - PRI; SWITCH, AUTO THROTTLE
(Superseded to 36214-ZB4-023)

$38.99

$

Usually ships in 3-6 days

0

33

Honda 36214-ZB4-023

SWITCH, AUTO THROTTLE

$38.99

$

Usually ships in 3-6 days

0

34

Honda 36222-ZB4-811

SWITCH ASSY.

$100.99

$

Usually ships in 3-6 days

0

35

Honda 37503-ZB4-811

RESISTOR, ADJUSTABLE

$

$

Not available

36

Honda 37505-ZB4-811

RESISTOR

$193.99

$

Usually ships in 3-6 days

0

37

Honda 87501-ZB4-730

MARK, ENGINE SWITCH

$

$

Currently unavailable

38

Honda 87524-ZB4-830

MARK, AUTO-THROTTLE (EB-A)

$

$

Not available

39

Honda 90101-692-000

SCREW, GLOVE BOX

Note: Use from Frame SN 1000752.

$1.99

$

Usually ships in 3-6 days

0

40

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$5.99

$

Usually ships in 3-6 days

0

41

Honda 90672-ZB4-811

TIE, CABLE

$4.49

$

Usually ships in 3-6 days

0

42

Honda 90686-SB3-003

CLIP, WIRE HARNESS

$

$

Currently unavailable

43

Honda 91406-ZB4-000

TUBE, CORD

$11.99

$

Usually ships in 3-6 days

0

44

Honda 91601-ZB4-003

GROMMET, TUBE

$3.99

$

Usually ships in 3-6 days

0

45

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

$1.49

$

In Stock, Qty 5

0

46

Honda 93500-04006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (Honda Code 0285627).

$1.49

$

In Stock, Qty 8

0

47

Honda 93500-04008-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0369017).

$1.49

$

Usually ships in 3-6 days

0

48

Honda 93500-04010-3C

SCREW, PAN (4X10)

$1.99

$

Usually ships in 3-6 days

0

49

Honda 93892-04020-18

SCREW-WASHER (4X20)

$

$

Currently unavailable

50

Honda 93892-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0368621).

$1.49

$

In Stock, only 3 left!

0

51

Honda 93893-04010-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X10)

$1.99

$

In Stock, Qty 6

0

52

Honda 93892-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12) (Honda Code 0368621).

Note: Use up to Frame SN 1000571.

$1.49

$

In Stock, only 3 left!

0

52

Honda 93893-05014-08

SCREW-WASHER (5X14)

Note: Use from Frame SN 1000572.

$1.99

$

Usually ships in 3-6 days

0

53

Honda 93893-05020-18

SCREW-WASHER (5X20)

$1.49

$

Usually ships in 3-6 days

0

54

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM) (Honda Code 0156067).
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

54

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 2043255).

$1.99

$

In Stock, Qty 20+

0

55

Honda 94002-04330-0S

NUT, HEX. (4MM)

$0.99

$

Usually ships in 3-6 days

0

56

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

57

Honda 94101-04800

SEE PART DETAILS - PRI; WASHER, PLAIN (4MM) (Honda Code 0331462).

$1.49

$

Usually ships in 3-6 days

0

58

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 20+

0

59

Honda 95701-06032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2105856).

$2.49

$

In Stock, Qty 5

0

60

Honda 95701-06040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40) (Honda Code 2105872).

$2.49

$

Usually ships in 3-6 days

0
