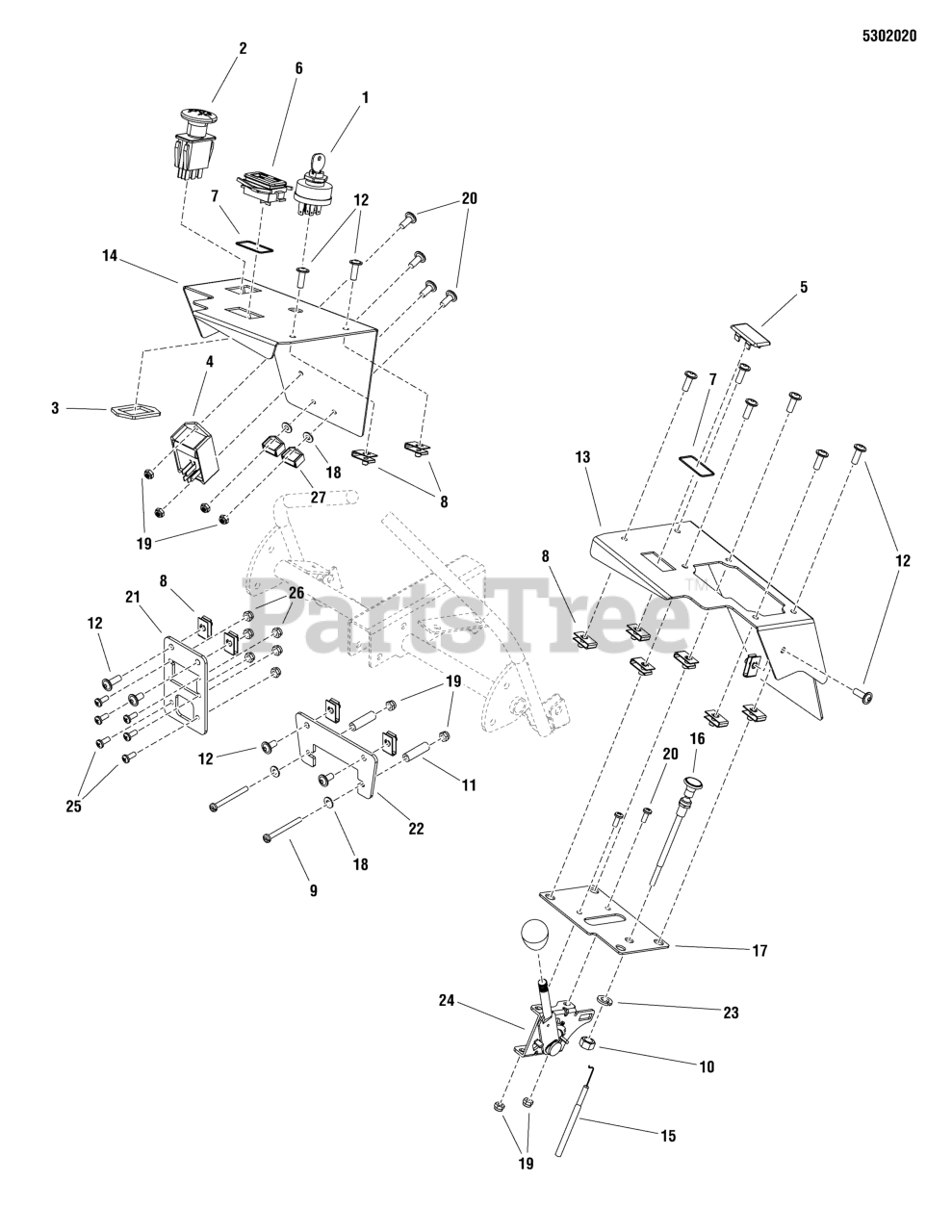

EVS (5900910) - Snapper Pro EVS Series 36" Stand-On Mower, 19hp Kawasaki Instrument Control Panel Group Parts Diagram

EVS Series 36" Stand-On Mower, 19hp Kawasaki

Instrument Control Panel Group Parts Diagram

  • Title

1

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

In Stock, only 3 left!

0

2

Snapper Pro 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

3

Snapper Pro 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 2 left!

0

4

Snapper Pro 5023310

MODULE, TIME DELAY
(Superseded to 5023310SM)

$114.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5102417

HOUR METER

$64.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5022269

O-RING, 7/8 ID X 1/16 W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025270X16

SCREW, #10-24 X 2 ROUND PHILLIPS

$

$

Currently unavailable

10

Snapper Pro 5025309

NUT, 3/8-24 HEX JAM
(Superseded to 5025309SM)

$2.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5061763

SPACER, .20 X .38 X 1.25
(Superseded to 5061763FS)

$5.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5404585D

PLATE, CONTROL PANEL, LH - RED

$

$

Currently unavailable

14

Snapper Pro 5404586D

PLATE, CONTROL PANEL, RH - RED

$

$

Currently unavailable

15

Snapper Pro 5101890

CABLE, THROTTLE, 31"

$25.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5100185

CABLE, CHOKE CONTROL, 35.25"
(Superseded to 5102875)

$30.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5404849D

PLATE, CHOKE/THROTTLE - RED

$

$

Currently unavailable

18

Snapper Pro 5023499

WASHER, #10 SAE
(Superseded to 5023499SM)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025179X4

SCREW- #10-24 X 1/2 ROUND PHILLIPS

$

$

Currently unavailable

21

Snapper Pro 5404920D

PLATE, CONNECTORS, OPERATOR PLATFORM

$

$

Currently unavailable

22

Snapper Pro 5404921D

PLATE, FUSE BLOCK - RED

$

$

Currently unavailable

23

Snapper Pro 5025171

WASHER, 3/8 SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 1 left!

0

24

Snapper Pro 5101995

LEVER, THROTTLE CONTROL
(Superseded to 5101995YP)

$42.99

$

In Stock, only 2 left!

0

25

Snapper Pro 5025338X5

SCREW,#8-32 X 5/8 PHILLIPS ZP
(Superseded to 5025338X5YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025339

NUT, #8-32 HEX NYLON LOCK
(Superseded to 5025339YP)

$2.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5021766

RELAY, 12V, 40A
(Superseded to 5021766SM)

Note: (SEE ELECTRICAL GROUP)

$24.99

$

Usually ships in 2-12 days

0
