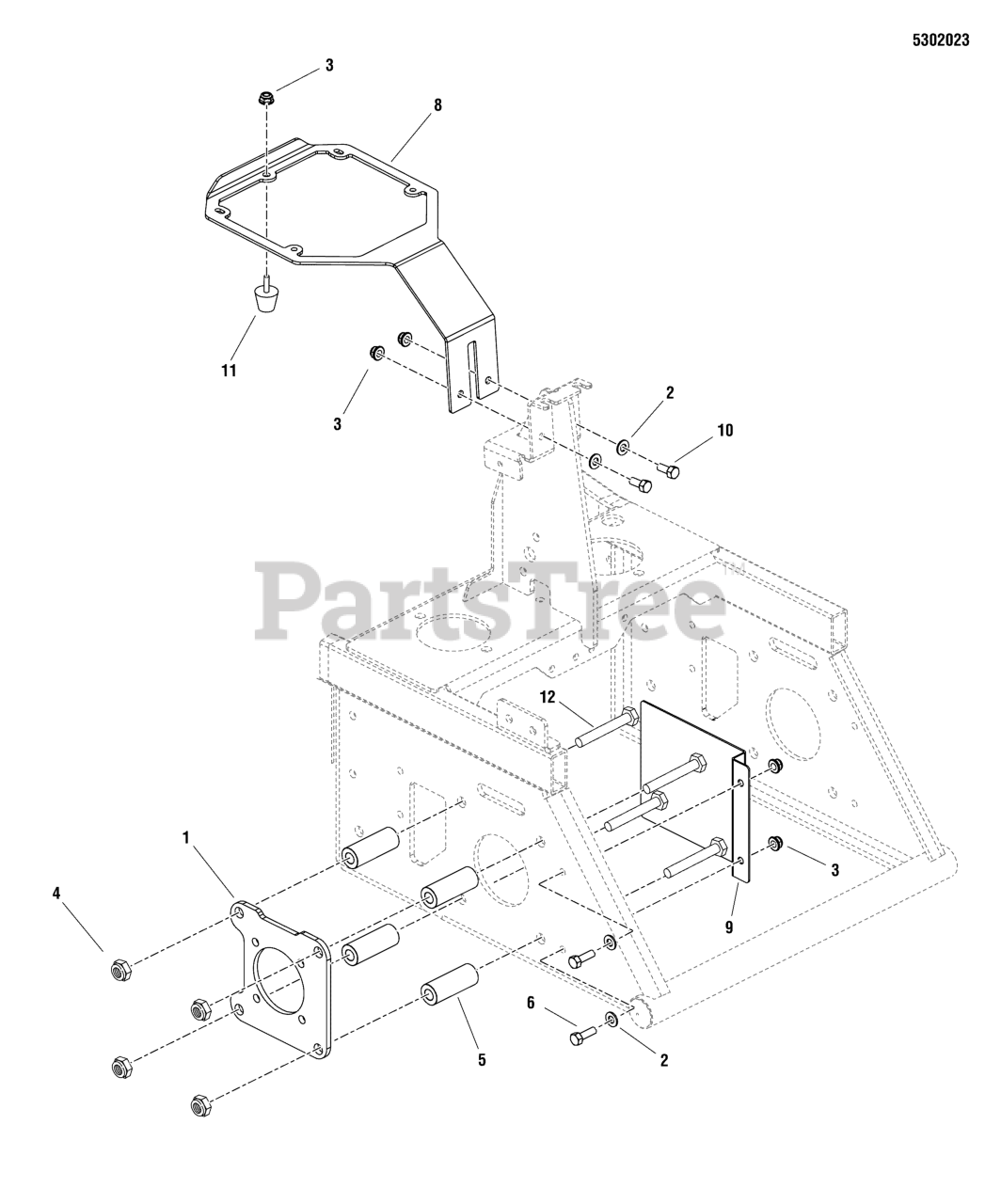

EVS (5900910) - Snapper Pro EVS Series 36" Stand-On Mower, 19hp Kawasaki Hydraulic Mount & Guards Group Parts Diagram

EVS Series 36" Stand-On Mower, 19hp Kawasaki

Hydraulic Mount & Guards Group Parts Diagram

  • Title

1

Snapper Pro 5403409

PLATE, SPACER

$

$

Not available

2

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

3

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

5

Snapper Pro 5101831

SPACER, .52 X 1.00 X 2.625, YZ

$11.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

7

Snapper Pro 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0

8

Snapper Pro 5404587D

PLATE, COOLER MOUNT BRACKET - RED

$

$

Currently unavailable

9

Snapper Pro 5404776D

PLATE, HEAT SHIELD, WHEEL MOTOR, 36-RED

$

$

Currently unavailable

10

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

11

Snapper Pro 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

$23.99

$

In Stock, only 2 left!

0
