EVS (5900910) - Snapper Pro EVS Series 36" Stand-On Mower, 19hp Kawasaki Guards & Covers Group Parts Diagram

EVS Series 36" Stand-On Mower, 19hp Kawasaki

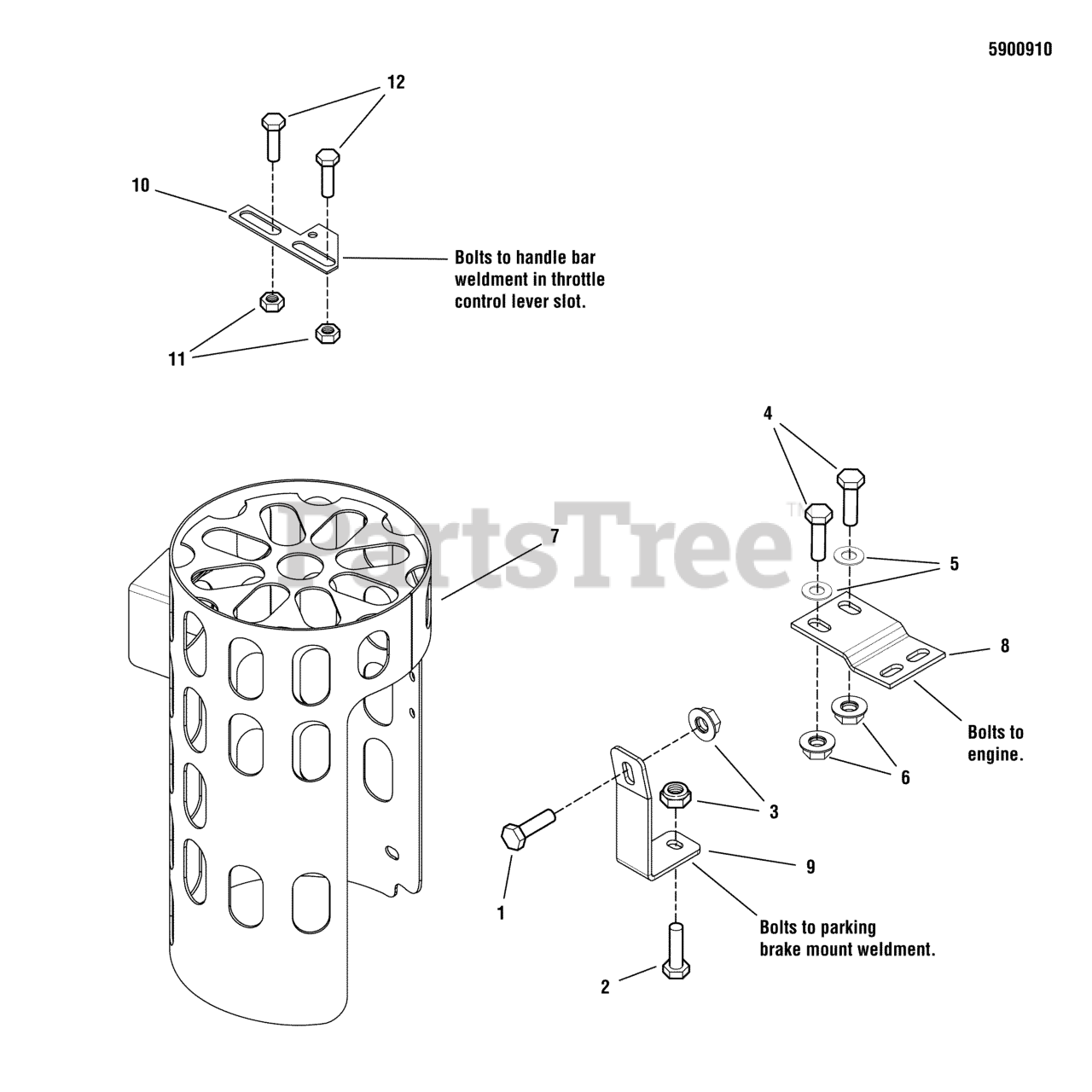

Guards & Covers Group Parts Diagram

  • Title

1

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

2

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

3

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

5

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 5

0

7

Snapper Pro 5404432D

WELD, MUFFLER GUARD - RED

$

$

Currently unavailable

8

Snapper Pro 5404435D

BRACKET, GUARD MOUNT - RED

$

$

Currently unavailable

9

Snapper Pro 5406234D

BRACKET, GUARD MOUNT, LOWER - RED

$

$

Currently unavailable

10

PLATE, THROTTLE STOP

$

$

Not available

11

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0
