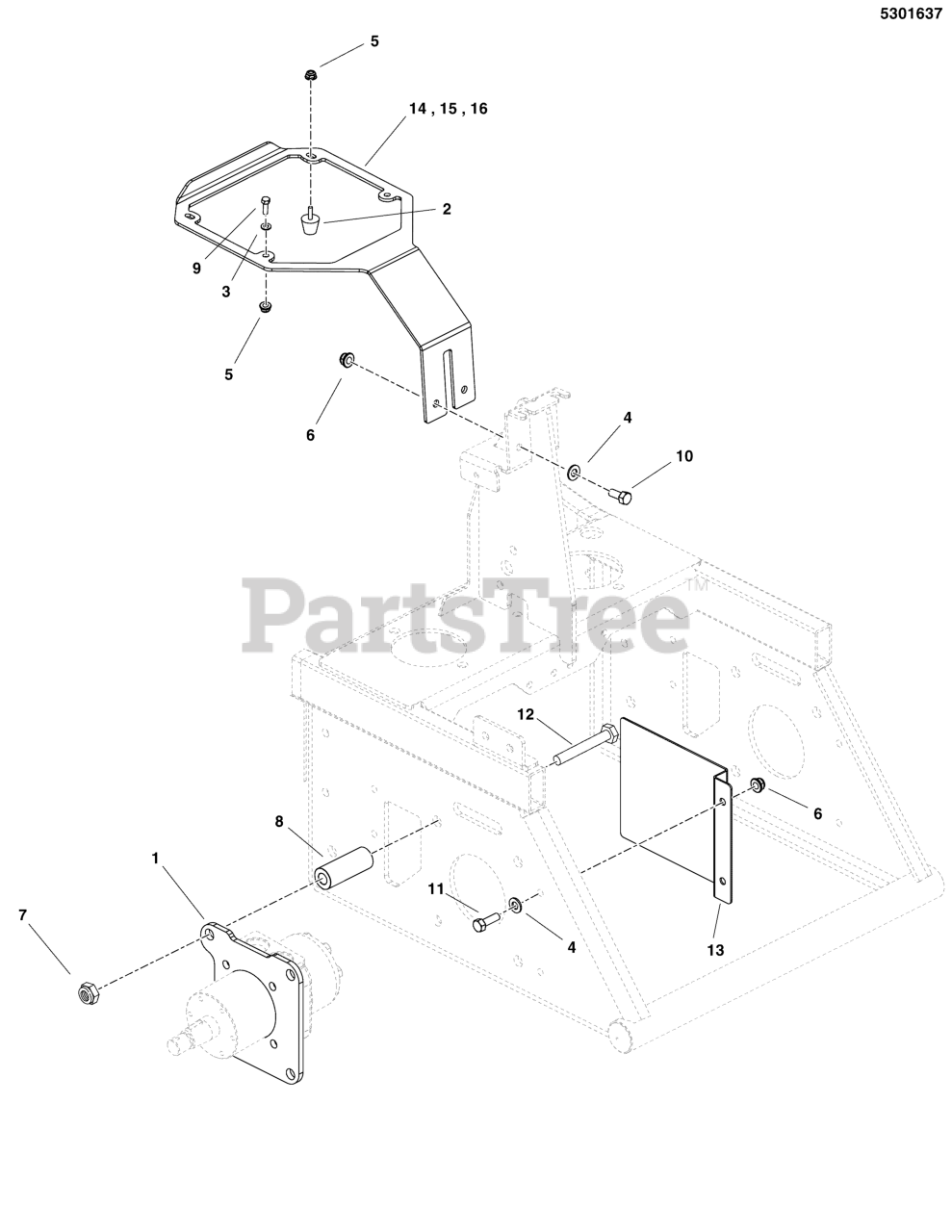

Evolution (5900834) - Ferris Evolution Series 48" Stand-On Mower, 20hp Kawasaki Hydraulic Mounts & Guards Group Parts Diagram

Evolution Series 48" Stand-On Mower, 20hp Kawasaki

Hydraulic Mounts & Guards Group Parts Diagram

  • Title

1

Ferris 5403409

PLATE, SPACER

$

$

Not available

2

Ferris 5022673

BUMPER, RUBBER 1/4-20
(Superseded to 5022673SM)

$18.99

$

In Stock, only 1 left!

0

3

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

4

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

5

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

6

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 5043607

SPACER, .50 X 1.00 X 2.00

$

$

Currently unavailable

9

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

10

Ferris 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

11

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

12

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 3 left!

0

13

Ferris 5404775B

PLATE, HEAT SHIELD, WHEEL MOTOR, 48-RED

$

$

Currently unavailable

14

Ferris 5405748B

PLATE, COOLER MOUNT BRACKET

Note: (FX730V Engines)

$

$

Currently unavailable

15

Ferris 5406009B

PLATE, COOLER MOUNT BRACKET

Note: (FX600V Engines)

$

$

Currently unavailable

16

Ferris 5405093B

PLATE, COOLER MOUNT BRACKET

Note: (FX751V Engines)

$

$

Currently unavailable
