Evolution (5900779) - Ferris Evolution Series 48" Stand-On Mower, 27hp Kawasaki 48" Mower Deck - Belts, Pulleys & Idler Arms Parts Diagram

Evolution Series 48" Stand-On Mower, 27hp Kawasaki

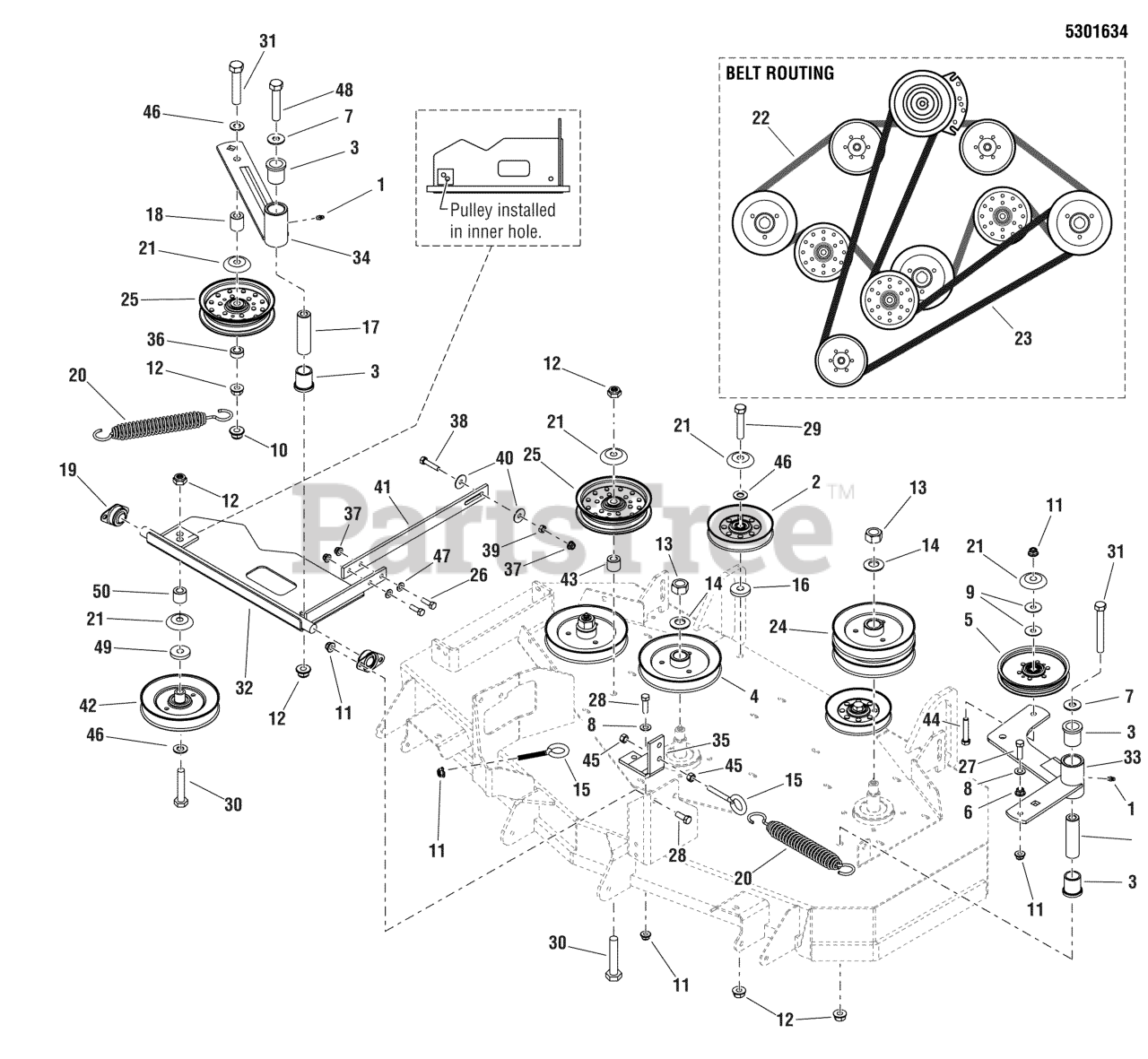

48" Mower Deck - Belts, Pulleys & Idler Arms Parts Diagram

  • Title

1

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

2

Ferris 5021097

PULLEY-IDLER-V, 4.85OB, .506ID, .94W,STL
(Superseded to 5021097SM)

$40.99

$

Usually ships in 2-12 days

0

3

Ferris 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 18

0

4

Ferris 5023175

PULLEY, 5.540OB X .985ID, SINGLE B-SEC
(Superseded to 5023175SM)

$67.99

$

In Stock, Qty 17

0

5

Ferris 5101193

PULLEY-IDLER, 5.00OD, .385ID, .75W, STL
(Superseded to 5101193YP)

$65.99

$

In Stock, only 2 left!

0

6

Ferris 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

In Stock, only 2 left!

0

7

Ferris 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

Usually ships in 2-12 days

0

8

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Ferris 5101964

WASHER, .390 X 1.38 X .109, YZ

$2.49

$

Usually ships in 2-12 days

0

10

Ferris 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, Qty 11

0

11

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

12

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

13

Ferris 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 20+

0

14

Ferris 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5025429

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C
(Superseded to 5025429SM)

$6.49

$

Usually ships in 2-12 days

0

16

Ferris 5044913

WASHER, .53 X 1.50 X .25
(Superseded to 5044913SM)

$6.99

$

In Stock, Qty 12

0

17

Ferris 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 2 left!

0

18

Ferris 5061781

SPACER, .52 X 1.00 X 1.15
(Superseded to 5061781FS)

$12.99

$

Usually ships in 2-12 days

0

19

Ferris 5100561

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5100561SM)

$14.99

$

In Stock, only 2 left!

0

20

Ferris 5100633

SPRING, EXTENSION, SWIVEL, SHORT HOOK
(Superseded to 5100633YP)

$34.99

$

Usually ships in 2-12 days

0

21

Ferris 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 20+

0

22

Ferris 5101121

BELT, BP-SEC, 94.10EL, LG ARAMID, WRPD

$79.99

$

In Stock, only 2 left!

0

23

Ferris 5101692

BELT, BP-SEC, 108.2EL, ARAMID, WRPD

$90.99

$

In Stock, only 1 left!

0

24

Ferris 5101793

PULLEY, DOUBLE, 5.54" OVER

$108.99

$

Usually ships in 2-12 days

0

25

Ferris 5101794

PULLEY, IDLER, 5" OD, 1"FACE, 5.75 FL
(Superseded to 5101794YP)

$57.99

$

In Stock, only 2 left!

0

26

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

27

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

28

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 5

0

29

Ferris 5025017X20

BOLT, 1/2-13 X 2-1/2" GD5 CZ
(Superseded to 5025017X20SM)

$5.49

$

In Stock, Qty 8

0

30

Ferris 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, Qty 11

0

31

Ferris 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0

32

Ferris 5404767B

WELD, IDLER MOUNT PLATE - RED

$148.99

$

In Stock, only 2 left!

0

33

Ferris 5600319

ASSM, IDLER ARM, EVO 48 (5404925B)

$151.99

$

Usually ships in 2-12 days

0

34

Ferris 5600318

ASSM, IDLER ARM, EVO 36 (5405003B)

$93.99

$

Usually ships in 2-12 days

0

35

Ferris 5403902B

WELD, ANCHOR EYEBOLT - RED

$

$

Currently unavailable

36

Ferris 5045023

SPACER, .52 X 1.00 X .44
(Superseded to 5045023SM)

$6.49

$

In Stock, only 1 left!

0

37

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

38

Ferris 5025011X12

BOLT, 5/16-18 X 1-1/2 GD5 YZ
(Superseded to 5025011X12SM)

$3.99

$

In Stock, only 2 left!

0

39

Ferris 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

Usually ships in 2-12 days

0

40

Ferris 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

In Stock, only 1 left!

0

41

Ferris 5404939B

BAR, 1/4 X 1.00 X 15.5

$12.99

$

Usually ships in 2-12 days

0

42

Ferris 5101996

PULLEY, 6" DEEP GROOVE, COMPENSATOR
(Superseded to 5101996FS)

$80.99

$

Usually ships in 2-12 days

0

43

Ferris 5044673

SPACER, .52 X 1.00 X .88
(Superseded to 5044673SM)

$8.99

$

In Stock, only 1 left!

0

44

Ferris 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

45

Ferris 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

46

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

47

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

48

Ferris 5025017X44

BOLT, 1/2-13 X 5-1/2 GD5 YZ
(Superseded to 5025017X44SM)

$7.99

$

In Stock, only 3 left!

0

49

Ferris 5100520

SPACER, .52 X 1.00 X .22, PM, CZ
(Superseded to 5100520SM)

$6.49

$

In Stock, only 2 left!

0

50

Ferris 5045178

SPACER, .52 X 1.00 X .75
(Superseded to 5045178SM)

$7.49

$

In Stock, Qty 6

0
