Evolution (5900778) - Ferris Evolution Series 36" Stand-On Mower, 19hp Kawasaki 36" Mower Deck - Housing, Spindles & Blades Group Parts Diagram

Evolution Series 36" Stand-On Mower, 19hp Kawasaki

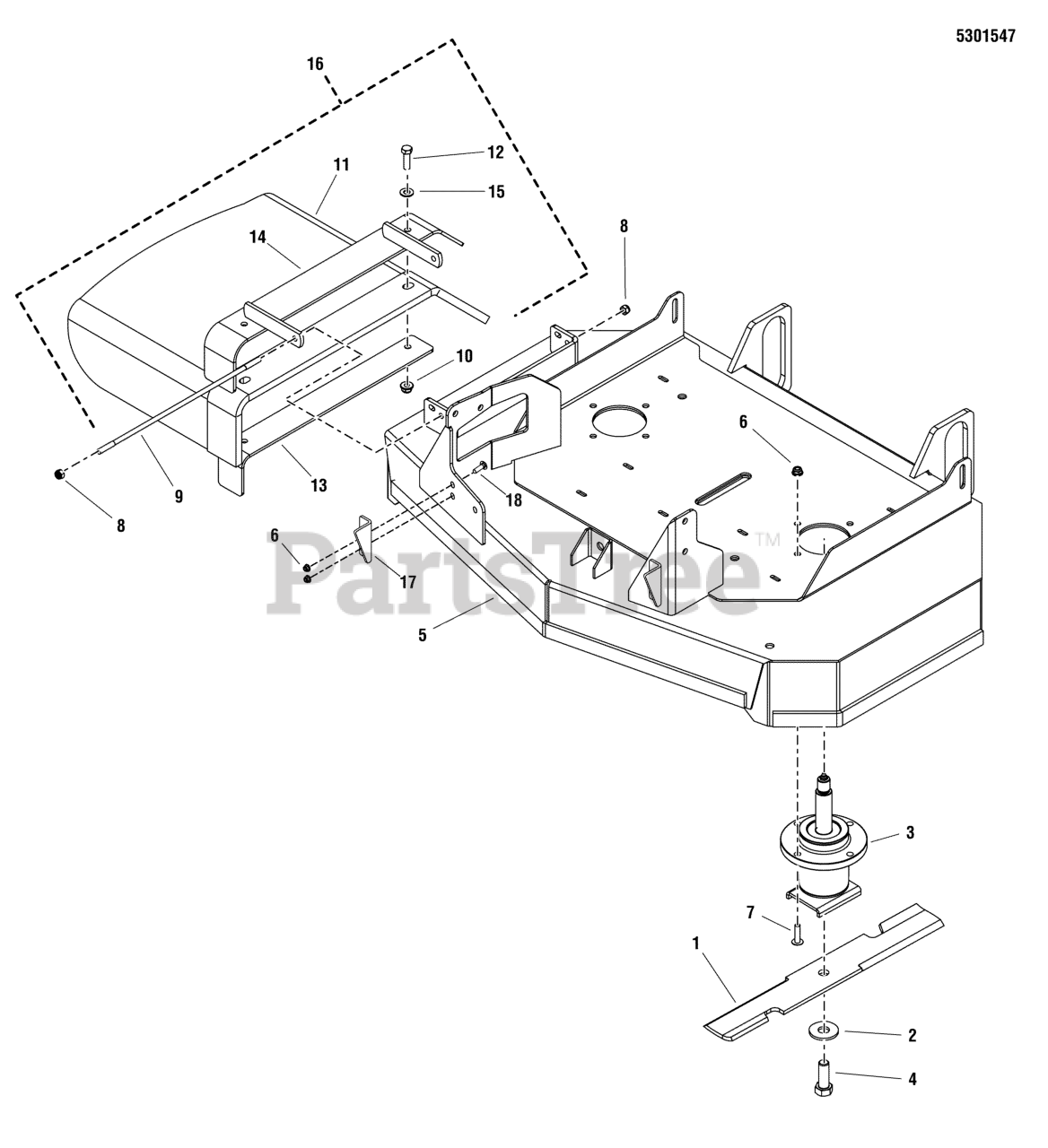

36" Mower Deck - Housing, Spindles & Blades Group Parts Diagram

  • Title
1

Ferris 5021227X2

BLADE SET, 36 DECK (2)

Note: (SET OF TWO)

$53.99

$

Usually ships in 2-12 days

0

2

Ferris 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 11

0

3

Ferris 5061175

ASSM, SPINDLE, BLADE SADDLE

$308.99

$

Usually ships in 2-12 days

0

4

Ferris 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

5

Ferris 5600308

DECK SHELL W/ DECALS, 36, EVOLUTION

$1196.99

$

Usually ships in 2-12 days

0

6

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

7

Ferris 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, only 1 left!

0

8

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

9

Ferris 5042555

ROD, 5/16 X 13.75, TBE
(Superseded to 5042555SM)

$10.99

$

Usually ships in 2-12 days

0

10

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

11

Ferris 5402404

CHUTE, DISCHARGE, RUBBER
(Superseded to 5402404FS)

$148.99

$

Usually ships in 2-12 days

0

12

Ferris 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, Qty 12

0

13

Ferris 5402362A

SUPPORT, DISCHARGE CHUTE, 44/48/52 - BLK
(Superseded to 5402362AFS)

$35.99

$

Usually ships in 2-12 days

0

14

Ferris 5413404A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413404AAFS)

$50.99

$

In Stock, only 1 left!

0

15

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

16

Ferris 5600088B

DISCHARGE CHUTE ASSEMBLY

$

$

Currently unavailable

17

Ferris 5405103B

PLATE, DECK STOP, EVO 48 - RED

$

$

Currently unavailable

18

Ferris 5025145X8

BOLT, 5/16-18 X 1, CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0
