EVD4010 ADV/B (EZCW) - Honda Generator RV Type, Made in Japan (SN: EZCW-1010001 - EZCW-1099999) TIMING BELT + WATER PUMP Parts Diagram

Generator RV Type, Made in Japan

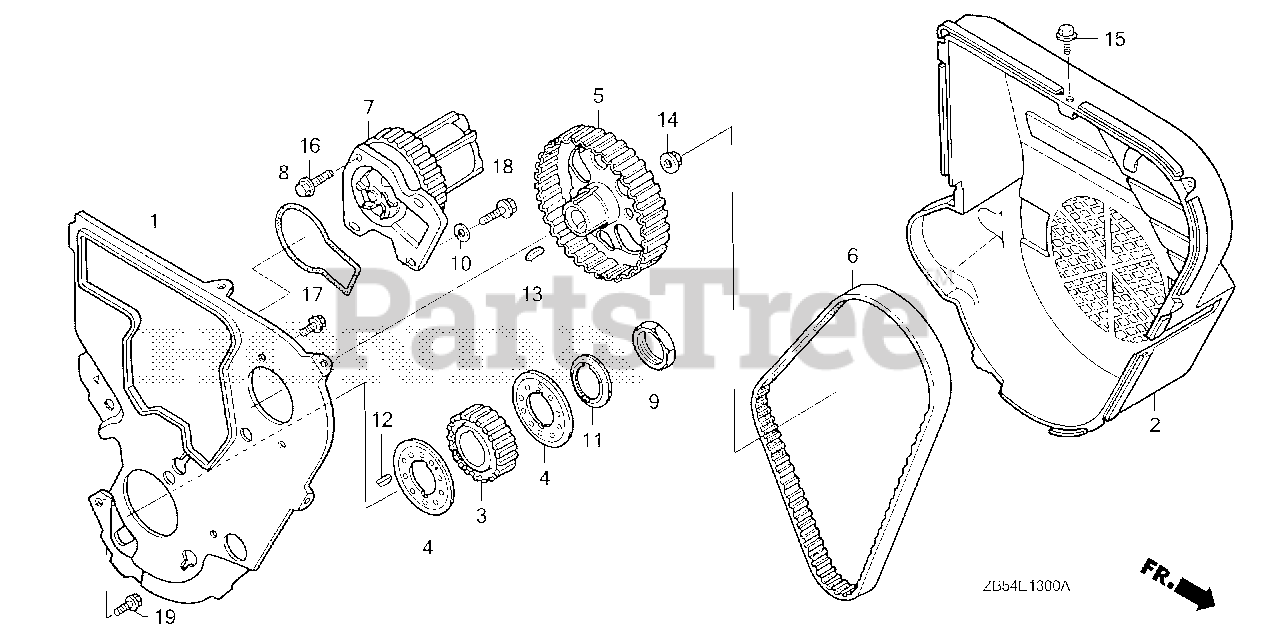

TIMING BELT + WATER PUMP Parts Diagram

  • Title

1

Honda 11810-ZA0-Y10

COVER B, TIMING BELT

$130.99

$

Usually ships in 3-6 days

0

2

Honda 11820-ZA0-980

COVER A, TIMING BELT

$162.99

$

Usually ships in 3-6 days

0

3

Honda 14311-ZA0-005

PULLEY, TIMING

$45.99

$

Usually ships in 3-6 days

0

4

Honda 14312-ZA0-000

FLANGE, TIMING PULLEY

$6.49

$

Usually ships in 3-6 days

0

5

Honda 14320-ZA0-701

PULLEY, CAMSHAFT

$105.99

$

Usually ships in 3-6 days

0

6

Honda 14400-ZA0-003

BELT, TIMING

$66.99

$

In Stock, only 1 left!

0

7

Honda 19200-ZA0-010

SEE PART DETAILS - SUP; WATER PUMP
(Superseded to 19200-ZA0-020)

$226.99

$

In Stock, only 1 left!

0

7

Honda 19200-ZA0-020

SEE PART DETAILS - PRI; WATER PUMP

$226.99

$

In Stock, only 1 left!

0

8

Honda 19222-ZA0-004

O-RING, WATER PUMP

$6.49

$

In Stock, Qty 11

0

9

Honda 90202-ZA0-000

NUT, LOCK (30MM)

$10.99

$

Usually ships in 3-6 days

0

10

Honda 90401-ZA0-000

WASHER, PLAIN (6.5X15)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 90451-ZA0-000

WASHER, LOCK (30MM)

$5.49

$

Usually ships in 3-6 days

0

12

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18)

$3.99

$

In Stock, Qty 17

0

13

Honda 90741-969-000

KEY, WOODRUFF (16X12)

$

$

Not available

14

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

15

Honda 95701-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

16

Honda 95701-06022-08

BOLT, FLANGE (6X22)

$2.49

$

Usually ships in 3-6 days

0

17

Honda 96001-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 5

0

18

Honda 96001-06022-00

BOLT, FLANGE (6X22)

$1.99

$

In Stock, only 3 left!

0

19

Honda 92101-06010-0A

BOLT, HEX. (6X10)

$1.99

$

Usually ships in 3-6 days

0
