EVD4010 ADV/A (EZCW) - Honda Generator RV Type, Made in Japan (SN: EZCW-1000161 - EZCW-1009999) STARTER MOTOR (2) Parts Diagram

Generator RV Type, Made in Japan

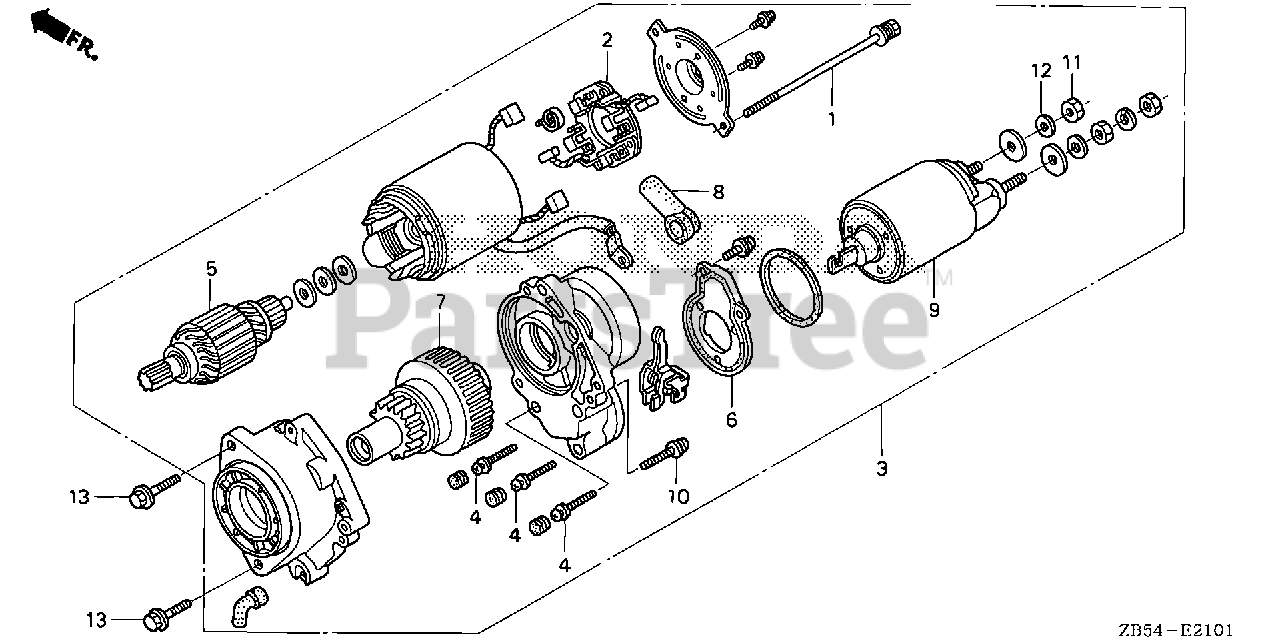

STARTER MOTOR (2) Parts Diagram

  • Title

1

Honda 31202-P1R-004

BOLT, SETTING

Note: Use from Engine SN 1326842.

$16.99

$

Usually ships in 3-6 days

0

2

Honda 31208-PCA-902

STAY ASSY., BRUSH (N/A FOR USA: SEE ASSEMBLY)

Note: Use from Engine SN 1326842.

$125.99

$

Usually ships in 3-6 days

0

3

Honda 31210-ZA0-984

STARTER MOTOR ASSY.

Note: Use from Engine SN 1326842.

$861.99

$

Usually ships in 3-6 days

0

4

Honda 31217-PC2-006

SCREW-WASHER (4X28) (MITSUBA)

Note: Use from Engine SN 1326842.

$5.99

$

Usually ships in 3-6 days

0

5

Honda 31217-ZA0-981

ARMATURE ASSY.

Note: Use from Engine SN 1326842.

$228.99

$

Usually ships in 3-6 days

0

6

Honda 31228-ZA0-003

PLATE, FR.

Note: Use from Engine SN 1326842.

$31.99

$

Usually ships in 3-6 days

0

7

Honda 31230-ZA0-981

GEAR ASSY.

Note: Use from Engine SN 1326842.

$470.99

$

Usually ships in 3-6 days

0

8

Honda 31235-ZA0-981

COVER, TERMINAL

Note: Use from Engine SN 1326842.

$7.99

$

Usually ships in 3-6 days

0

9

Honda 31240-ZA0-981

SWITCH ASSY.
(Superseded to 31240-ZA0-982)

Note: Use from Engine SN 1326842.

$280.99

$

Usually ships in 3-6 days

0

10

Honda 93892-06025-08

SCREW-WASHER (6X25)

Note: Use from Engine SN 1326842.

$1.99

$

Usually ships in 3-6 days

0

11

Honda 94002-08000-0S

NUT, HEX. (8MM)

Note: Use from Engine SN 1326842.

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94111-08800

WASHER, SPRING (8MM)

Note: Use from Engine SN 1326842.

$1.49

$

Usually ships in 3-6 days

0

13

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

Note: Use from Engine SN 1326842.

$2.49

$

In Stock, only 3 left!

0
