EVD4010 ADV/A (EZCW) - Honda Generator RV Type, Made in Japan (SN: EZCW-1000161 - EZCW-1009999) FRAME Parts Diagram

Generator RV Type, Made in Japan

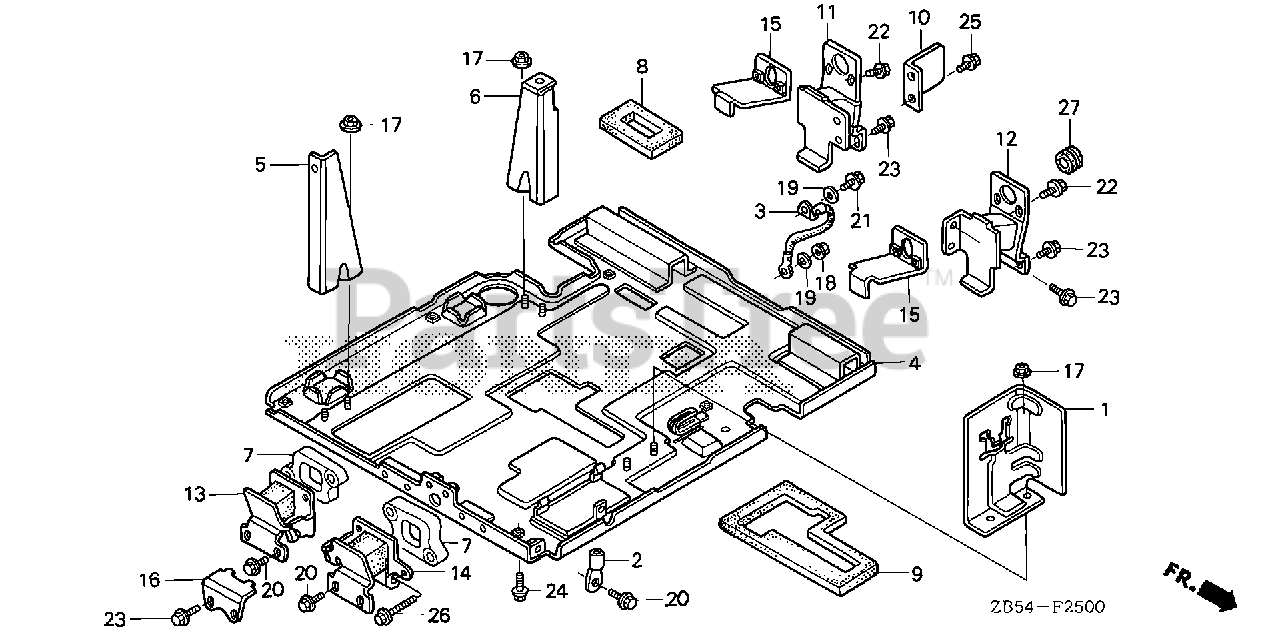

FRAME Parts Diagram

  • Title
1

Honda 19108-ZB5-010

SUPPORT, RESERVE TANK

$27.99

$

Usually ships in 3-6 days

0

2

Honda 32113-ZB5-000

TERMINAL, LA (8MM)

$6.99

$

Usually ships in 3-6 days

0

3

Honda 32610-ZB5-000

WIRE, GROUND

$18.99

$

Usually ships in 3-6 days

0

4

Honda 50310-ZB5-020

BED, FRAME

$481.99

$

Usually ships in 3-6 days

0

5

Honda 50311-ZB5-000

STAND, R. SHROUD

$28.99

$

Usually ships in 3-6 days

0

6

Honda 50312-ZB5-000

STAND, L. SHROUD

$28.99

$

Usually ships in 3-6 days

0

7

Honda 50823-ZB5-600

SPACER, GENERATOR MOUNTING

$36.99

$

Usually ships in 3-6 days

0

8

Honda 63323-ZB5-000

SEAL, MOTOR STAY

$6.99

$

Usually ships in 3-6 days

0

9

Honda 63324-ZB5-800

SEAL, FR. HOUSING

$16.99

$

Usually ships in 3-6 days

0

10

Honda 68321-ZB5-000

STOPPER, ENGINE MOUNT SIDE

$11.99

$

Usually ships in 3-6 days

0

11

Honda 68323-ZB5-010

RUBBER, R. FR. MOUNT

$

$

Not available

12

Honda 68324-ZB5-010

RUBBER, L. FR. MOUNT

$75.99

$

Usually ships in 3-6 days

0

13

Honda 68326-ZB5-010

RUBBER, R. RR. MOUNT

$75.99

$

Usually ships in 3-6 days

0

14

Honda 68327-ZB5-010

RUBBER, L. RR. MOUNT

$75.99

$

Usually ships in 3-6 days

0

15

Honda 68328-ZB5-000

STOPPER, ENGINE MOUNT RUBBER

$18.99

$

Usually ships in 3-6 days

0

16

Honda 68329-ZB5-000

STOPPER, GENERATOR MOUNT

$

$

Not available

17

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

19

Honda 90502-895-003

WASHER, STAR

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 7

0

21

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 1 left!

0

22

Honda 95701-06016-00

BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 5

0

23

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 7

0

24

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 7

0

25

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 5

0

26

Honda 95701-08045-00

BOLT, FLANGE (8X45)

$1.99

$

In Stock, Qty 20+

0

27

Honda 50623-473-000

RUBBER B, STEP MOUNTING

$

$

Not available
