EVD4010 ADV/A (EZCW) - Honda Generator RV Type, Made in Japan (SN: EZCW-1000161 - EZCW-1009999) CYLINDER HEAD Parts Diagram

Generator RV Type, Made in Japan

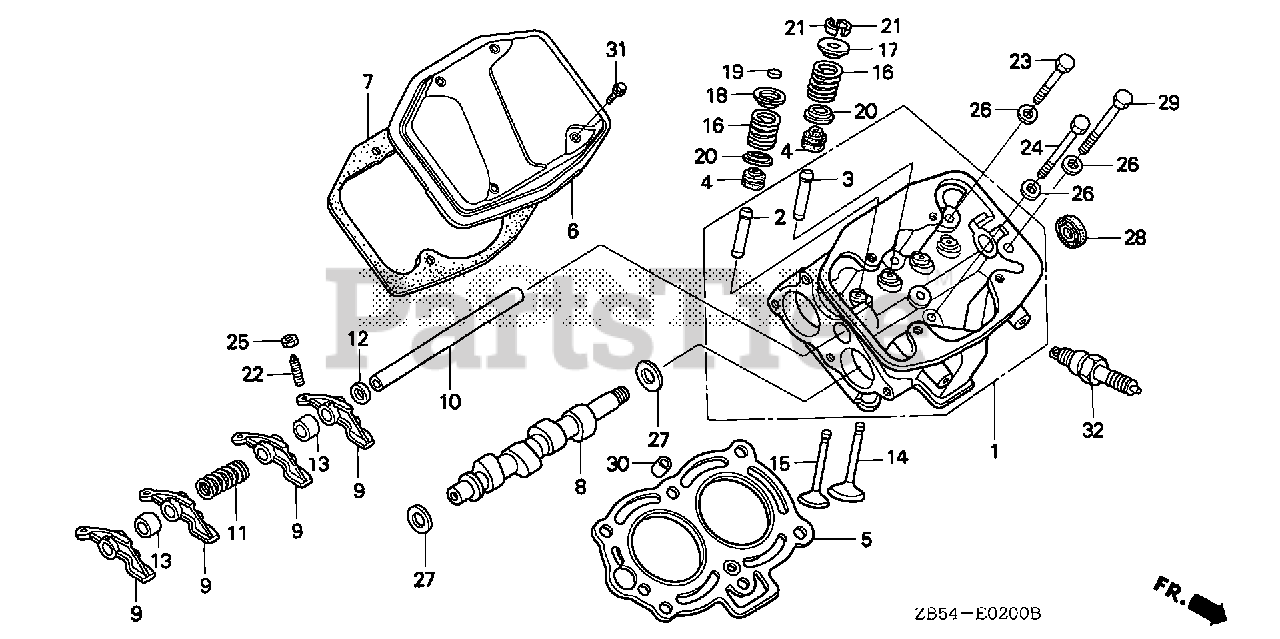

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 122A0-ZA0-702

CYLINDER HEAD

$

$

Not available

2

Honda 12204-ZA0-315

SEE PART DETAILS - PRI; GUIDE, EX. VALVE (OVER SIZE)

$14.99

$

In Stock, only 1 left!

0

3

Honda 12205-ZA0-306

GUIDE, VALVE (OVER SIZE)

$16.99

$

Usually ships in 3-6 days

0

4

Honda 12209-422-005

SEAL, VALVE STEM

$18.99

$

In Stock, only 2 left!

0

5

Honda 12251-ZA0-800

GASKET, CYLINDER HEAD

$70.99

$

In Stock, only 1 left!

0

6

Honda 12310-ZA0-700

COVER, CYLINDER HEAD

$61.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZA0-800

GASKET, HEAD COVER

$15.99

$

Usually ships in 3-6 days

0

8

Honda 14101-ZA0-701

CAMSHAFT

$167.99

$

Usually ships in 3-6 days

0

9

Honda 14431-ZA0-010

ARM, VALVE ROCKER

$19.99

$

Usually ships in 3-6 days

0

10

Honda 14451-881-000

SHAFT, VALVE ROCKER ARM

$22.99

$

Usually ships in 3-6 days

0

11

Honda 14481-881-000

SPRING, VALVE ROCKER ARM

$6.49

$

Usually ships in 3-6 days

0

12

Honda 14482-881-000

COLLAR A, VALVE ROCKER ARM

$3.99

$

Usually ships in 3-6 days

0

13

Honda 14483-881-000

COLLAR B, VALVE ROCKER ARM

$4.49

$

Usually ships in 3-6 days

0

14

Honda 14711-ZA0-003

VALVE, IN.

$20.99

$

Usually ships in 3-6 days

0

15

Honda 14721-ZA0-013

SEE PART DETAILS - PRI; VALVE, EX.

$40.99

$

Usually ships in 3-6 days

0

16

Honda 14753-921-010

SPRING, VALVE

$5.99

$

Usually ships in 3-6 days

0

17

Honda 14771-881-000

RETAINER, VALVE SPRING

$5.49

$

In Stock, only 2 left!

0

18

Honda 14771-935-810

RETAINER, VALVE SPRING

$10.99

$

Usually ships in 3-6 days

0

19

Honda 14772-881-000

ROTATOR, VALVE

$4.99

$

Usually ships in 3-6 days

0

20

Honda 14775-921-000

SEAT, VALVE SPRING

$2.49

$

In Stock, only 4 left!

0

21

Honda 14781-001-004

COTTER, VALVE

$7.99

$

Usually ships in 3-6 days

0

22

Honda 90012-333-000

SCREW, TAPPET ADJUSTING

$3.99

$

In Stock, only 4 left!

0

23

Honda 90017-935-000

BOLT, HEAD (8X70)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90019-881-000

BOLT, HEX. (8X55)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 90206-001-000

NUT, TAPPET ADJUSTING

$2.49

$

In Stock, only 4 left!

0

26

Honda 90402-822-000

WASHER, HEAD (8MM)

$1.99

$

Usually ships in 3-6 days

0

27

Honda 90453-235-000

WASHER, THRUST (16MM)

$2.49

$

In Stock, only 4 left!

0

28

Honda 91206-921-000

OIL SEAL (16X28X6)

$8.99

$

Usually ships in 3-6 days

0

29

Honda 92201-08100-0H

BOLT, HEX. (8X100)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

31

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$0.99

$

Usually ships in 3-6 days

0

32

Honda 98076-54747

SPARK PLUG (BPR4HS) (NGK)

$3.49

$

In Stock, only 3 left!

0
