EV6010 FA/A (ECB) - Honda Generator RV Type, Made in Japan (SN: ECB-1008383 - ECB-1099999) STARTER MOTOR (1) Parts Diagram

Generator RV Type, Made in Japan

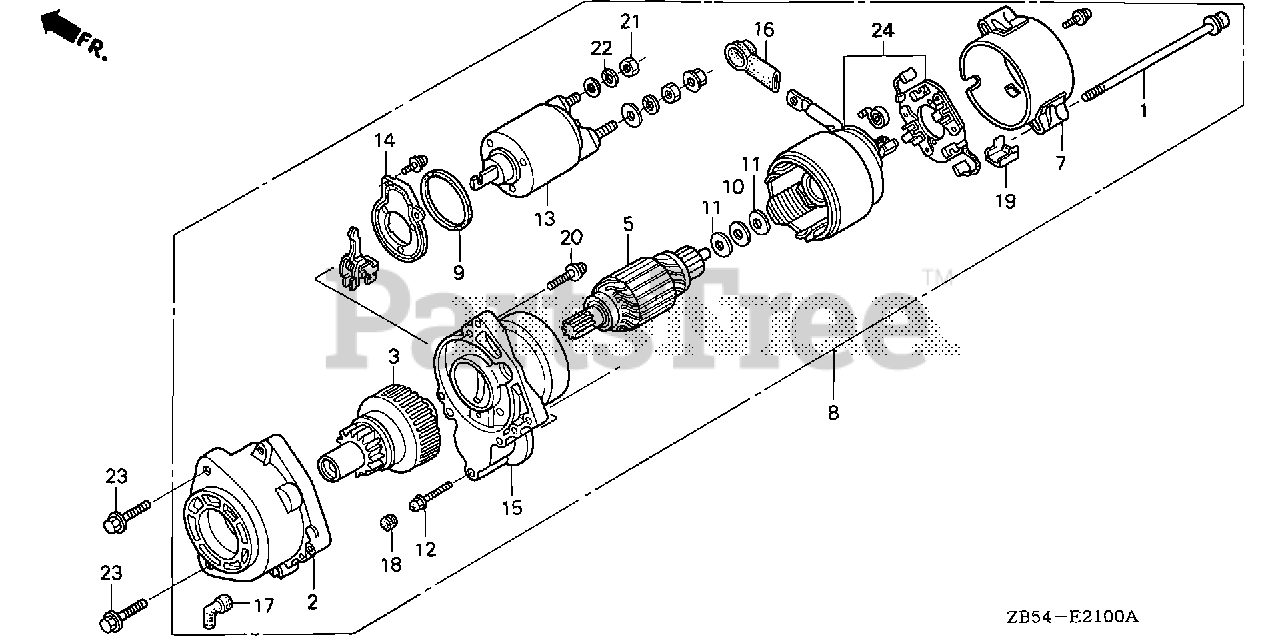

STARTER MOTOR (1) Parts Diagram

  • Title

1

Honda 31202-PC2-006

BOLT, THROUGH (MITSUBA)

$

$

Currently unavailable

2

Honda 31203-ZA0-981

COVER, GEAR

$148.99

$

Usually ships in 3-6 days

0

3

Honda 31204-ZA0-981

GEAR ASSY.

$

$

Not available

5

Honda 31207-PC2-016

ARMATURE (MITSUBA) (N/A: SEE ASSEMBLY)

$

$

Currently unavailable

7

Honda 31209-ZA0-981

BRACKET ASSY., RR.

$

$

Not available

8

Honda 31210-ZA0-983

STARTER MOTOR ASSY.
(Superseded to 31210-ZA0-984)

$804.99

$

Usually ships in 3-6 days

0

9

Honda 31211-PC2-006

RING, SQUARE (MITSUBA) (NOT AVAILABLE)

$

$

Not available

10

Honda 31215-PC2-006

WASHER, THRUST (1.2) (MITSUBA)

$

$

Currently unavailable

11

Honda 31216-PD1-003

WASHER, THRUST (0.2)

$5.49

$

Usually ships in 3-6 days

0

12

Honda 31217-PC2-006

SCREW-WASHER (4X28) (MITSUBA) (Honda Code 1359322).

$5.99

$

Usually ships in 3-6 days

0

13

Honda 31220-ZA0-982

SWITCH ASSY.

$

$

Not available

14

Honda 31228-ZA0-981

PLATE, FR. (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 31229-ZA0-981

BRACKET ASSY., FR.

$140.99

$

Usually ships in 3-6 days

0

16

Honda 31235-PD2-016

SEE PART DETAILS - SUP; COVER, TERMINAL (Honda Code 1963537).

$

$

Currently unavailable

17

Honda 31251-ZA0-981

TUBE, LABYRINTH

$

$

Not available

18

Honda 31252-PD2-006

SEE PART DETAILS - SUP; BUSH, RUBBER (Honda Code 1565969).

$

$

Not available

19

Honda 31253-ZA0-981

COVER, DRAIN

$

$

Not available

20

Honda 93892-06030-18

SCREW-WASHER (6X30)

$

$

Currently unavailable

21

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0156075).

$1.99

$

Usually ships in 3-6 days

0

22

Honda 94111-08800

SEE PART DETAILS - PRI; WASHER, SPRING (8MM) (Honda Code 0260331).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 1 left!

0

24

Honda 31260-ZA0-000

STATOR SET

$

$

Not available
