EV6010 AC/A (ECB) - Honda Generator RV Type, Made in Japan (SN: ECB-1008383 - ECB-1019999) EXHAUST MANIFOLD Parts Diagram

Generator RV Type, Made in Japan

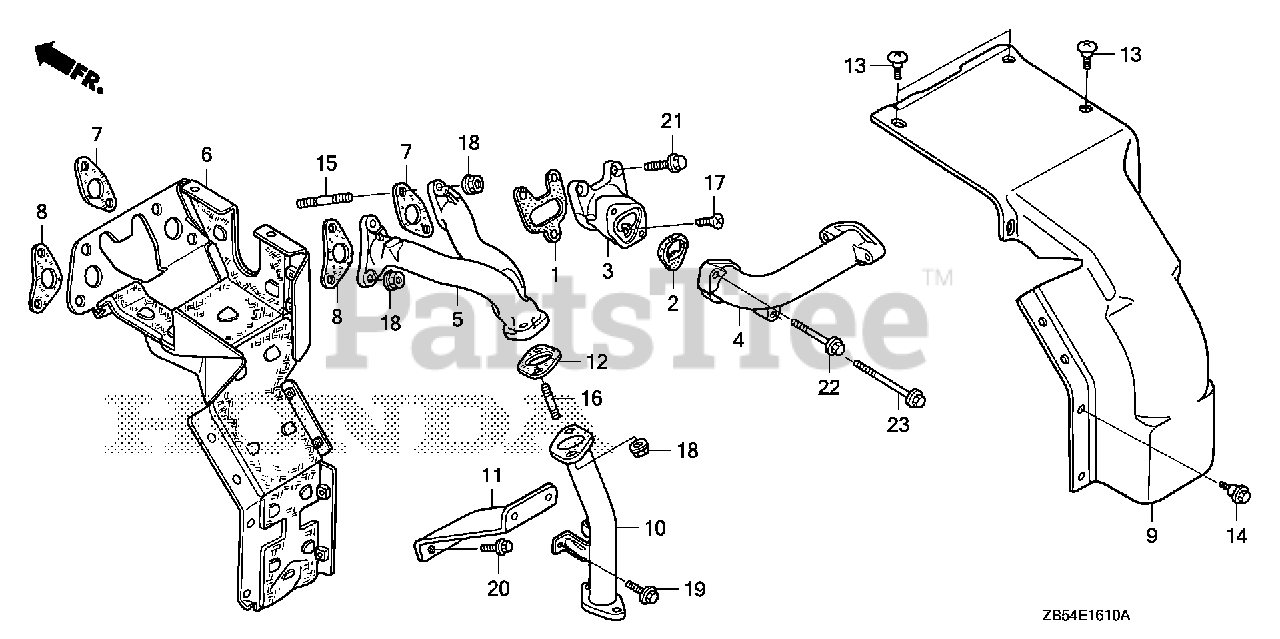

EXHAUST MANIFOLD Parts Diagram

  • Title

1

Honda 16226-ZA0-D21

GASKET, IN. MANIFOLD

Note: Use from Engine SN 1353674.

$5.49

$

Usually ships in 3-6 days

0

1

Honda 16226-ZA0-800

SEE PART DETAILS - PRI; GASKET, IN. MANIFOLD (Honda Code 4527792).

Note: Use up to Engine SN 1353673.

$3.49

$

In Stock, only 2 left!

0

2

Honda 16227-ZA0-980

GASKET, ELBOW

$6.99

$

Usually ships in 3-6 days

0

3

Honda 17100-ZA0-980

ELBOW, IN. MANIFOLD

$49.99

$

Usually ships in 3-6 days

0

4

Honda 17150-ZA0-980

MANIFOLD, IN.

$88.99

$

Usually ships in 3-6 days

0

5

Honda 18100-ZA0-980

MANIFOLD, EX.

$189.99

$

Usually ships in 3-6 days

0

6

Honda 18210-ZA0-983

COVER, EX. IN.

$225.99

$

Usually ships in 3-6 days

0

7

Honda 18215-ZA0-820

GASKET B, EX. PIPE

$9.49

$

Usually ships in 3-6 days

0

8

Honda 18216-ZA0-800

GASKET A, EX. PIPE

$7.99

$

Usually ships in 3-6 days

0

9

Honda 18251-ZA0-983

COVER, EX. OUTLET

$225.99

$

Usually ships in 3-6 days

0

10

Honda 18330-ZA0-980

PIPE, EX.

$76.99

$

Usually ships in 3-6 days

0

11

Honda 18335-ZA0-980

STAY, EX. PIPE

$23.99

$

Usually ships in 3-6 days

0

12

Honda 18381-889-800

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4357596).

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90107-KR0-000

BOLT, FAIRING (6MM)

$5.49

$

Usually ships in 3-6 days

0

14

Honda 90111-187-000

BOLT, FLANGE (6MM)

$8.99

$

Usually ships in 3-6 days

0

15

Honda 92900-08022-0B

BOLT, STUD (8X22) (Honda Code 1411610).

$2.99

$

Usually ships in 3-6 days

0

16

Honda 92900-08025-1B

BOLT, STUD (8X25)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 93700-06025-0A

SCREW, OVAL (6X25)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 15

0

19

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

20

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, Qty 9

0

21

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

22

Honda 95701-06030-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X30) (Honda Code 2401222).

$2.49

$

In Stock, only 4 left!

0

23

Honda 95701-06055-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X55) (Honda Code 2533834).

$2.99

$

In Stock, only 4 left!

0
