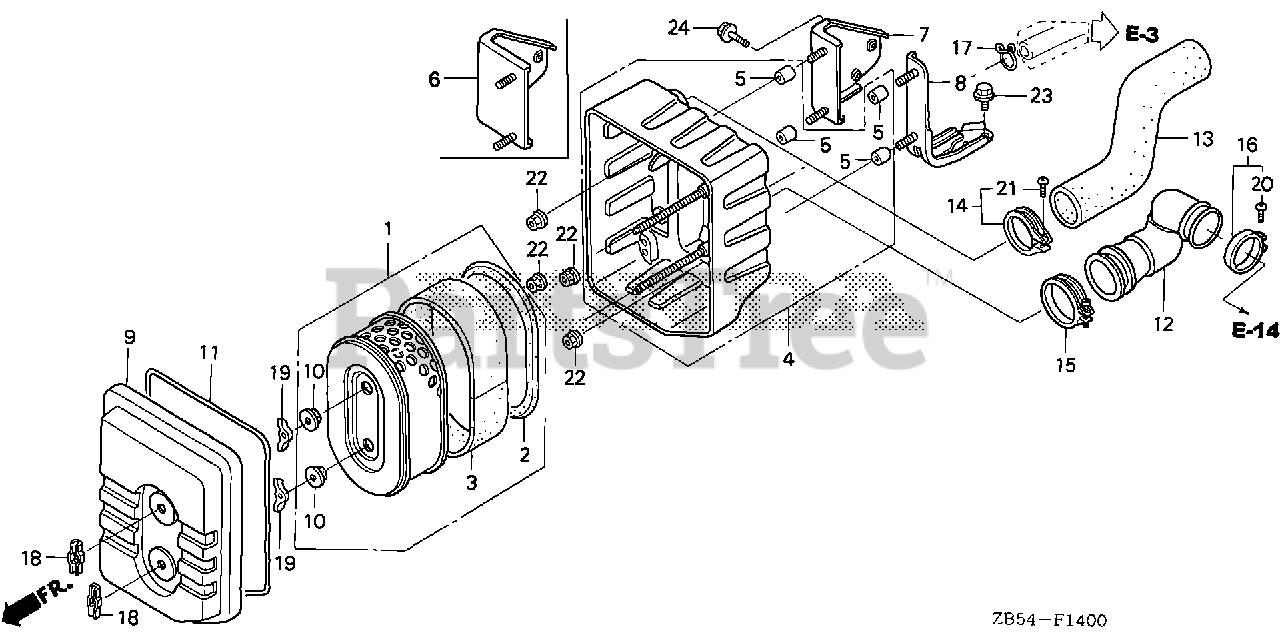

EV6010 AC/A (ECB) - Honda Generator RV Type, Made in Japan (SN: ECB-1008383 - ECB-1019999) AIR CLEANER Parts Diagram

Generator RV Type, Made in Japan

AIR CLEANER Parts Diagram

  • Title

1

Honda 17211-ZB5-003

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-ZB5-505)

$53.99

$

In Stock, only 1 left!

0

2

Honda 17217-ZB5-003

GASKET, AIR CLEANER

$16.99

$

Usually ships in 3-6 days

0

3

Honda 17218-ZB5-003

FILTER (OUTER)

$

$

Not available

4

Honda 17220-ZB5-013

HOUSING, AIR CLEANER

$89.99

$

Usually ships in 3-6 days

0

5

Honda 17221-KA4-300

COLLAR, CONNECTING TUBE SETTING

$3.49

$

Usually ships in 3-6 days

0

6

Honda 17222-ZB5-013

STAY A, AIR CLEANER (6K.V.A)

$28.99

$

Usually ships in 3-6 days

0

8

Honda 17223-ZB5-013

STAY B, AIR CLEANER

$23.99

$

Usually ships in 3-6 days

0

9

Honda 17231-ZB5-013

SEE PART DETAILS - PRI; COVER, AIR CLEANER

$

$

Not available

10

Honda 17232-891-000

GROMMET, AIR CLEANER (Honda Code 0999763).

$5.99

$

In Stock, Qty 15

0

11

Honda 17222-MN4-405

SEAL, AIR CLEANER COVER

$10.99

$

Usually ships in 3-6 days

0

12

Honda 17251-ZB5-000

TUBE, AIR CLEANER CONNECTING

$48.99

$

Usually ships in 3-6 days

0

13

Honda 17252-ZB5-000

TUBE, AIR CLEANER IN.

$42.99

$

Usually ships in 3-6 days

0

14

Honda 17255-GN1-000

BAND, AIR CLEANER CONNECTING TUBE

$11.99

$

Usually ships in 3-6 days

0

15

Honda 17255-HB2-003

BAND, AIR CLEANER CONNECTING TUBE

$10.99

$

Usually ships in 3-6 days

0

16

Honda 17255-ZA0-000

BAND, CONNECTING TUBE (Honda Code 1355072).

$10.99

$

Usually ships in 3-6 days

0

17

Honda 17369-KB4-670

CLIP, BREATHER TUBE

$7.49

$

In Stock, only 1 left!

0

18

Honda 90203-ZA0-800

WINGNUT (6MM) (Honda Code 1742238).

$4.49

$

In Stock, only 2 left!

0

19

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

20

Honda 93500-04016-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X26) (Honda Code 0173682).

$1.49

$

In Stock, Qty 7

0

21

Honda 93500-04020-0G

SCREW, PAN (4X20)

$1.49

$

Usually ships in 3-6 days

0

22

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

23

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

24

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 7

0
