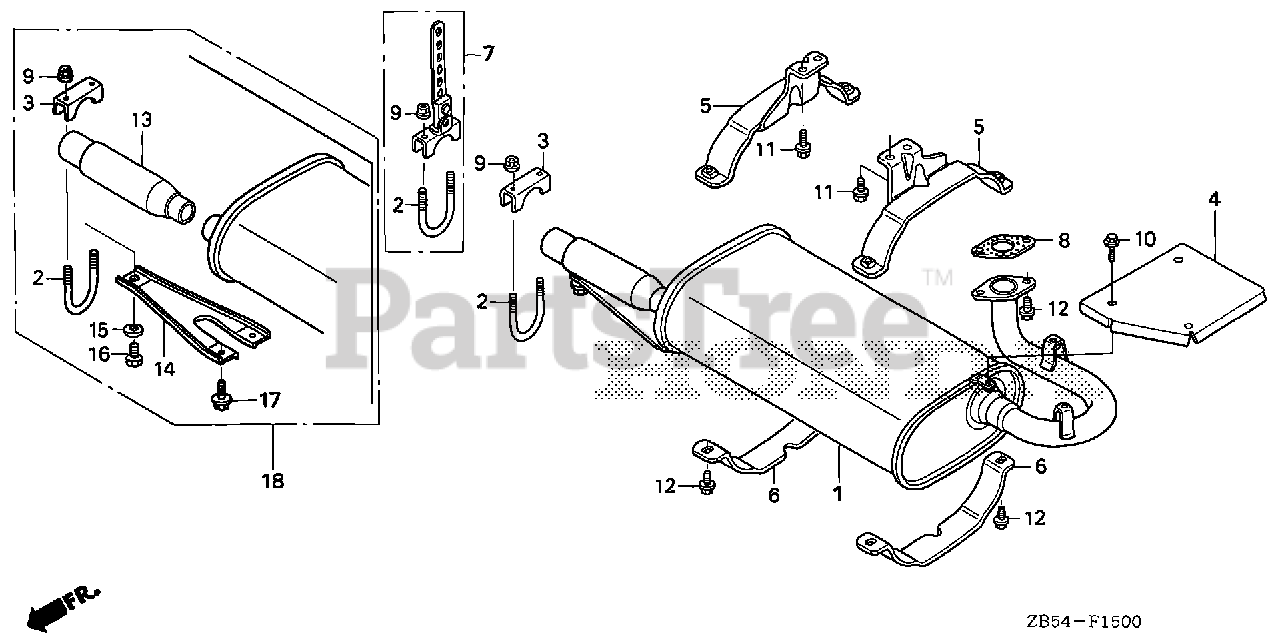

EV6010 A (ECB) - Honda Generator RV Type, Made in Japan (SN: ECB-1000001 - ECB-1099999) MUFFLER (1) Parts Diagram

Generator RV Type, Made in Japan

MUFFLER (1) Parts Diagram

  • Title

1

Honda 18310-ZB5-014

MUFFLER

Note: Use up to Frame SN 1002236.

$448.99

$

Usually ships in 3-6 days

0

2

Honda 18323-ZB5-000

BOLT, MUFFLER TAIL PIPE

Note: Use up to Frame SN 1002236.

$14.99

$

Usually ships in 3-6 days

0

2

Honda 18323-ZB5-000

BOLT, MUFFLER TAIL PIPE

Note: Use from Frame SN 1002237.

$14.99

$

Usually ships in 3-6 days

0

3

Honda 18324-ZB5-000

CLAMP, MUFFLER TAIL PIPE

Note: Use up to Frame SN 1002236.

$17.99

$

Usually ships in 3-6 days

0

3

Honda 18324-ZB5-830

CLAMP, MUFFLER TAIL PIPE

Note: Use from Frame SN 1002237.

$16.99

$

Usually ships in 3-6 days

0

4

Honda 18325-ZB5-000

PROTECTOR, EX. PIPE (NOT AVAILABLE)

Note: Use up to Frame SN 1002236.

$

$

Currently unavailable

5

Honda 18338-ZB5-000

STAY, MUFFLER

$44.99

$

Usually ships in 3-6 days

0

6

Honda 18339-ZB5-000

SUPPORT, MUFFLER

$27.99

$

Usually ships in 3-6 days

0

7

Honda 18340-ZB5-000

BRACKET ASSY., MUFFLER TAIL PIPE

$66.99

$

Usually ships in 3-6 days

0

8

Honda 18381-ZA0-800

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4210878).

$6.49

$

Usually ships in 3-6 days

0

9

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

Note: Use up to Frame SN 1002236.

$1.49

$

In Stock, Qty 20+

0

9

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

Note: Use from Frame SN 1002237.

$1.49

$

In Stock, Qty 20+

0

10

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: Use up to Frame SN 1002236.

$2.49

$

In Stock, Qty 19

0

11

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 7

0

12

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 1 left!

0

13

Honda 18350-ZB5-004

ARRESTER, SPARK

Note: Use from Frame SN 1002237.

$79.99

$

Usually ships in 3-6 days

0

14

Honda 18521-ZB5-004

BRACKET A, MUFFLER

Note: Use from Frame SN 1002237.

$20.99

$

Usually ships in 3-6 days

0

15

Honda 90508-VM6-003

WASHER, PLAIN (10MM)

Note: Use from Frame SN 1002237.

$

$

Not available

16

Honda 92000-10012-0G

BOLT, HEX. (10X12)

Note: Use from Frame SN 1002237.

$

$

Currently unavailable

17

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: Use from Frame SN 1002237.

$2.49

$

In Stock, Qty 19

0

18

Honda 18310-ZB5-014

MUFFLER

Note: Use from Frame SN 1002237.

$448.99

$

Usually ships in 3-6 days

0
