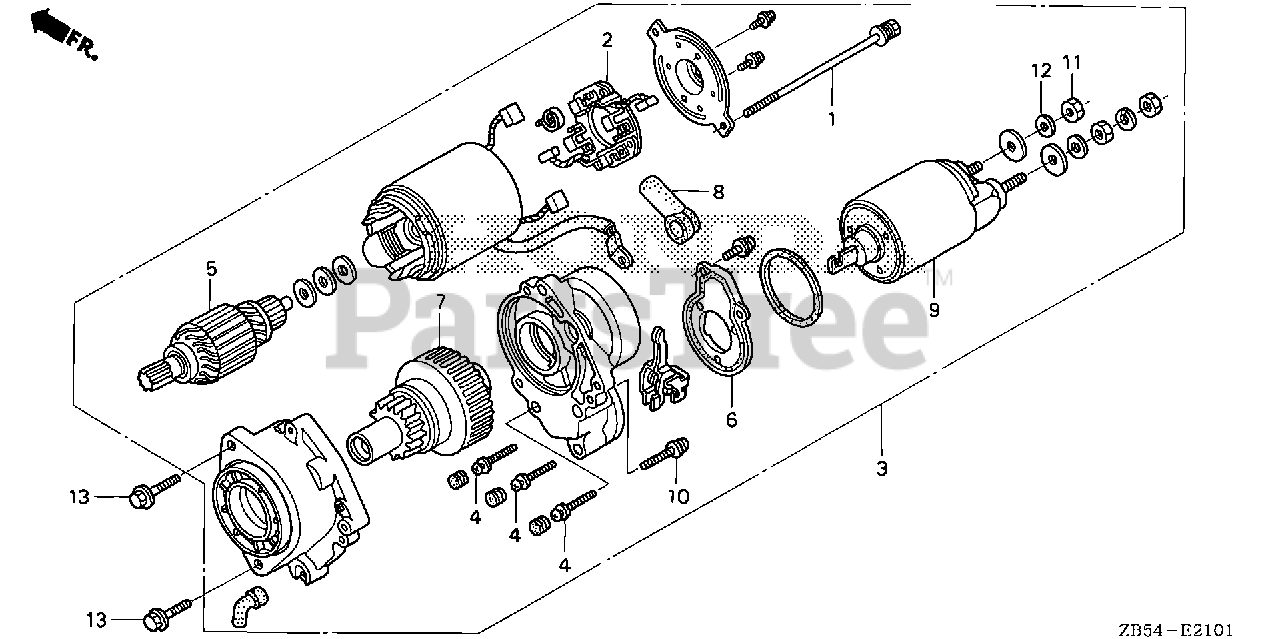

EV4010 AC/A (ECA) - Honda Generator RV Type, Made in Japan (SN: ECA-1007536 - ECA-1019999) STARTER MOTOR (2) Parts Diagram

Generator RV Type, Made in Japan

STARTER MOTOR (2) Parts Diagram

  • Title

1

Honda 31202-P1R-004

BOLT, SETTING

$16.99

$

Usually ships in 3-6 days

0

2

Honda 31208-PCA-902

STAY ASSY., BRUSH (N/A FOR USA: SEE ASSEMBLY)

$125.99

$

Usually ships in 3-6 days

0

3

Honda 31210-ZA0-983

STARTER MOTOR ASSY.
(Superseded to 31210-ZA0-984)

$804.99

$

Usually ships in 3-6 days

0

4

Honda 31217-PC2-006

SCREW-WASHER (4X28) (MITSUBA) (Honda Code 1359322).

$5.99

$

Usually ships in 3-6 days

0

5

Honda 31217-ZA0-981

ARMATURE ASSY.

$208.99

$

Usually ships in 3-6 days

0

6

Honda 31228-ZA0-003

PLATE, FR.

$28.99

$

Usually ships in 3-6 days

0

7

Honda 31230-ZA0-981

GEAR ASSY.

$430.99

$

Usually ships in 3-6 days

0

8

Honda 31235-ZA0-981

COVER, TERMINAL

$7.49

$

Usually ships in 3-6 days

0

9

Honda 31240-ZA0-982

SWITCH ASSY.

$257.99

$

Usually ships in 3-6 days

0

10

Honda 93892-06025-08

SCREW-WASHER (6X25)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 94002-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0156075).

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94111-08800

SEE PART DETAILS - PRI; WASHER, SPRING (8MM) (Honda Code 0260331).

$1.49

$

Usually ships in 3-6 days

0

13

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 1 left!

0
