EV4010 A (ECA) - Honda Generator RV Type, Made in Japan (SN: ECA-1000001 - ECA-1099999) CONTROL BOX (1) Parts Diagram

Generator RV Type, Made in Japan

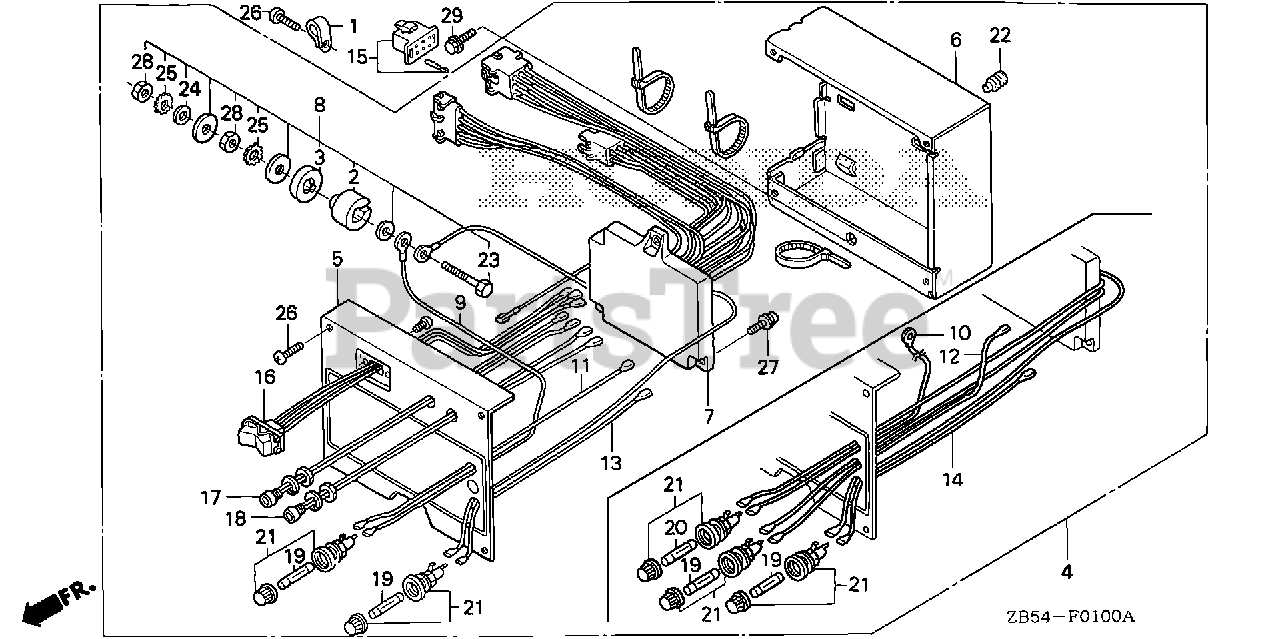

CONTROL BOX (1) Parts Diagram

  • Title

1

Honda 30569-895-000

CLAMP F, CABLE

$4.99

$

Usually ships in 3-6 days

0

2

Honda 31211-895-300

COLLAR A, D.C. TERMINAL

$15.99

$

Usually ships in 3-6 days

0

3

Honda 31213-895-300

COLLAR B, D.C. TERMINAL

$6.49

$

Usually ships in 3-6 days

0

4

Honda 31400-ZB5-631ZA

BOX ASSY., CONTROL *NH192M* (GENTLY SILVER METALLIC) (N/A: USE ALTERNATE PART 31400-ZB5-831ZA)

Note: Use up to Frame SN 1001354.

$

$

Currently unavailable

4

Honda 31400-ZB5-632ZA

BOX ASSY., CONTROL *NH192M* (GENTLY SILVER METALLIC) (NA USE ALT:31400-ZB5-831ZA)

Note: Use from Frame SN 1001355.

$

$

Currently unavailable

5

Honda 31420-ZB5-631ZA

PANEL, CONTROL *NH192M* (GENTLY SILVER METALLIC)

$

$

Not available

6

Honda 31425-ZB5-731

BOX, CONTROL

$38.99

$

Usually ships in 3-6 days

0

7

Honda 31450-ZB5-731

CONTROL ASSY. (USE ALTERNATE PART 31400-ZB5-831ZA)

Note: Use up to Frame SN 1001354.

$

$

Currently unavailable

7

Honda 31450-ZB5-732

CONTROL ASSY. (NOT AVAILABLE)

Note: Use from Frame SN 1001355.

$

$

Not available

8

Honda 31520-ZB5-000

TERMINAL SET, BATTERY

$44.99

$

Usually ships in 3-6 days

0

9

Honda 31561-ZB5-731

WIRE A, FUSE HOLDER

Note: Use up to Frame SN 1001354.

$

$

Not available

10

Honda 31561-ZB5-732

WIRE A, FUSE HOLDER

Note: Use from Frame SN 1001355.

$11.99

$

Usually ships in 3-6 days

0

11

Honda 31562-ZB5-731

WIRE B, FUSE HOLDER

Note: Use up to Frame SN 1001354.

$

$

Not available

12

Honda 31562-ZB5-732

WIRE B, FUSE HOLDER

Note: Use from Frame SN 1001355.

$6.99

$

Usually ships in 3-6 days

0

13

Honda 31563-ZB5-731

WIRE C, FUSE HOLDER

Note: Use up to Frame SN 1001354.

$

$

Not available

14

Honda 31563-ZB5-732

WIRE C, FUSE HOLDER

Note: Use from Frame SN 1001355.

$6.99

$

Usually ships in 3-6 days

0

15

Honda 06560-ZB5-000AH

SEE PART DETAILS - SUP; CONNECTOR ASSY., PLUG
(Superseded to 06560-ZB5-100AH)

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

15

Honda 06560-ZB5-100AH

SEE PART DETAILS - PRI; CONNECTOR ASSY., PLUG

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

16

Honda 36120-ZB5-003

SWITCH, ENGINE

$

$

Not available

17

Honda 37560-ZB5-731

SOCKET ASSY., LAMP (GREEN)

$42.99

$

Usually ships in 3-6 days

0

18

Honda 37570-ZB5-731

SOCKET ASSY., LAMP (RED)

$42.99

$

Usually ships in 3-6 days

0

19

Honda 38201-ZB5-630

FUSE (3A)

Note: Use up to Frame SN 1001354.

$

$

Not available

19

Honda 38201-ZB5-640

FUSE (4A)

Note: Use from Frame SN 1001355.

$15.99

$

Usually ships in 3-6 days

0

20

Honda 38202-ZB5-630

FUSE (10A) (NOT AVAILABLE)

Note: Use from Frame SN 1001355.

$

$

Not available

21

Honda 38211-ZB5-831

SEE PART DETAILS - PRI; HOLDER, FUSE

Note: Use up to Frame SN 1001354.

$30.99

$

In Stock, only 1 left!

0

21

Honda 38211-ZB5-831

SEE PART DETAILS - PRI; HOLDER, FUSE

Note: Use from Frame SN 1001355.

$30.99

$

In Stock, only 1 left!

0

22

Honda 80109-KR3-000

CUSHION, RR. FENDER

$3.49

$

Usually ships in 3-6 days

0

23

Honda 90102-895-000

BOLT, B.C. TERMINAL

$4.49

$

Usually ships in 3-6 days

0

24

Honda 90501-895-300

WASHER, D.C. TERMINAL

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90502-895-003

WASHER, STAR

$2.49

$

Usually ships in 3-6 days

0

26

Honda 93500-04012-0G

SCREW, PAN (4X12)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12) Use up to Engine SN 2056819.

$1.99

$

Usually ships in 3-6 days

0

27

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12) Use up to Engine SN 2056819.
(Superseded to 93893-04012-08)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 94002-08300-0S

NUT, HEX. (8MM)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0
