EV4000 A (EV4000) - Honda Generator, Made in Japan (SN: EV4000-1000001 - EV4000-9999999) FAN COVER + TOP COVER Parts Diagram

Generator, Made in Japan

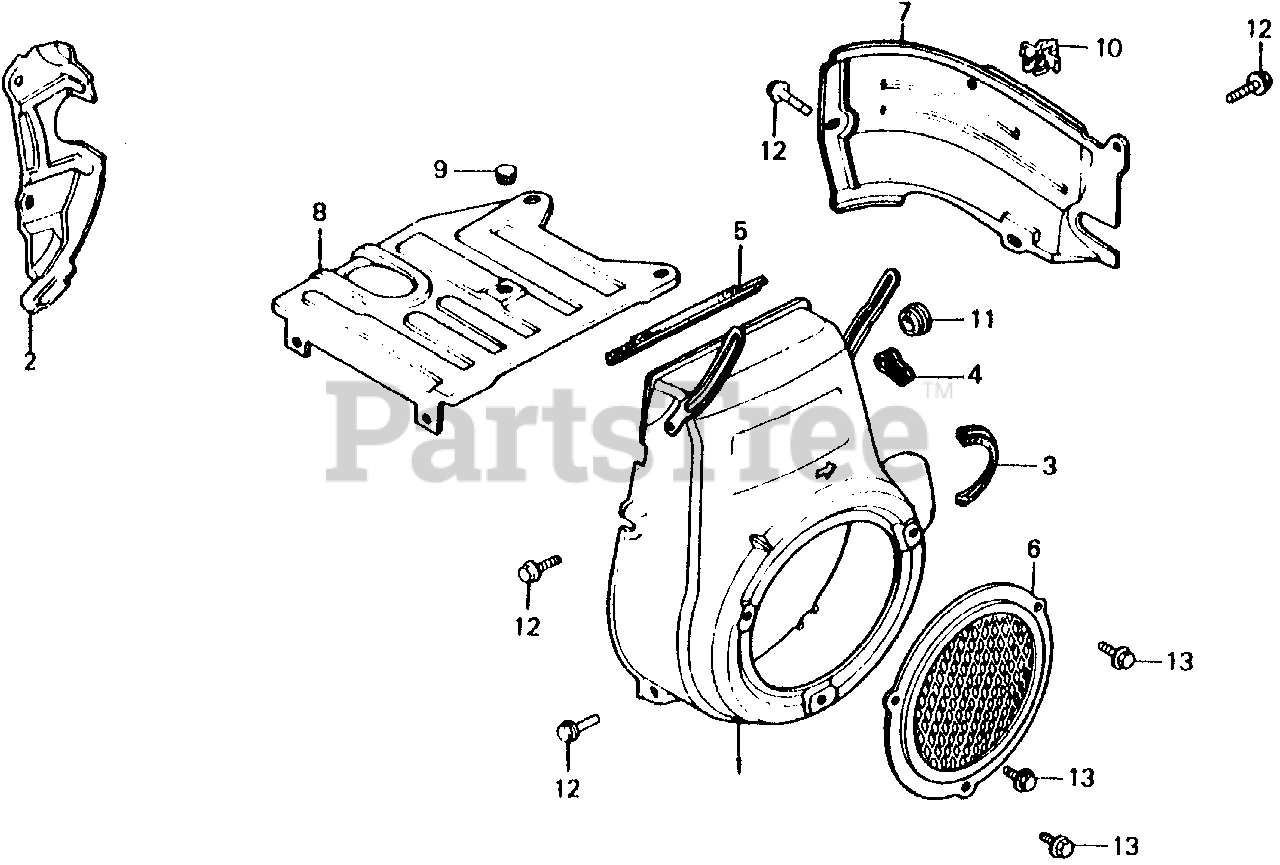

FAN COVER + TOP COVER Parts Diagram

  • Title

1

Honda 19610-890-670ZA

COVER, FAN *NH116M* (URBAN SILVER METALLIC)

$

$

Not available

2

Honda 19611-890-800

PLATE, SIDE

$

$

Not available

3

Honda 19613-890-670

SEAL A, FAN COVER

$

$

Not available

4

Honda 19614-889-730

GROMMET, FAN COVER

$

$

Not available

5

Honda 19614-890-670

SEAL B, FAN COVER

$

$

Not available

6

Honda 19620-890-670ZA

PROTECTOR, FAN COVER *NH116M* (URBAN SILVER METALLIC)

$

$

Not available

7

Honda 19631-890-670ZA

SHROUD

$

$

Not available

8

Honda 19641-890-010ZA

COVER, TOP *NH116M* (URBAN SILVER METALLIC)

$

$

Not available

9

Honda 19643-890-730

GROMMET, COVER

$

$

Not available

10

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

11

Honda 81329-567-020

GROMMET, DRAIN HOLE

$5.99

$

Usually ships in 3-6 days

0

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

13

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 7

0
