EV4000 A (EV4000) - Honda Generator, Made in Japan (SN: EV4000-1000001 - EV4000-9999999) CARBURETOR + CHOKE SOLENOID Parts Diagram

Generator, Made in Japan

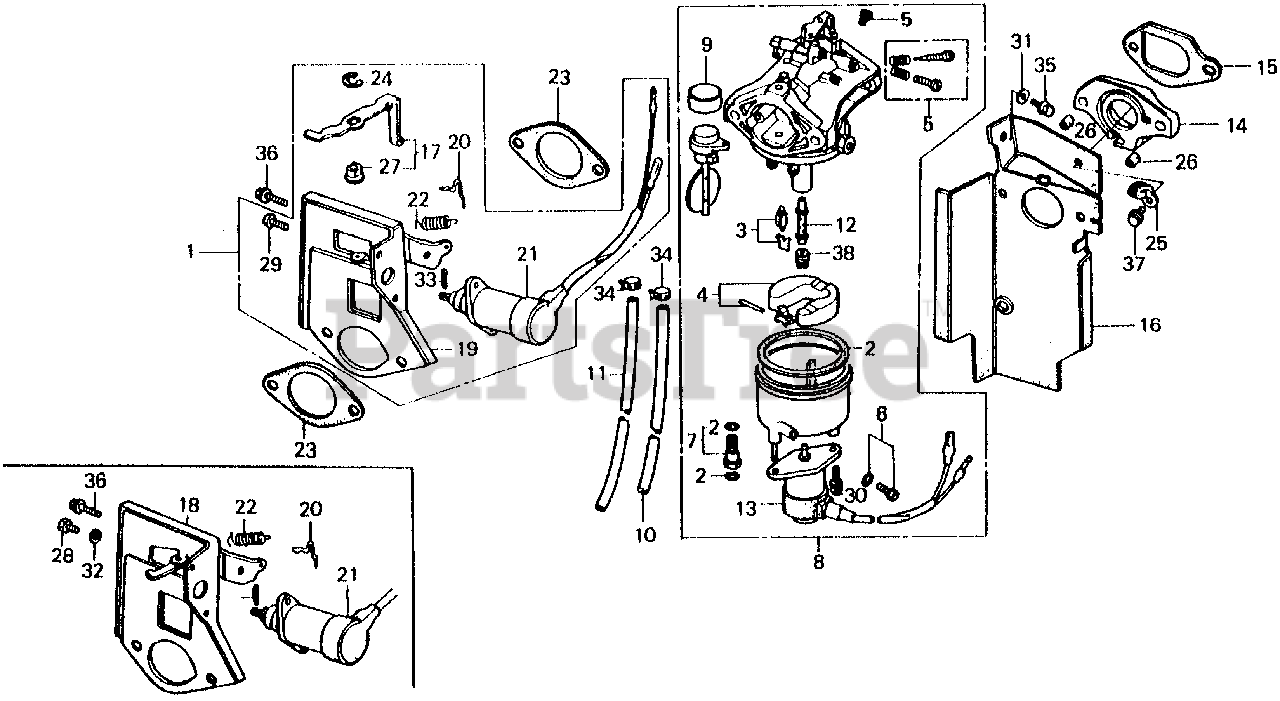

CARBURETOR + CHOKE SOLENOID Parts Diagram

  • Title

NI

Honda 16015-890-671

CHAMBER SET, FLOAT

Note: Use up to Engine SN BB39A D.

$

$

Not available

NI

Honda 16015-890-671

CHAMBER SET, FLOAT

Note: Use from Engine SN BB39A E.

$

$

Not available

1

Honda 06162-890-305

SEE PART DETAILS - SUP; STAY SET, SOLENOID
(Superseded to 06162-890-315)

Note: Use up to Engine SN 1331592.

$

$

Not available

1

Honda 06162-890-315

SEE PART DETAILS - PRI; STAY SET, SOLENOID

$

$

Not available

2

Honda 16010-890-733

SEE PART DETAILS - PRI; GASKET SET

Note: Use up to Engine SN BB39A D.

$27.99

$

In Stock, only 1 left!

0

2

Honda 16010-890-733

SEE PART DETAILS - PRI; GASKET SET

Note: Use from Engine SN BB39A E.

$27.99

$

In Stock, only 1 left!

0

3

Honda 16011-147-305

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-881-741)

$35.99

$

Usually ships in 3-6 days

0

3

Honda 16011-881-741

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$35.99

$

Usually ships in 3-6 days

0

4

Honda 16013-890-015

FLOAT SET

Note: Use up to Engine SN BB39A A.

$42.99

$

Usually ships in 3-6 days

0

4

Honda 16013-890-015

FLOAT SET

Note: Use from Engine SN BB39A B.

$42.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZA1-701

SCREW SET A

Note: Use from Engine SN BB39A E.

$13.99

$

Usually ships in 3-6 days

0

5

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A

Note: Use up to Engine SN BB39A D.

$

$

Currently unavailable

6

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN

$15.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZA0-931

SEE PART DETAILS - PRI; SCREW SET B

$30.99

$

In Stock, only 3 left!

0

8

Honda 16100-890-672

CARBURETOR ASSY. (BB39A A) (NOT AVAILABLE)

Note: Use up to Engine SN 1292831.

$

$

Currently unavailable

8

Honda 16100-890-673

CARBURETOR ASSY. (BB35A B/C) (NOT AVAILABLE)

Note: Use from Engine SN 1292832 to 1374034.

$

$

Currently unavailable

8

Honda 16100-890-674

CARBURETOR ASSY. (BB39A C/D) (NOT AVAILABLE)

Note: Use from Engine SN 1374035.

$

$

Currently unavailable

8

Honda 16100-890-675

CARBURETOR ASSY. (BB39A E) (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16148-141-881

CAP, CHOKE LEVER DUST

Note: Use from Engine SN BB39A B.

$7.49

$

Usually ships in 3-6 days

0

10

Honda 16150-890-670

TUBE, DRAIN

$

$

Not available

11

Honda 16151-890-670

TUBE, OVERFLOW

$

$

Not available

12

Honda 16166-890-005

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Not available

13

Honda 16200-890-005

VALVE ASSY., SOLENOID

$

$

Not available

14

Honda 16211-890-000

INSULATOR, CARBURETOR

$

$

Not available

15

Honda 16212-890-306

SEE PART DETAILS - SUP; GASKET, INSULATOR
(Superseded to 16212-890-800)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 16212-890-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$1.49

$

Usually ships in 3-6 days

0

16

Honda 16221-890-307

GASKET, CARBURETOR

$

$

Currently unavailable

17

Honda 16250-893-000

SEE PART DETAILS - SUP; LEVER, SOLENOID CHOKE

Note: Use from Engine SN 1331592 to 1364614.

$

$

Not available

17

Honda 16250-893-010

SEE PART DETAILS - PRI; LEVER, SOLENOID CHOKE

Note: Use from Engine SN 1331592.

$

$

Currently unavailable

18

Honda 06162-890-305

SEE PART DETAILS - SUP; STAY SET, SOLENOID
(Superseded to 06162-890-315)

Note: Use up to Engine SN 1331591.

$

$

Not available

18

Honda 06162-890-315

SEE PART DETAILS - PRI; STAY SET, SOLENOID

Note: Use up to Engine SN 1331591.

$

$

Not available

18

Honda 16260-890-671

SEE PART DETAILS - SUP; STAY, SOLENOID
(Superseded to 06162-890-315)

Note: Use up to Engine SN 1331591.

$

$

Not available

19

Honda 16261-890-671

STAY, SOLENOID

Note: Use from Engine SN 1331592.

$

$

Not available

20

Honda 16264-880-010

ROD, CHOKE

Note: Use up to Engine SN 1331591.

$

$

Not available

20

Honda 16264-880-030

ROD, CHOKE

Note: Use from Engine SN 1331592.

$

$

Not available

21

Honda 16265-880-023

SEE PART DETAILS - SUP; CHOKE, SOLENOID (N/A: USE ALTERNATE P/N 06162-ZA0-315)

Note: Use up to Engine SN 1331591.

$

$

Not available

21

Honda 16265-880-033

SEE PART DETAILS - PRI; CHOKE, SOLENOID (NA USE ALT:06162-ZA0-315)

Note: Use from Engine SN 1331592.

$

$

Not available

22

Honda 16268-890-670

SPRING, CHOKE RETURN

Note: Use up to Engine SN 1331591.

$

$

Currently unavailable

22

Honda 16268-893-000

SPRING, CHOKE RETURN

Note: Use from Engine SN 1331592.

$4.49

$

In Stock, Qty 11

0

23

Honda 16269-890-306

SEE PART DETAILS - SUP; GASKET, AIR CLEANER
(Superseded to 16269-890-800)

$1.99

$

In Stock, only 3 left!

0

23

Honda 16269-890-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

$1.99

$

In Stock, only 3 left!

0

24

Honda 38689-680-960

E-RING (4MM)

Note: Use from Engine SN 1331592.

$4.49

$

Usually ships in 3-6 days

0

25

Honda 91405-689-000

CLIP, WIRE HARNESS

$14.99

$

Usually ships in 3-6 days

0

26

Honda 91501-890-670

COLLAR, STUD BOLT (NOT AVAILABLE)

$

$

Not available

27

Honda 91502-ZA0-300

SEE PART DETAILS - SUP; BUSH, CHOKE LEVER
(Superseded to 91502-ZA0-310)

Note: Use from Engine SN 1331592 to 1364614.

$3.49

$

Usually ships in 3-6 days

0

27

Honda 91502-ZA0-310

SEE PART DETAILS - PRI; BUSH, CHOKE LEVER

Note: Use from Engine SN 1331592.

$3.49

$

Usually ships in 3-6 days

0

28

Honda 92101-05008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X8)

Note: Use up to Engine SN 1331591.

$1.49

$

Usually ships in 3-6 days

0

29

Honda 93500-05008-0A

SCREW, PAN (5X8)

Note: Use from Engine SN 1331592.

$1.49

$

In Stock, Qty 7

0

30

Honda 93892-05012-08

SCREW-WASHER (5X12)

$1.99

$

In Stock, Qty 13

0

31

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

32

Honda 94111-05000

WASHER, SPRING (5MM)

Note: Use up to Engine SN 1331591.

$1.99

$

Usually ships in 3-6 days

0

33

Honda 94201-16100

PIN, COTTER (1.6X10)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 95002-41000-08

CLIP, TUBE (D10)

$3.49

$

In Stock, only 3 left!

0

35

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

36

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

36

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

37

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

38

Honda 99101-124-0900

JET, MAIN (#90)

$12.99

$

Usually ships in 3-6 days

0

38

Honda 99101-124-0920

JET, MAIN (#92)

$12.99

$

Usually ships in 3-6 days

0

38

Honda 99101-124-0950

JET, MAIN (#95)

$14.99

$

Usually ships in 3-6 days

0
