EV4000 A (EV4000) - Honda Generator, Made in Japan (SN: EV4000-1000001 - EV4000-9999999) BRUSH HOLDER + GENERATOR END COVER Parts Diagram

Generator, Made in Japan

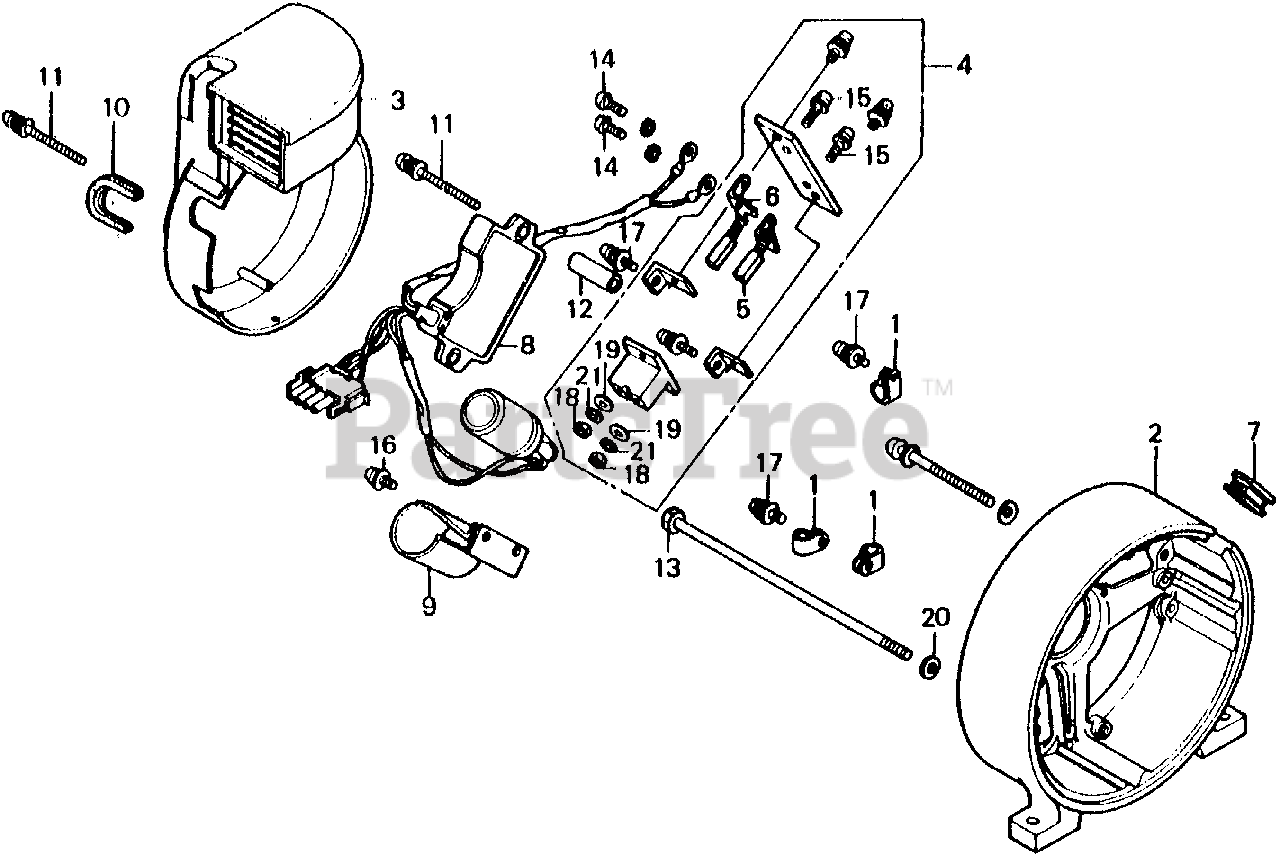

BRUSH HOLDER + GENERATOR END COVER Parts Diagram

  • Title
1

Honda 30564-895-000

CLAMP A, CABLE

$4.99

$

Usually ships in 3-6 days

0

2

Honda 31108-880-000XC

HOUSING, RR. *NH31* (MCKINLEY WHITE)

$

$

Currently unavailable

3

Honda 31113-895-681ZA

COVER, GENERATOR END *NH116M* (URBAN SILVER METALLIC)

$

$

Not available

4

Honda 31120-880-010

SEE PART DETAILS - PRI; HOLDER ASSY., BRUSH

$

$

Not available

4

Honda 31120-895-000

SEE PART DETAILS - SUP; HOLDER ASSY., BRUSH
(Superseded to 31120-880-010)

$

$

Not available

$31.99

$

In Stock, only 2 left!

0

$31.99

$

Usually ships in 3-6 days

0

7

Honda 31131-895-003

BUSH, RUBBER

$

$

Not available

8

Honda 31410-895-003

REGULATOR ASSY., AUTOMATIC VOLTAGE (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 31427-895-000

HOLDER, CONDENSER (NOT AVAILABLE)

$

$

Currently unavailable

10

$

$

Not available

11

Honda 90091-895-000

SCREW-WASHER (5X55)

$

$

Not available

12

Honda 91502-895-000

COLLAR (6.8X40)

$

$

Not available

13

Honda 92101-06190-0H

BOLT, HEX. (6X190) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

14

Honda 93500-04008-3J

SCREW, PAN (4X8)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 93891-04016-08

SCREW-WASHER (4X16)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 93891-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 2 left!

0

17

Honda 93893-05014-08

SCREW-WASHER (5X14)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94001-04080-0S

NUT, HEX. (4MM)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94101-04800

WASHER, PLAIN (4MM)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 94111-04800

WASHER, SPRING (4MM)

$1.49

$

Usually ships in 3-6 days

0
