EV3550x4NA - Murray Edger (2006) Wheel Assembly Parts Diagram

Edger

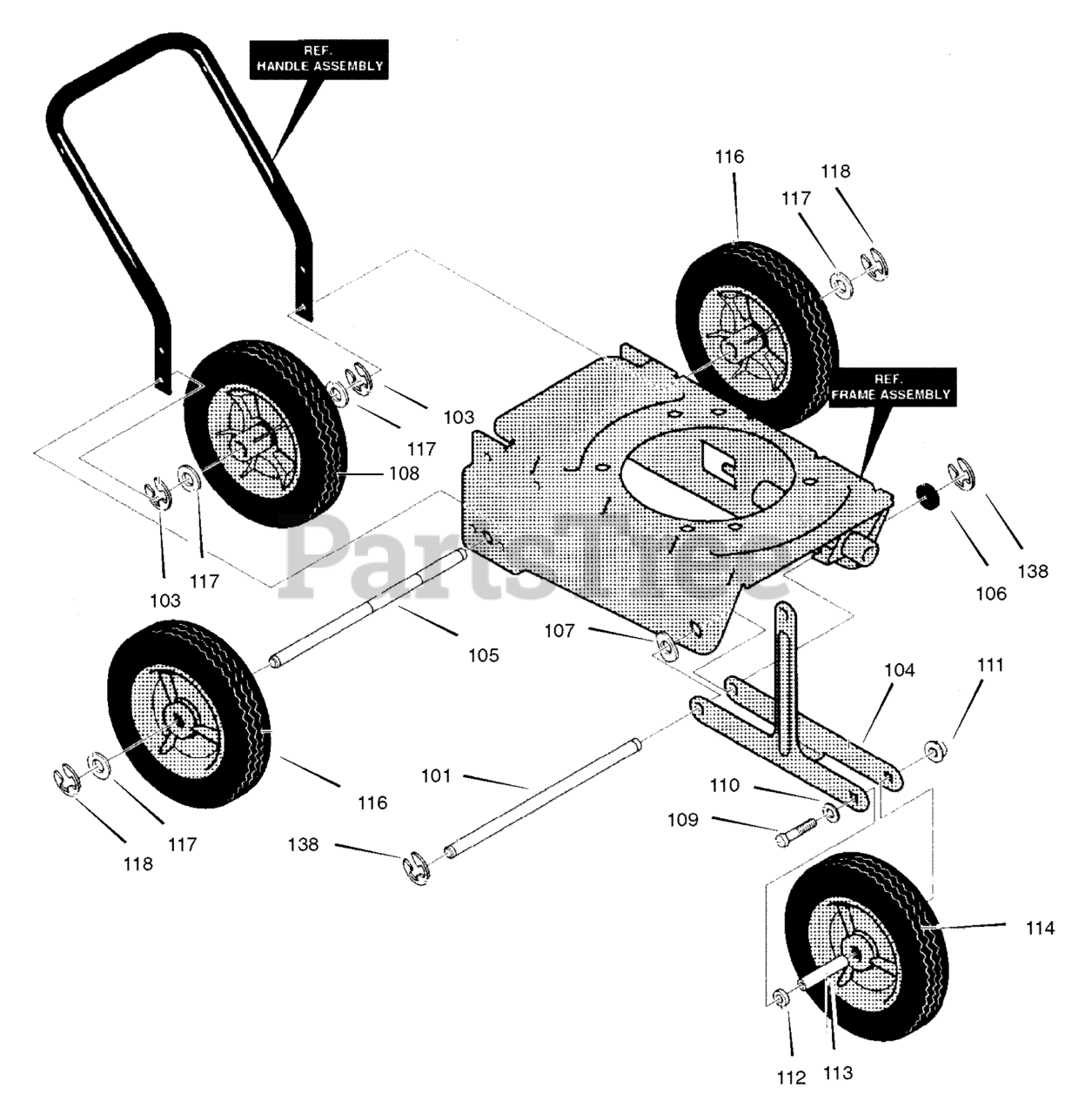

Wheel Assembly Parts Diagram

  • Title

101

Murray 740091MA

Rod, Axle Front

$14.99

$

Usually ships in 2-12 days

0

103

Murray 011X16MA

E-Ring

$3.99

$

Usually ships in 2-12 days

0

104

Murray 740126E701MA

Bracket, Curb Hop

$16.99

$

Usually ships in 2-12 days

0

105

Murray 740095MA

Rod, Rear Axle

$6.49

$

Usually ships in 2-12 days

0

106

Murray 417098MA

Washer, Flat

$3.99

$

Usually ships in 2-12 days

0

107

Murray 0020X3MA

Washer, Spring

$4.49

$

Usually ships in 2-12 days

0

108

Murray 339079MA

Tire & Rim
(Superseded to 336546MA)

$

$

Not available

109

Murray 180091MA

Screw

$3.49

$

Usually ships in 2-12 days

0

110

Murray 120393MA

Washer, Flat

$3.99

$

In Stock, only 4 left!

0

111

Murray 015X88MA

NUT, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

112

Murray 711008MA

Washer, Nylon

$3.99

$

Usually ships in 2-12 days

0

113

Murray 740046MA

Spacer, Sleeve

$4.49

$

Usually ships in 2-12 days

0

114

Murray 339079MA

Tire & Rim
(Superseded to 336546MA)

$

$

Not available

116

Murray 339079MA

Tire & Rim
(Superseded to 336546MA)

$

$

Not available

117

Murray 017X91MA

Washer, Flat

$5.49

$

In Stock, Qty 11

0

118

Murray 011X16MA

E-Ring

$3.99

$

Usually ships in 2-12 days

0

138

Murray 011X16MA

E-Ring

$3.99

$

Usually ships in 2-12 days

0
