EU7000is N AT1 (EEJD) - Honda Generator, Made in India (SN: EEJD-1000001 - EEJD-1199999) THROTTLE BODY Parts Diagram

Generator, Made in India

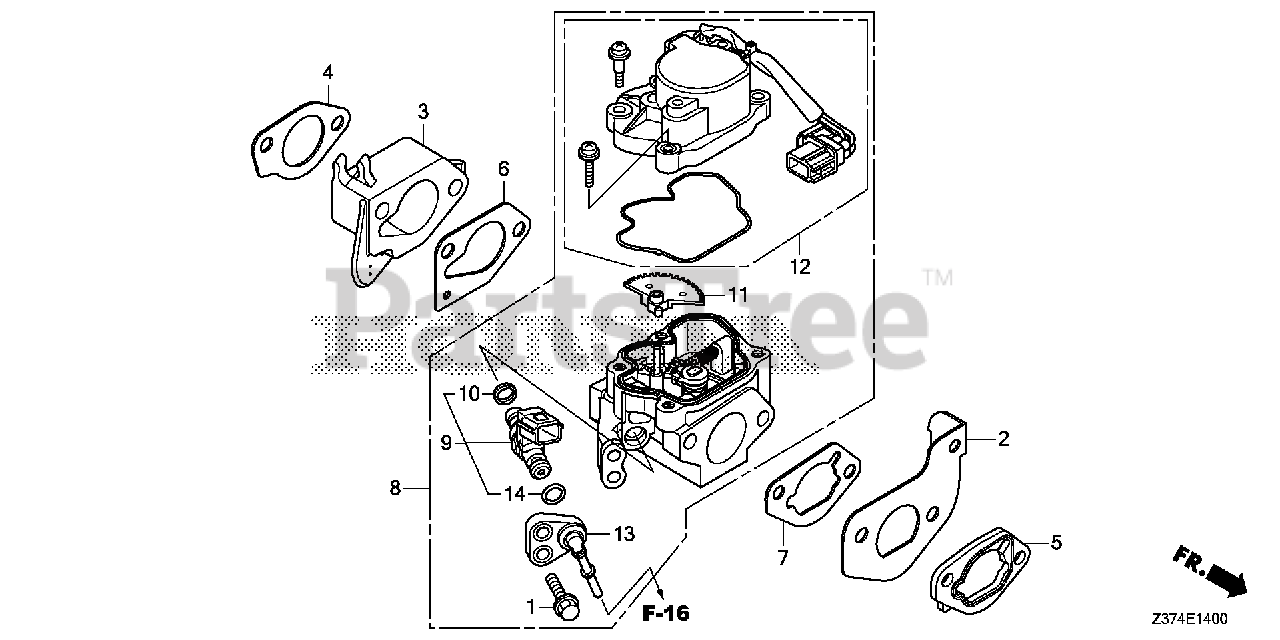

THROTTLE BODY Parts Diagram

  • Title

1

Honda 16080-KPH-701

BOLT, FLANGE (5X20)

$6.49

$

Usually ships in 3-6 days

0

2

Honda 16105-Z1C-C00

HOLDER, CONNECTOR

$0.99

$

Usually ships in 3-6 days

0

3

Honda 16211-Z1C-C00

INSULATOR, THROTTLE BODY

$11.99

$

Usually ships in 3-6 days

0

4

Honda 16212-Z5T-000

GASKET, CARBURETOR INSULATOR

$1.49

$

In Stock, only 3 left!

0

5

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$11.99

$

Usually ships in 3-6 days

0

6

Honda 16221-Z1C-C00

GASKET, THROTTLE BODY

$4.99

$

Usually ships in 3-6 days

0

7

Honda 16269-Z1C-D90

GASKET, AIR CLEANER

$0.99

$

Usually ships in 3-6 days

0

8

Honda 16400-Z1C-C01

BODY ASSY., THROTTLE (BLH0A A)

$742.99

$

Usually ships in 3-6 days

0

9

Honda 16450-Z1C-C01

INJECTOR ASSY., FUEL

$148.99

$

In Stock, only 1 left!

0

10

Honda 16472-KPC-D50

RING, SEAL

$2.99

$

Usually ships in 3-6 days

0

11

Honda 16614-Z2E-003

GEAR, MIDDLE

$7.99

$

Usually ships in 3-6 days

0

12

Honda 16646-Z1C-C01

COVER ASSY., MOTOR

$263.99

$

Usually ships in 3-6 days

0

13

Honda 17560-GGL-J00

JOINT, INJECTOR

$39.99

$

Usually ships in 3-6 days

0

14

Honda 91301-KZL-931

O-RING (6.3X2.2)

$13.99

$

In Stock, only 1 left!

0
