EU7000is N AT1 (EEJD) - Honda Generator, Made in India (SN: EEJD-1000001 - EEJD-1199999) GENERATOR Parts Diagram

Generator, Made in India

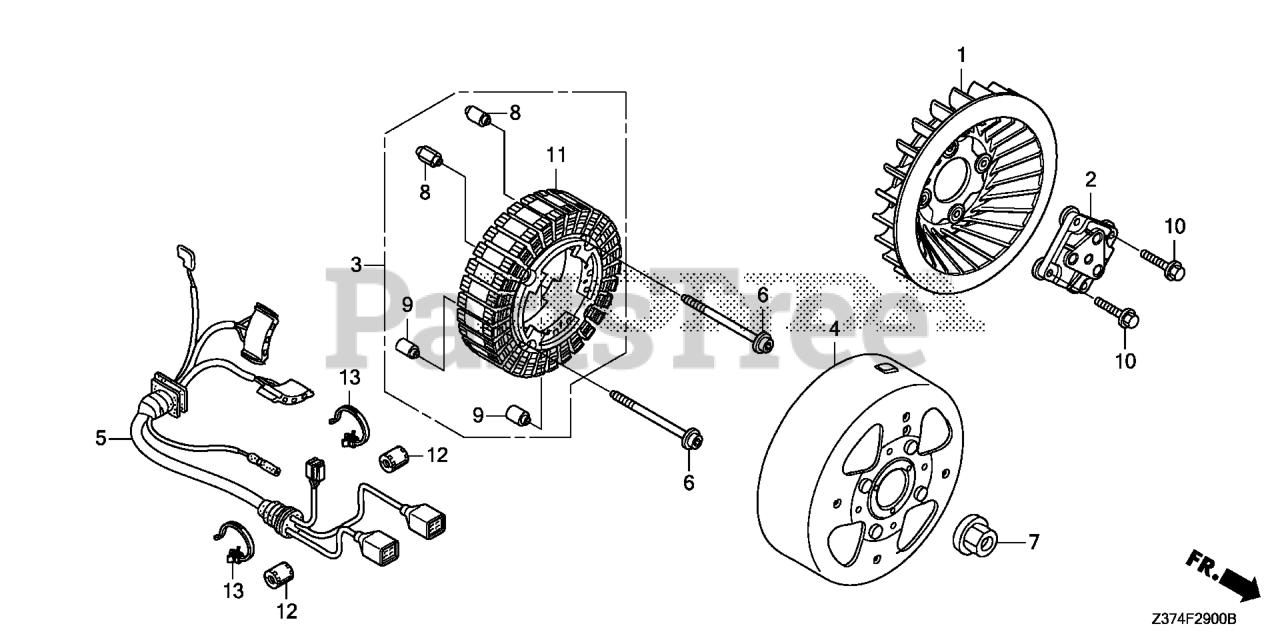

GENERATOR Parts Diagram

  • Title

1

Honda 19510-Z11-000

FAN, COOLING

$39.99

$

Usually ships in 3-6 days

0

2

Honda 28453-Z37-000

ADAPTER, RECOIL PULLEY

$3.99

$

Usually ships in 3-6 days

0

3

Honda 31012-Z37-R00

STATOR ASSY. (NOT AVAILABLE)

Note: Use from Frame SN 1046267.

$279.99

$

Usually ships in 3-6 days

0

3

Honda 31018-Z11-A31

CORE SET, STATOR COIL

Note: Use up to Frame SN 1046266.

$971.99

$

Usually ships in 3-6 days

0

4

Honda 31130-Z37-000

ROTOR

$763.99

$

Usually ships in 3-6 days

0

5

Honda 32158-Z37-A30

WIRE HARNESS ASSY., GENERATOR

$183.99

$

Usually ships in 3-6 days

0

6

Honda 90102-Z11-000

BOLT, FLANGE SOCKET (6X78) (CT200)

$2.49

$

Usually ships in 3-6 days

0

7

Honda 90201-ZE3-V00

NUT, SPECIAL (16MM) (1) (Honda Code 5032727).

$9.99

$

Usually ships in 3-6 days

0

8

Honda 91551-Z03-000

COLLAR, STATOR (6.3X13X21.5)

$9.49

$

Usually ships in 3-6 days

0

9

Honda 91552-Z03-000

COLLAR, STATOR (6.3X13X16.5)

$7.99

$

Usually ships in 3-6 days

0

10

Honda 95701-06035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35) (Honda Code 2170801).

$2.49

$

In Stock, only 4 left!

0

11

Honda 31019-Z37-R00

CORE SET, INSULATED VARNISH (NOT AVAILABLE)

Note: Use from Frame SN 1046267.

$472.99

$

Usually ships in 3-6 days

0
