EU7000is N AT1 (EEJD) - Honda Generator, Made in India (SN: EEJD-1000001 - EEJD-1199999) FUEL TANK Parts Diagram

Generator, Made in India

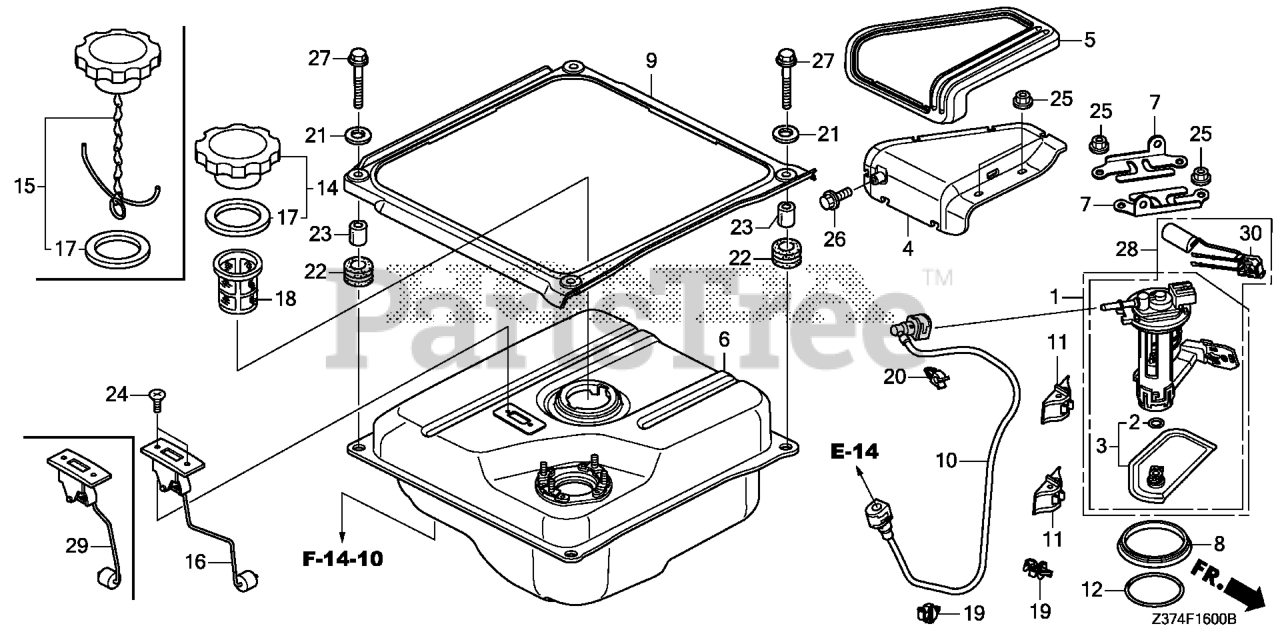

FUEL TANK Parts Diagram

  • Title

1

Honda 16700-Z37-003

PUMP UNIT, FUEL (MSDS)

$151.99

$

In Stock, only 3 left!

0

2

Honda 16706-GGL-J01

O-RING (6.8X1.9)

$7.49

$

In Stock, only 1 left!

0

3

Honda 16707-Z37-003

FILTER SET

$19.99

$

In Stock, Qty 7

0

4

Honda 16715-Z37-000ZA

COVER, FUEL PUMP *NH700M* (ALABASTER SILVER METALLIC)

$14.99

$

Usually ships in 3-6 days

0

5

Honda 16716-Z37-000

SEAL, FUEL PUMP COVER

$10.99

$

Usually ships in 3-6 days

0

6

Honda 17510-Z37-A31ZA

TANK, FUEL *R280* (POWER RED)

$89.99

$

In Stock, only 1 left!

0

6

Honda 17510-Z37-305ZA

TANK, FUEL *R280* (COO) (POWER RED)
(Superseded to 17510-Z37-A31ZA)

$89.99

$

In Stock, only 1 left!

0

7

Honda 17517-Z37-000

RETAINER, FUEL PUMP

$2.49

$

Usually ships in 3-6 days

0

8

Honda 17518-GGL-J00

DUST SEAL

$17.99

$

In Stock, only 2 left!

0

9

Honda 17537-Z25-000

SEAL, FUEL TANK

$83.99

$

Usually ships in 3-6 days

0

10

Honda 17550-Z37-003

HOSE, FUEL FEED
(Superseded to 17550-Z37-013)

$45.99

$

In Stock, only 2 left!

0

11

Honda 17567-Z37-000

GROMMET, FUEL FEED

$1.49

$

Usually ships in 3-6 days

0

12

Honda 17572-Z37-000

O-RING, FUEL PUMP

$2.49

$

In Stock, Qty 5

0

15

Honda 17620-Z30-S31

CAP, FUEL FILLER
(Superseded to 17620-Z30-S32)

$47.99

$

In Stock, only 3 left!

0

16

Honda 17630-Z37-A60

METER ASSY., FUEL (NOT AVAILABLE)

Note: Use from Frame SN 1013340.

$3.99

$

Usually ships in 3-6 days

0

16

Honda 17630-Z37-000

METER ASSY., FUEL

Note: Use up to Frame SN 1013339.

$6.99

$

In Stock, only 1 left!

0

17

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$8.99

$

In Stock, only 2 left!

0

18

Honda 17670-Z26-S60

FILTER, FUEL

$20.99

$

In Stock, only 2 left!

0

19

Honda 17936-SL5-A01

CLIP, THROTTLE WIRE

$7.49

$

Usually ships in 3-6 days

0

20

Honda 53723-SF1-951

CLIP, RETURN PIPE (6MM) (NOT AVAILABLE)

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90501-Z15-000

WASHER (6MM)

$3.99

$

Usually ships in 3-6 days

0

22

Honda 90851-Z37-000

RUBBER, TANK CUSHION

$4.49

$

Usually ships in 3-6 days

0

23

Honda 91551-Z25-000

COLLAR, TANK CUSHION

$4.49

$

Usually ships in 3-6 days

0

24

Honda 93600-05010-0A

SEE PART DETAILS - PRI; SCREW, FLAT (5X10) (Honda Code 0181529).

$1.49

$

In Stock, Qty 10

0

25

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

26

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

27

Honda 95701-06025-07

BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0
