EU7000is N AT1 (EEJD) - Honda Generator, Made in India (SN: EEJD-1000001 - EEJD-1199999) CRANKCASE COVER Parts Diagram

Generator, Made in India

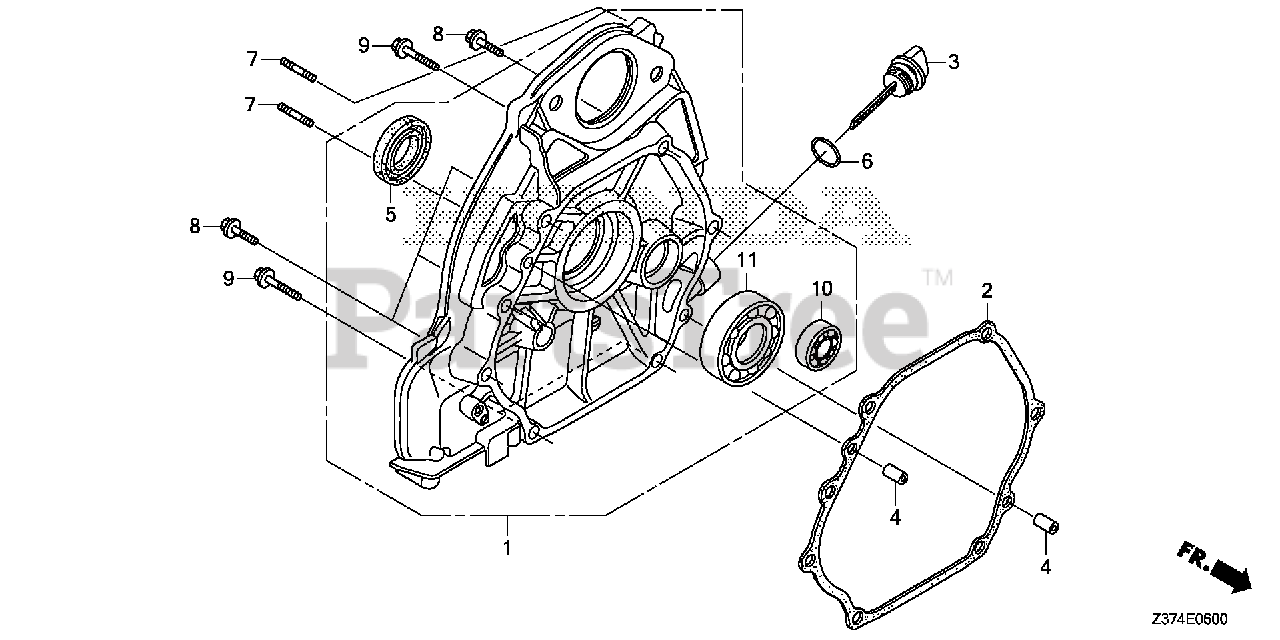

CRANKCASE COVER Parts Diagram

  • Title
1

Honda 11300-ZF6-425

COVER ASSY., CRANKCASE

Note: Use from Engine SN 1264049.

$264.99

$

Usually ships in 3-6 days

0

1

Honda 11300-Z1C-F40

COVER ASSY., CRANKCASE

Note: Use up to Engine SN 1264048.

$

$

Not available

2

Honda 11381-Z5T-000

GASKET, CRANKCASE COVER

$6.49

$

In Stock, only 4 left!

0

3

Honda 15620-ZE2-700

CAP, OIL FILLER

$8.49

$

In Stock, Qty 6

0

4

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

$3.99

$

In Stock, only 2 left!

0

5

Honda 91201-ZE3-004

OIL SEAL (35X52X8) (Honda Code 2108595).

$10.99

$

In Stock, Qty 9

0

5

Honda 91201-Z1C-003

OIL SEAL (35X52X8) (NOK)

$9.99

$

In Stock, Qty 7

0

6

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

$4.99

$

Usually ships in 3-6 days

0

7

Honda 92900-08055-0B

BOLT, STUD (8X55)

$3.99

$

Usually ships in 3-6 days

0

8

Honda 95701-08040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40) (Honda Code 2374775).

$2.99

$

Usually ships in 3-6 days

0

9

Honda 95701-08060-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X60) (Honda Code 2488526).

$3.49

$

In Stock, only 1 left!

0

10

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

In Stock, only 1 left!

0

11

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0
