EU7000is N AT1 (EEJD) - Honda Generator, Made in India (SN: EEJD-1000001 - EEJD-1199999) CONTROL PANEL (1) Parts Diagram

Generator, Made in India

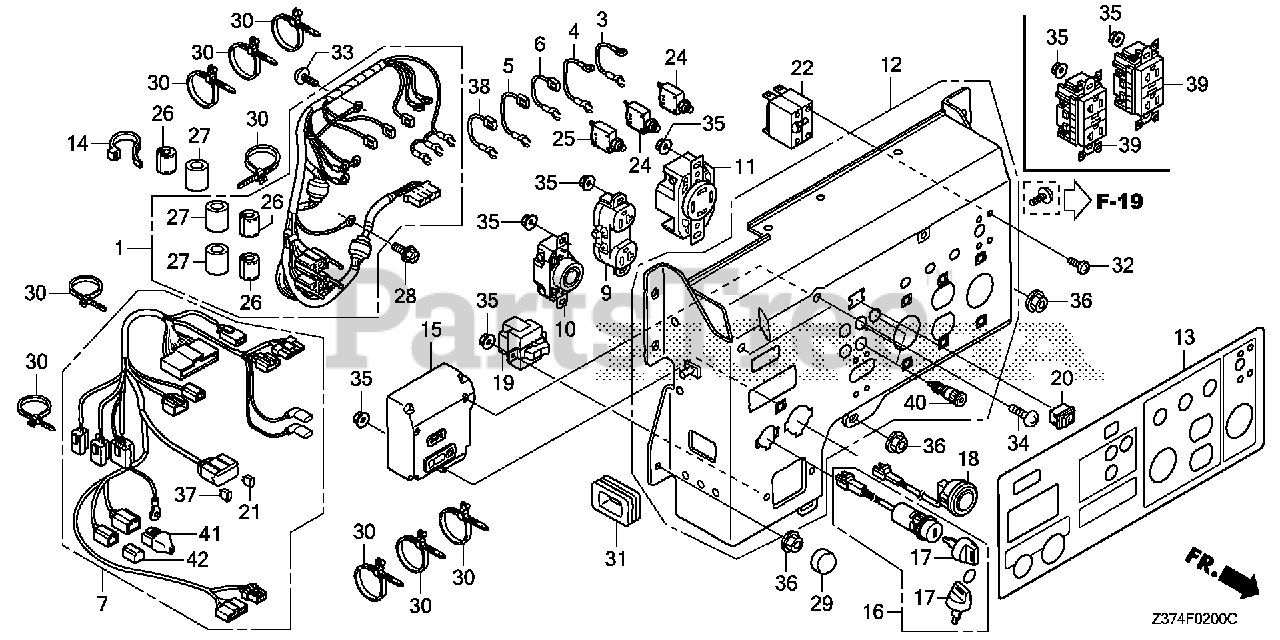

CONTROL PANEL (1) Parts Diagram

  • Title

1

Honda 32100-Z37-C30

WIRE HARNESS ASSY., MAIN

$294.99

$

Usually ships in 3-6 days

0

3

Honda 32101-Z37-A30

SUB-WIRE ASSY. (A)

$4.99

$

Usually ships in 3-6 days

0

4

Honda 32102-Z37-A30

SUB-WIRE ASSY. (B)

$5.49

$

Usually ships in 3-6 days

0

5

Honda 32107-Z37-C30

SUB-WIRE ASSY. (E)

$3.99

$

Usually ships in 3-6 days

0

6

Honda 32106-Z37-A30

SUB-WIRE ASSY. (D)

$4.49

$

Usually ships in 3-6 days

0

7

Honda 32150-Z37-C30

WIRE HARNESS ASSY., CONTROL

$121.99

$

Usually ships in 3-6 days

0

10

Honda 32332-Z22-E31

RECEPTACLE (30A-125V)

$93.99

$

Usually ships in 3-6 days

0

10

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$48.99

$

In Stock, only 1 left!

0

11

Honda 32334-ZA0-631

SEE PART DETAILS - PRI; RECEPTACLE (30A/125-250V)

$

$

Not available

11

Honda 32334-Z22-A31

RECEPTACLE (30A-125/250V)

$111.99

$

In Stock, only 1 left!

0

12

Honda 32345-Z37-C30

PANEL, CONTROL

$362.99

$

Usually ships in 3-6 days

0

13

Honda 32366-Z37-C31

MARK, PANEL

$17.99

$

Usually ships in 3-6 days

0

14

Honda 32727-PE1-660

BAND, TUBE (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 34110-Z37-A32

UNIT ASSY,GENERAT
(Superseded to 34110-Z37-A33)

Note: Use up to Frame SN 1111506.

$872.99

$

Usually ships in 3-6 days

0

15

Honda 34110-Z37-A33

CONTROL UNIT, GENERATOR

Note: Use from Frame SN 1252061. Use up to Frame SN 1111506.

$872.99

$

Usually ships in 3-6 days

0

16

Honda 35100-Z37-A31

SWITCH ASSY., COMBINATION

$69.99

$

Usually ships in 3-6 days

0

17

Honda 35110-766-003

KEY ASSY., COMBINATION SWITCH (RED)

$9.49

$

In Stock, only 1 left!

0

18

Honda 35150-Z37-A32

SWITCH ASSY., START

$25.99

$

Usually ships in 3-6 days

0

19

Honda 35320-Z11-A41

SWITCH ASSY., VOLT CHANGE

$135.99

$

Usually ships in 3-6 days

0

20

Honda 36214-Z11-A01

SWITCH, AUTO-THROTTLE (OTAX)

$25.99

$

In Stock, only 3 left!

0

21

Honda 38206-797-A01

FUSE, BLADE (3A)

$2.99

$

Usually ships in 3-6 days

0

22

Honda 38220-Z37-A31

PROTECTOR, CIRCUIT (30A)

$80.99

$

Usually ships in 3-6 days

0

24

Honda 38240-Z11-A32

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A) (WHITE)(TYCO)

$40.99

$

In Stock, only 3 left!

0

24

Honda 38240-Z25-A30

PROTECTOR, CIRCUIT (20A) (BLACK)(JOEMEX)

$114.99

$

Usually ships in 3-6 days

0

25

Honda 38241-Z11-A32

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (30A) (WHITE)

$40.99

$

Usually ships in 3-6 days

0

25

Honda 38241-Z25-A30

PROTECTOR, CIRCUIT (30A) (BLACK)

$114.99

$

Usually ships in 3-6 days

0

26

Honda 38398-Z37-000

FILTER, SUB NOISE (AC)

$16.99

$

Usually ships in 3-6 days

0

27

Honda 38398-Z07-C60

SUPPORTER, FILTER

$5.49

$

Usually ships in 3-6 days

0

28

Honda 90031-875-000

SCREW, TAPPING (5X12)

$4.49

$

Usually ships in 3-6 days

0

29

Honda 90083-ZY3-A01

CAP, BOLT (6MM)

$5.49

$

Usually ships in 3-6 days

0

30

Honda 90672-SB2-003

STRAP, CABLE (105MM) *NH1* (Honda Code 1685536). (BLACK)

$7.49

$

Usually ships in 3-6 days

0

31

Honda 91654-Z11-000

GROMMET, CONTROL HARNESS

$5.99

$

Usually ships in 3-6 days

0

32

Honda 93500-03005-0G

SCREW, PAN (3X5) (NOT AVAILABLE)

$

$

Currently unavailable

33

Honda 93500-05008-3J

SCREW, PAN (5X8)

$1.49

$

Usually ships in 3-6 days

0

34

Honda 93500-05012-0G

SCREW, PAN (5X12)

$1.49

$

Usually ships in 3-6 days

0

35

Honda 94050-04000

NUT, FLANGE (4MM)

$1.99

$

In Stock, only 4 left!

0

36

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

37

Honda 98200-31500

FUSE, BLADE (15A) (Honda Code 1644244).

$1.99

$

In Stock, Qty 6

0

38

Honda 32108-Z37-C30

SUB-WIRE ASSY. (F)

$4.49

$

Usually ships in 3-6 days

0

39

Honda 32330-Z23-G12

SEE PART DETAILS - PRI; RECEPTACLE (20A-125V) (GFCI)

Note: Use from Frame SN 1044764.

$

$

Not available

40

Honda 32139-Z37-A30

SOCKET, COMPOSITE

$85.99

$

Usually ships in 3-6 days

0

41

Honda 32130-Z37-000

CONNECTOR ASSY., SHORT

$6.49

$

Usually ships in 3-6 days

0

42

Honda 32174-VP7-000

CONNECTOR, DUMMY (4P)

$15.99

$

Usually ships in 3-6 days

0
