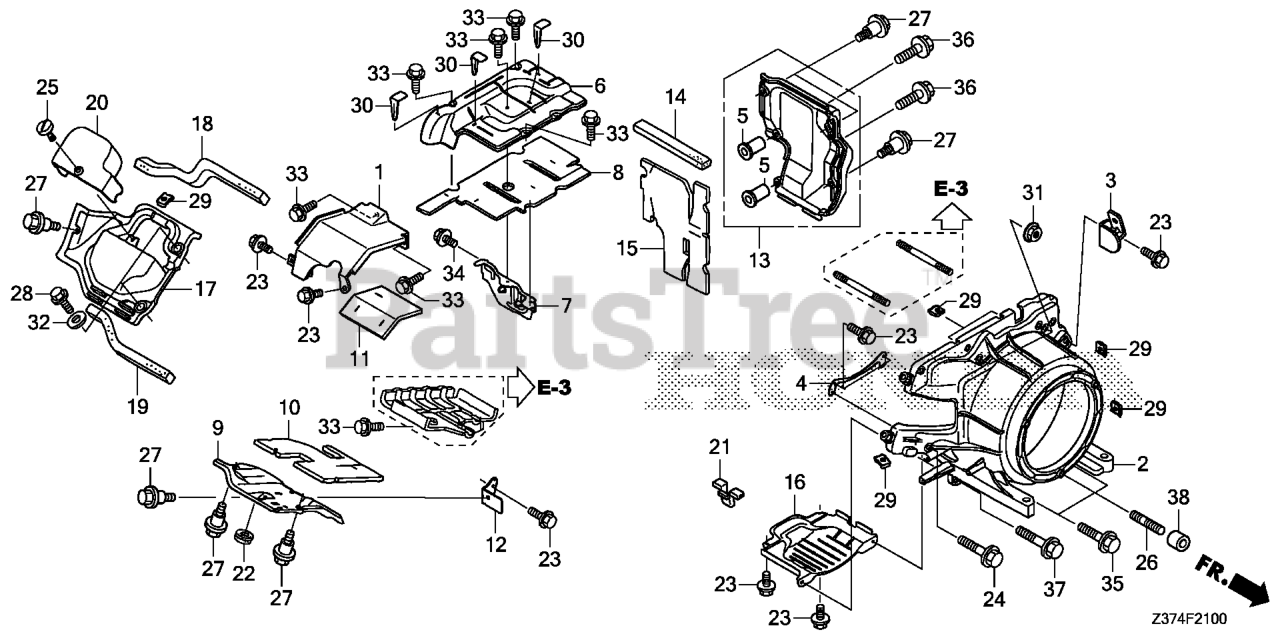

EU7000is N AN (EEJD) - Honda Generator, Made in India (SN: EEJD-1300001 - EEJD-9999999) SHROUD@FAN COVER Parts Diagram

Generator, Made in India

SHROUD@FAN COVER Parts Diagram

  • Title

1

Honda 19015-Z37-000

SHROUD, HEAD

$6.49

$

Usually ships in 3-6 days

0

2

Honda 19611-Z11-405

COVER, FAN

$149.99

$

Usually ships in 3-6 days

0

3

Honda 19612-Z25-000

PLATE, R. SIDE

$3.99

$

Usually ships in 3-6 days

0

4

Honda 19617-Z11-000

BRACKET, FAN COVER

$6.99

$

Usually ships in 3-6 days

0

5

Honda 19619-ZL8-300

COLLAR, FAN COVER (Honda Code 5580527). (N/A: SEE ASSEMBLY)

$1.49

$

In Stock, Qty 20+

0

6

Honda 19631-Z11-000

SHROUD (UPPER)

$35.99

$

Usually ships in 3-6 days

0

7

Honda 19634-Z37-000

BRACKET, SHROUD (UPPER)

$14.99

$

Usually ships in 3-6 days

0

8

Honda 19637-Z11-000

INSULATOR, SHROUD (UPPER)

$18.99

$

Usually ships in 3-6 days

0

9

Honda 19641-Z11-010

SHROUD (LOWER)

$14.99

$

Usually ships in 3-6 days

0

10

Honda 19647-Z11-010

INSULATOR, SHROUD (LOWER)

$8.49

$

Usually ships in 3-6 days

0

11

Honda 19647-Z37-000

INSULATOR, HEAD SHROUD

$5.99

$

Usually ships in 3-6 days

0

12

Honda 19649-Z11-000

BRACKET, SHROUD (LOWER)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 19665-Z11-000

SHROUD, R. SIDE

$30.99

$

Usually ships in 3-6 days

0

14

Honda 19666-Z11-000

SEAL, R. SIDE COVER

$0.99

$

Usually ships in 3-6 days

0

15

Honda 19668-Z11-000

INSULATOR, R. SIDE COVER

$13.99

$

Usually ships in 3-6 days

0

16

Honda 19671-Z11-000

SHROUD (LOWER)

$17.99

$

Usually ships in 3-6 days

0

17

Honda 19681-Z37-000

SHROUD, HEAD COVER

$9.49

$

Usually ships in 3-6 days

0

18

Honda 19683-Z11-000

SEAL, HEAD COVER SHROUD (UPPER)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 19684-Z11-000

SEAL, HEAD COVER SHROUD (LOWER)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 63347-Z11-000

COVER, PLUG

$4.99

$

Usually ships in 3-6 days

0

21

Honda 63714-Z25-000

RUBBER, OIL CHECK

$20.99

$

Usually ships in 3-6 days

0

22

Honda 64266-MG9-770

GROMMET, SPEAKER PANEL

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

24

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

$2.49

$

In Stock, only 2 left!

0

25

Honda 90102-Z07-003

SCREW, SPECIAL (6X16)

$3.99

$

In Stock, Qty 20+

0

26

Honda 90102-Z37-000

BOLT, STUD (6X20) (CT200)

$4.49

$

Usually ships in 3-6 days

0

27

Honda 90103-Z11-000

BOLT, SPECIAL (6MM)

$2.49

$

In Stock, only 3 left!

0

28

Honda 90110-Z11-000

BOLT, FLANGE (6X12) (CT200)

$2.99

$

Usually ships in 3-6 days

0

29

Honda 90320-747-000

NUT, SPRING (6MM)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 90686-ZG3-300

CLIP, INSULATOR BIND (A)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

32

Honda 94103-06700

WASHER, PLAIN (6MM) (Honda Code 0622324).

$0.99

$

In Stock, Qty 5

0

33

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

$2.49

$

In Stock, only 1 left!

0

34

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

35

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2374759).

$0.99

$

Usually ships in 3-6 days

0

36

Honda 95701-06022-07

BOLT, FLANGE (6X22)

$1.49

$

In Stock, only 2 left!

0

37

Honda 95701-06030-08

BOLT, FLANGE (6X30)

$2.99

$

Usually ships in 3-6 days

0

38

Honda 91552-Z37-000

COLLAR (6.6X13.8X10)

$0.99

$

Usually ships in 3-6 days

0
