EU7000is N AN (EEJD) - Honda Generator, Made in India (SN: EEJD-1300001 - EEJD-9999999) RECOIL STARTER Parts Diagram

Generator, Made in India

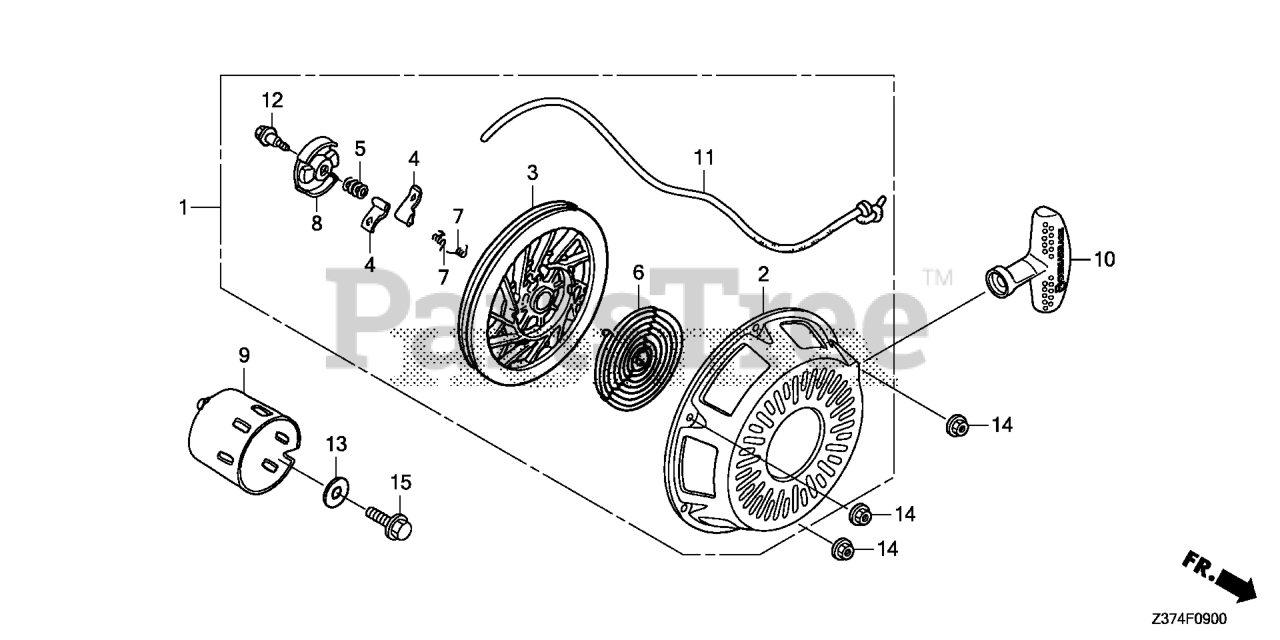

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-Z37-003

STARTER ASSY., RECOIL

$102.99

$

Usually ships in 3-6 days

0

2

Honda 28410-Z11-003

CASE, RECOIL STARTER

$59.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE3-W01

PULLEY, RECOIL STARTER (Honda Code 3713328).

$48.99

$

In Stock, only 2 left!

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER (Honda Code 3678877).

$8.49

$

In Stock, Qty 11

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION (Honda Code 3678885).

$6.99

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN (Honda Code 3678893).

$19.99

$

In Stock, Qty 5

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET (Honda Code 3678901).

$5.99

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING (Honda Code 3678919).

$15.99

$

Usually ships in 3-6 days

0

9

Honda 28451-Z25-R50

PULLEY, STARTER

$5.99

$

Usually ships in 3-6 days

0

10

Honda 28461-Z37-000

GRIP, STARTER

$1.49

$

Usually ships in 3-6 days

0

11

Honda 06280-Z37-R50

ROPE KIT, RECOIL

$9.99

$

Usually ships in 3-6 days

0

11

Honda 28462-ZK3-003

ROPE, RECOIL STARTER

$10.99

$

In Stock, Qty 10

0

12

Honda 90004-ZE2-W01

SCREW, CENTER (Honda Code 3679024).

$4.49

$

In Stock, Qty 10

0

13

Honda 90409-952-000

WASHER (10MM)

$3.49

$

In Stock, only 2 left!

0

14

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

15

Honda 95701-10025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X25) (Honda Code 2514776).

$3.49

$

Usually ships in 3-6 days

0
