EU7000is N AN (EEJD) - Honda Generator, Made in India (SN: EEJD-1300001 - EEJD-9999999) AIR CLEANER Parts Diagram

Generator, Made in India

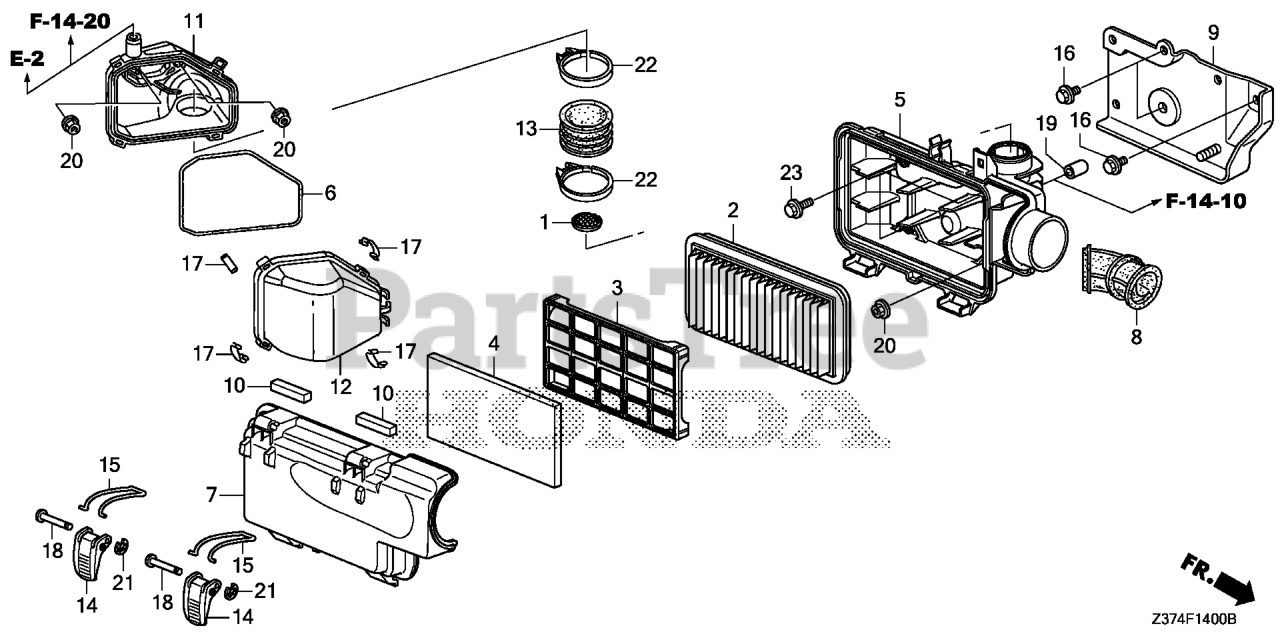

AIR CLEANER Parts Diagram

  • Title

1

Honda 17203-ZY1-000

TRAP, FLAME

$16.99

$

Usually ships in 3-6 days

0

2

Honda 17211-Z3S-003

ELEMENT, AIR CLEANER

$35.99

$

In Stock, only 2 left!

0

3

Honda 17212-Z0A-010

GRID, AIR CLEANER

$26.99

$

In Stock, only 1 left!

0

4

Honda 17218-Z0A-810

SEE PART DETAILS - PRI; FILTER (OUTER)

$6.99

$

In Stock, Qty 6

0

5

Honda 17220-Z37-000

HOUSING, AIR CLEANER

$14.99

$

Usually ships in 3-6 days

0

6

Honda 17229-Z25-000

SEAL, AIR CLEANER CHAMBER

$13.99

$

Usually ships in 3-6 days

0

7

Honda 17231-Z37-000

COVER, AIR CLEANER

$9.49

$

In Stock, only 1 left!

0

8

Honda 17232-Z25-000

RUBBER, AIR CLEANER

$15.99

$

Usually ships in 3-6 days

0

9

Honda 17233-Z37-000

BRACKET, AIR CLEANER

$7.49

$

Usually ships in 3-6 days

0

10

Honda 17252-Z37-000

SEAL, AIR CLEANER

$0.99

$

In Stock, Qty 8

0

11

Honda 17270-Z25-000

HOUSING, AIR CLEANER CHAMBER

$109.99

$

In Stock, only 1 left!

0

12

Honda 17273-Z25-010

SEE PART DETAILS - PRI; COVER, AIR CLEANER CHAMBER

$69.99

$

Usually ships in 3-6 days

0

13

Honda 17274-Z25-000

TUBE, AIR CLEANER CONNECTING

$14.99

$

Usually ships in 3-6 days

0

14

Honda 63232-Z37-000

LEVER, FASTENER

$1.49

$

Usually ships in 3-6 days

0

15

Honda 63237-Z37-000

SPRING, FASTENER WIRE

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

17

Honda 90659-Z35-000

CLAMP, CASE

$3.99

$

In Stock, Qty 8

0

18

Honda 90754-ZY9-000

PIN (5X44.5)

$4.99

$

Usually ships in 3-6 days

0

20

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

21

Honda 94540-04029

E-RING (4MM)

$6.99

$

In Stock, only 1 left!

0

22

Honda 95018-54250

BAND, AIR CLEANER CONNECTING TUBE (54)

$7.49

$

Usually ships in 3-6 days

0

23

Honda 95701-06022-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22) (Honda Code 2129682).

$2.49

$

Usually ships in 3-6 days

0
