EU6500is AN (EASJ) - Honda Generator, Made in Japan (SN: EASJ-1000001 - EASJ-9999999) FUEL TANK Parts Diagram

Generator, Made in Japan

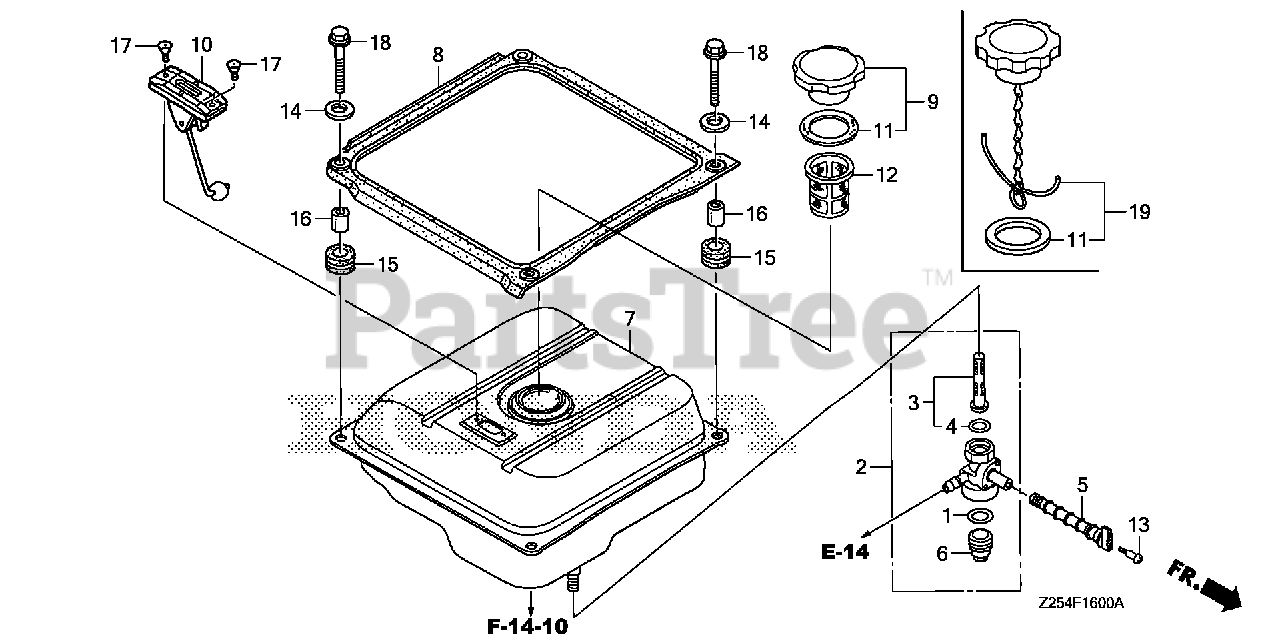

FUEL TANK Parts Diagram

  • Title

1

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, Qty 8

0

2

Honda 16950-Z11-003

PETCOCK ASSY.

$82.99

$

In Stock, only 1 left!

0

3

Honda 16952-KJ9-752

SEE PART DETAILS - PRI; SCREEN SET, FUEL STRAINER

$45.99

$

Usually ships in 3-6 days

0

3

Honda 16952-ZB4-005

SEE PART DETAILS - SUP; SCREEN SET, FUEL STRAINER
(Superseded to 16952-KJ9-752)

$45.99

$

Usually ships in 3-6 days

0

4

Honda 16958-397-771

O-RING (9.0X1.3)

$7.49

$

In Stock, Qty 5

0

5

Honda 16963-Z11-000

LEVER, PETCOCK

$4.49

$

In Stock, Qty 5

0

6

Honda 16967-GA6-671

CUP, FUEL STRAINER

$30.99

$

Usually ships in 3-6 days

0

7

Honda 17510-Z25-000ZA

TANK, FUEL *R280* (POWER RED)

$253.99

$

Usually ships in 3-6 days

0

8

Honda 17537-Z25-000

SEAL, FUEL TANK

$76.99

$

Usually ships in 3-6 days

0

9

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-899-023)

$40.99

$

In Stock, only 1 left!

0

10

Honda 17630-Z11-A31

METER ASSY., FUEL

$

$

Not available

11

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$7.99

$

In Stock, only 2 left!

0

12

Honda 17670-ZB6-000

FILTER, FUEL

$17.99

$

Usually ships in 3-6 days

0

13

Honda 90105-ZT3-000

SCREW, PAN (4X19)

$2.49

$

In Stock, only 1 left!

0

14

Honda 90501-Z15-000

WASHER (6MM)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90851-898-000

RUBBER, TANK CUSHION

$5.99

$

In Stock, only 1 left!

0

16

Honda 91551-Z25-000

COLLAR, TANK CUSHION

$3.99

$

Usually ships in 3-6 days

0

17

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, only 3 left!

0

18

Honda 95701-06025-07

BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0
