EU6500is A (EASJ) - Honda Generator, Made in Japan (SN: EASJ-1000001 - EASJ-9999999) MUFFLER Parts Diagram

Generator, Made in Japan

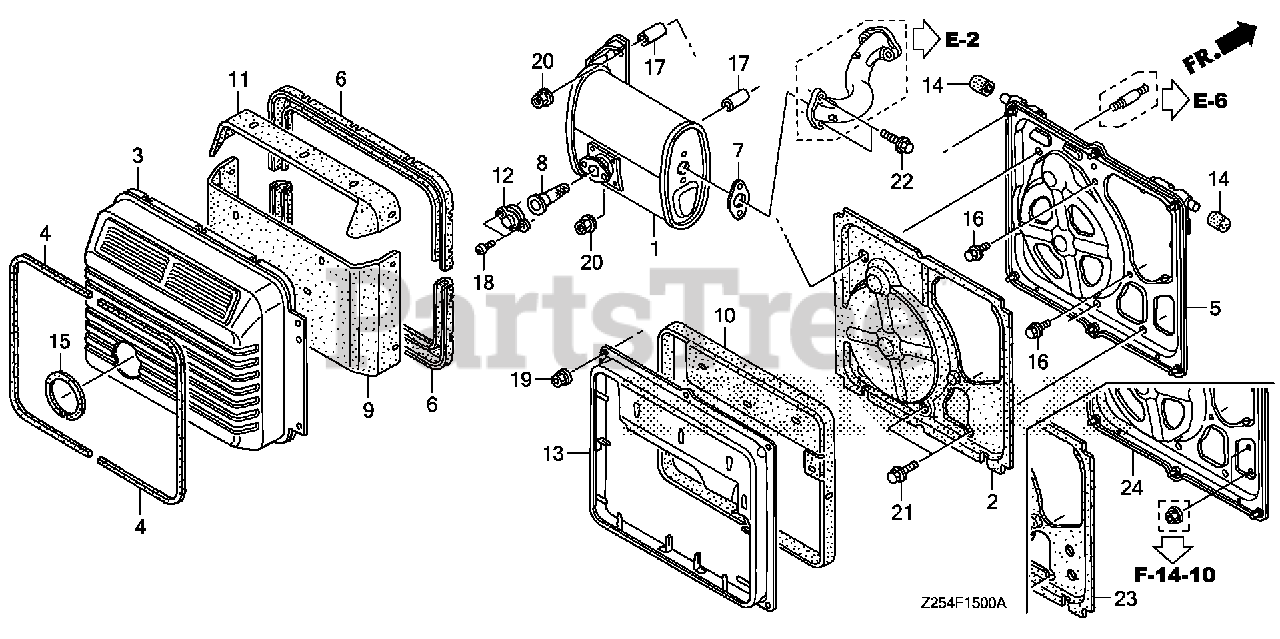

MUFFLER Parts Diagram

  • Title

1

Honda 18310-Z25-003

MUFFLER

$439.99

$

Usually ships in 3-6 days

0

2

Honda 18318-Z25-000

SEPARATOR, MUFFLER (INNER)

$112.99

$

Usually ships in 3-6 days

0

3

Honda 18320-Z25-000ZA

PROTECTOR, MUFFLER (OUTER) *NH105* (MAT BLACK)

$134.99

$

In Stock, only 1 left!

0

4

Honda 18322-Z25-000

SEAL (10X5X785)

$22.99

$

Usually ships in 3-6 days

0

5

Honda 18325-Z11-010

PROTECTOR, MUFFLER (INNER)

$149.99

$

Usually ships in 3-6 days

0

6

Honda 18329-Z25-000

SEAL, MUFFLER PROTECTOR

$31.99

$

Usually ships in 3-6 days

0

7

Honda 18333-ZB7-800

GASKET, EX. PIPE

$8.99

$

Usually ships in 3-6 days

0

8

Honda 18355-Z11-A30

ARRESTER, SPARK

$29.99

$

Usually ships in 3-6 days

0

9

Honda 18376-Z11-A60

INSULATOR, MUFFLER PROTECTOR (A)

$40.99

$

Usually ships in 3-6 days

0

10

Honda 18377-Z25-000

INSULATOR, MUFFLER PROTECTOR (B)

$34.99

$

Usually ships in 3-6 days

0

11

Honda 18378-Z25-000

INSULATOR, MUFFLER PROTECTOR (C)

$12.99

$

Usually ships in 3-6 days

0

12

Honda 18390-Z25-000

PIPE, EX. TAIL

$43.99

$

Usually ships in 3-6 days

0

13

Honda 18510-Z25-000

GUIDE, EX. AIR

$132.99

$

Usually ships in 3-6 days

0

14

Honda 50388-Z11-000

RUBBER, STOPPER

$0.99

$

Usually ships in 3-6 days

0

15

Honda 63312-Z25-000

SEAL (10X8X290)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 20+

0

17

Honda 91554-Z25-000

COLLAR, MUFFLER

$4.49

$

Usually ships in 3-6 days

0

18

Honda 93500-05016-4J

SCREW, PAN (5X16)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94050-06070

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$1.99

$

In Stock, only 2 left!

0

20

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

21

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, Qty 5

0
