EU6500is A (EASJ) - Honda Generator, Made in Japan (SN: EASJ-1000001 - EASJ-9999999) FRAME Parts Diagram

Generator, Made in Japan

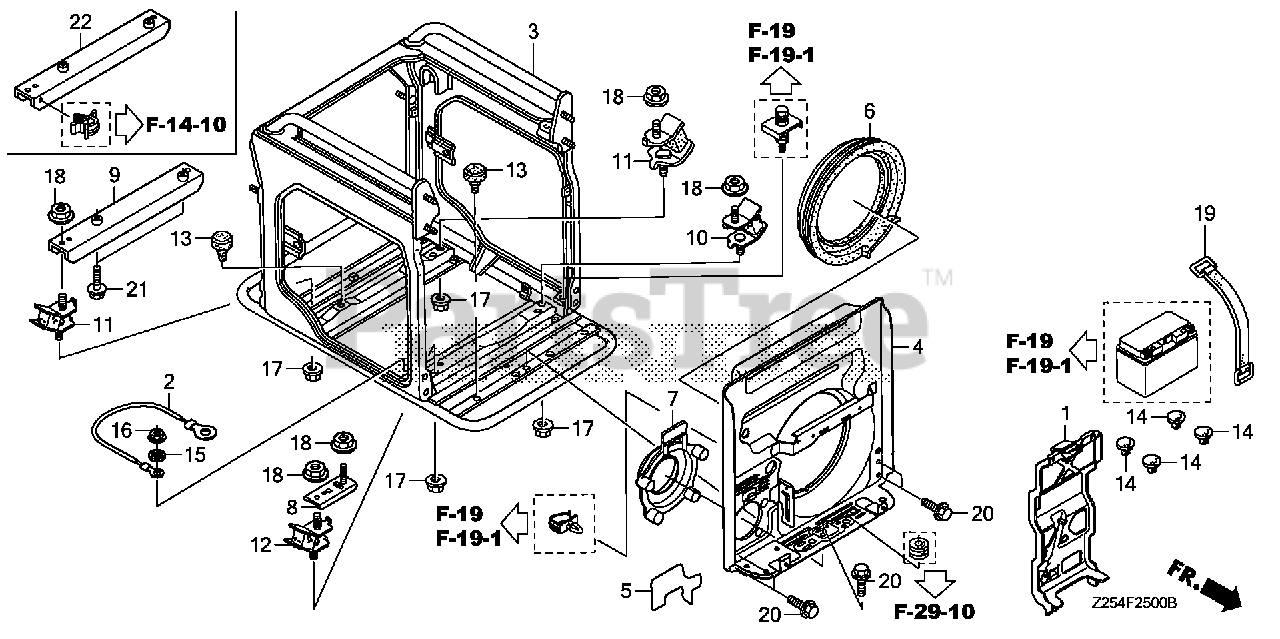

FRAME Parts Diagram

  • Title

1

Honda 32103-Z11-000

BRACKET, WIRE HARNESS CLIP

$11.99

$

Usually ships in 3-6 days

0

2

Honda 32610-Z11-A00

CABLE, SUB-GROUND

$6.99

$

Usually ships in 3-6 days

0

3

Honda 50305-Z25-000ZA

FRAME, GENERATOR *NH105* (MAT BLACK)

$455.99

$

Usually ships in 3-6 days

0

4

Honda 63640-Z25-000

FRAME, FR.

$247.99

$

Usually ships in 3-6 days

0

5

Honda 63642-Z25-000

SEAL, FR. FRAME (NOT AVAILABLE)

$

$

Not available

6

Honda 63776-Z11-000

RUBBER A, SEPARATOR SEAL

$25.99

$

Usually ships in 3-6 days

0

7

Honda 63778-Z11-000

RUBBER B, SEPARATOR SEAL

$10.99

$

Usually ships in 3-6 days

0

8

Honda 68322-Z11-000ZA

BRACKET, FR. ENGINE MOUNT *NH105* (MAT BLACK)

$11.99

$

Usually ships in 3-6 days

0

9

Honda 68323-Z11-000

BRACKET, RR. ENGINE MOUNT

$26.99

$

Usually ships in 3-6 days

0

10

Honda 68325-ZC2-000

RUBBER (LOWER)

$41.99

$

Usually ships in 3-6 days

0

11

Honda 68325-Z11-000

RUBBER (LOWER)

$23.99

$

Usually ships in 3-6 days

0

12

Honda 68326-Z11-000

RUBBER, L. (LOWER)

$15.99

$

Usually ships in 3-6 days

0

13

Honda 68346-ZC3-700

RUBBER, STOPPER

$2.49

$

Usually ships in 3-6 days

0

14

Honda 83618-GF0-751

RUBBER, BATTERY BOX

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90432-898-000

WASHER, LOCK (6MM)

$1.49

$

Usually ships in 3-6 days

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

17

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 13

0

18

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

Usually ships in 3-6 days

0

19

Honda 95012-17001

BAND F, BATTERY (155MM)

$9.99

$

Usually ships in 3-6 days

0

20

Honda 95701-08012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X12) (Honda Code 2581379).

$1.49

$

In Stock, only 2 left!

0

21

Honda 95701-08030-00

BOLT, FLANGE (8X30)

$1.49

$

Usually ships in 3-6 days

0
