EU6500is A (EASJ) - Honda Generator, Made in Japan (SN: EASJ-1000001 - EASJ-9999999) CYLINDER Parts Diagram

Generator, Made in Japan

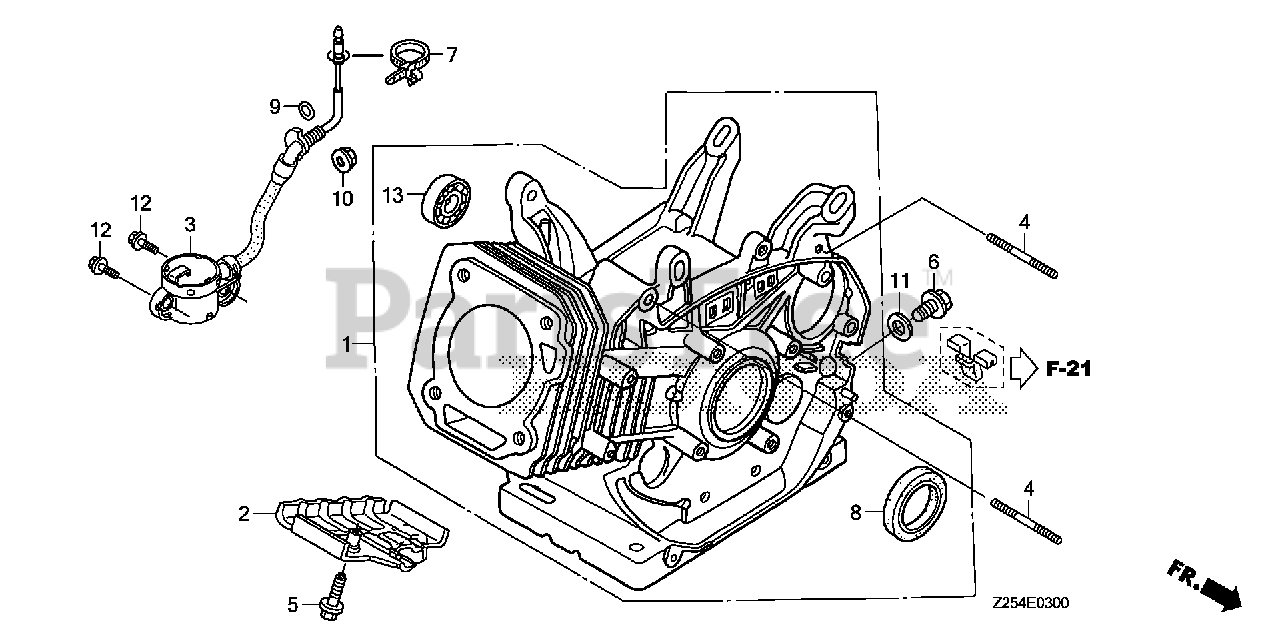

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZF6-Q00

CYLINDER ASSY.

$869.99

$

Usually ships in 3-6 days

0

2

Honda 19645-Z11-000

SHROUD, ENGINE

$12.99

$

Usually ships in 3-6 days

0

3

Honda 35480-ZF6-003

SWITCH ASSY., OIL LEVEL

$67.99

$

In Stock, only 1 left!

0

4

Honda 90045-ZG1-750

BOLT, STUD (6X30)

$3.99

$

Usually ships in 3-6 days

0

5

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

6

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, only 1 left!

0

7

Honda 90674-Z11-003

BAND, CABLE

$2.49

$

Usually ships in 3-6 days

0

8

Honda 91201-ZE3-004

OIL SEAL (35X52X8) (Honda Code 2108595).

$10.99

$

In Stock, Qty 9

0

9

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 14

0

9

Honda 91353-671-004

SEE PART DETAILS - SUP; O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 14

0

10

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, Qty 6

0

11

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, only 3 left!

0

12

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 19

0

13

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

In Stock, only 1 left!

0
