EU6500is A (EASJ) - Honda Generator, Made in Japan (SN: EASJ-1000001 - EASJ-9999999) CARBURETOR Parts Diagram

Generator, Made in Japan

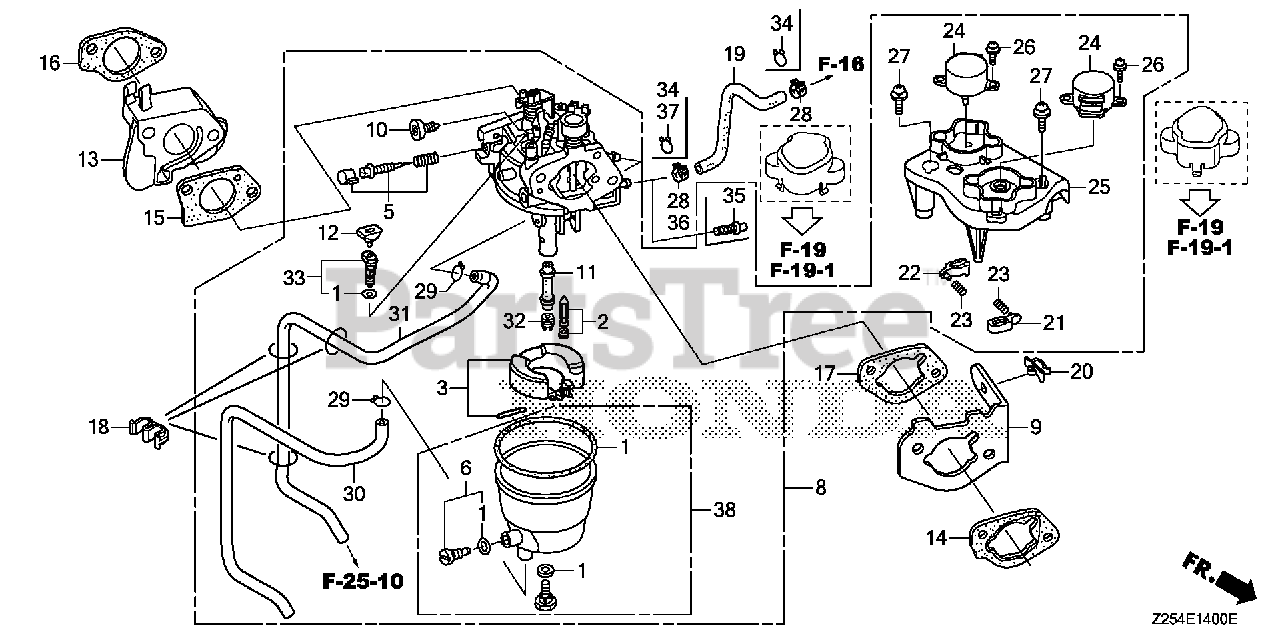

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZA0-921

GASKET SET (Honda Code 2652832).

$19.99

$

In Stock, only 3 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$45.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$51.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZA0-931

CHAMBER SET, FLOAT (Honda Code 2386241).

$83.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.)

$21.99

$

In Stock, only 1 left!

0

6

Honda 16024-124-760

SEE PART DETAILS - PRI; SCREW SET, DRAIN (ADVENTURE GREEN) (CARBURETOR NO.)

$15.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZA0-701

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 06160-Z1C-325)

$24.99

$

In Stock, only 2 left!

0

8

Honda 16100-ZK6-E41

CARBURETOR ASSY. (BE89G A)

$309.99

$

In Stock, only 1 left!

0

9

Honda 16105-ZK6-E40

HOLDER, TUBE

$13.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZF6-F41

SCREW, STOP

$12.99

$

Usually ships in 3-6 days

0

11

Honda 16166-ZF6-F41

NOZZLE, MAIN

$25.99

$

Usually ships in 3-6 days

0

12

Honda 16172-ZE3-W10

COLLAR, SET (Honda Code 3738358).

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16211-ZF6-F40

INSULATOR, CARBURETOR

$26.99

$

Usually ships in 3-6 days

0

14

Honda 16220-ZA0-702

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2686533).

$11.99

$

In Stock, Qty 5

0

15

Honda 16221-ZF6-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3713161).

$2.49

$

In Stock, Qty 12

0

16

Honda 16223-ZE3-W00

GASKET, INSULATOR Use up to Engine SN 2949254.

$2.99

$

In Stock, Qty 6

0

17

Honda 16269-ZA0-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 3755212).

$2.49

$

In Stock, Qty 20+

0

18

Honda 17205-PC6-000

CLAMP, TUBE (7.5X2)

$11.99

$

Usually ships in 3-6 days

0

19

Honda 17701-ZF6-F42

TUBE, FUEL TANK (FKM) (ENGINE NO.)
(Superseded to 17701-ZF6-F43)

$17.99

$

Usually ships in 3-6 days

0

20

Honda 32172-GJ1-003

CLIP B, HARNESS

$5.49

$

Usually ships in 3-6 days

0

21

Honda 36161-ZF6-F41

LEVER, LINK

$18.99

$

Usually ships in 3-6 days

0

22

Honda 36161-ZL0-D31

LEVER, LINK (CARBURETOR NO.)

$14.99

$

Usually ships in 3-6 days

0

23

Honda 36162-ZL0-D31

SPRING, COMPRESSION COIL (CARBURETOR NO.)

$7.49

$

In Stock, Qty 11

0

24

Honda 36165-ZF6-F41

MOTOR, THROTTLE CONTROL

$103.99

$

Usually ships in 3-6 days

0

25

Honda 36166-ZF6-F41

BRACKET, THROTTLE MOTOR

$26.99

$

Usually ships in 3-6 days

0

26

Honda 90003-ZL0-D30

SCREW-WASHER (3X8)

$2.49

$

In Stock, only 4 left!

0

27

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12) Use up to Engine SN 2056819.

$1.99

$

Usually ships in 3-6 days

0

27

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12) Use up to Engine SN 2056819.
(Superseded to 93893-04012-08)

$1.99

$

Usually ships in 3-6 days

0

28

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, only 4 left!

0

29

Honda 95002-45000

CLIP, TUBE (4.5)

$1.99

$

In Stock, Qty 9

0

30

Honda 95003-09001-60M

SEE PART DETAILS - PRI; BULK HOSE, VINYL (4.5X8X1000) (4.5X8X750)

$5.49

$

Usually ships in 3-6 days

0

31

Honda 95003-09001-60M

SEE PART DETAILS - PRI; BULK HOSE, VINYL (4.5X8X1000) (4.5X8X750)

$5.49

$

Usually ships in 3-6 days

0

32

Honda 99101-ZH8-0920

SEE PART DETAILS - PRI; JET, MAIN (#92) (Honda Code 5947163).

Note: (Optional).

$8.49

$

In Stock, only 1 left!

0

32

Honda 99101-ZH8-0950

SEE PART DETAILS - PRI; JET, MAIN (#95) (Honda Code 6062665).

Note: (Optional).

$7.99

$

In Stock, Qty 11

0

32

Honda 99101-ZH8-0980

JET, MAIN (#98) Use from Engine SN BE87A A to BE87A A.

$7.99

$

In Stock, only 1 left!

0

33

Honda 99204-ZE2-0400

SEE PART DETAILS - PRI; JET SET, PILOT (#40) (ADVENTURE GREEN) (CARBURETOR NO.)

$23.99

$

In Stock, only 2 left!

0

38

Honda 06160-Z1C-305

BOLT KIT, FUEL CHAMBER (CARBURETOR NO.)
(Superseded to 06160-Z1C-325)

$24.99

$

In Stock, only 2 left!

0

38

Honda 06160-Z1C-315

BOLT KIT
(Superseded to 06160-Z1C-325)

$24.99

$

In Stock, only 2 left!

0

38

Honda 06160-Z1C-325

SEE PART DETAILS - PRI; BOLT KIT, FUEL CHAMBER

$24.99

$

In Stock, only 2 left!

0
