EU6500is 1 AT (EASJ) - Honda Generator, Made in Japan (SN: EASJ-1200001 - EASJ-9999999) CYLINDER Parts Diagram

Generator, Made in Japan

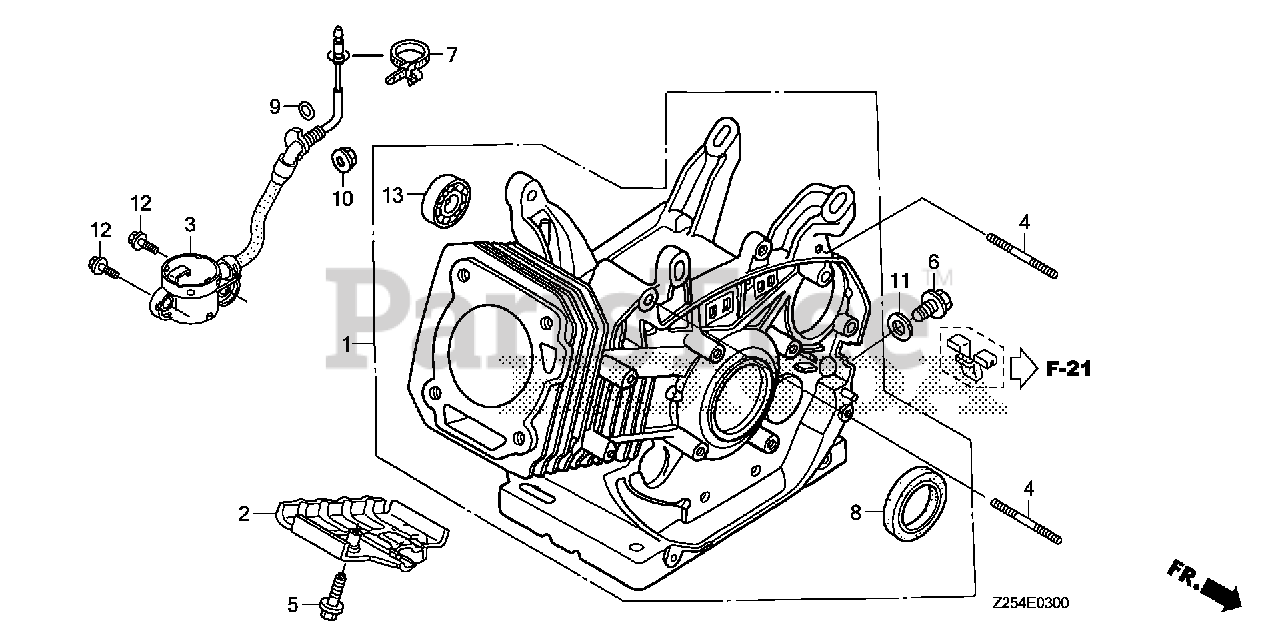

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZF6-Q20

CYLINDER ASSY.
(Superseded to 12000-ZF6-Q21)

$172.99

$

Usually ships in 3-6 days

0

2

Honda 19645-Z11-000

SHROUD, ENGINE

$12.99

$

Usually ships in 3-6 days

0

3

Honda 35480-ZF6-003

SWITCH ASSY., OIL LEVEL

$67.99

$

In Stock, only 1 left!

0

4

Honda 90045-ZG1-750

BOLT, STUD (6X30)

$3.99

$

Usually ships in 3-6 days

0

5

Honda 90121-952-000

BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 20+

0

6

Honda 90131-896-650

BOLT, DRAIN PLUG (12X15)

$4.99

$

In Stock, only 1 left!

0

7

Honda 90674-SL0-003

BAND, INSERT WIRE

$9.99

$

Usually ships in 3-6 days

0

8

Honda 91201-Z1C-003

OIL SEAL (35X52X8) (NOK)

$9.99

$

In Stock, Qty 7

0

9

Honda 91353-671-003

O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 14

0

9

Honda 91353-671-004

O-RING (14MM) (NOK)
(Superseded to 91353-671-003)

$3.99

$

In Stock, Qty 14

0

10

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 6

0

11

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 3 left!

0

12

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

13

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 1 left!

0
