EU3200i AN (EBKJ) - Honda Generator, Made in Japan (SN: EBKJ-1000001 - EBKJ-9999999) ROTOR@STATOR Parts Diagram

Generator, Made in Japan

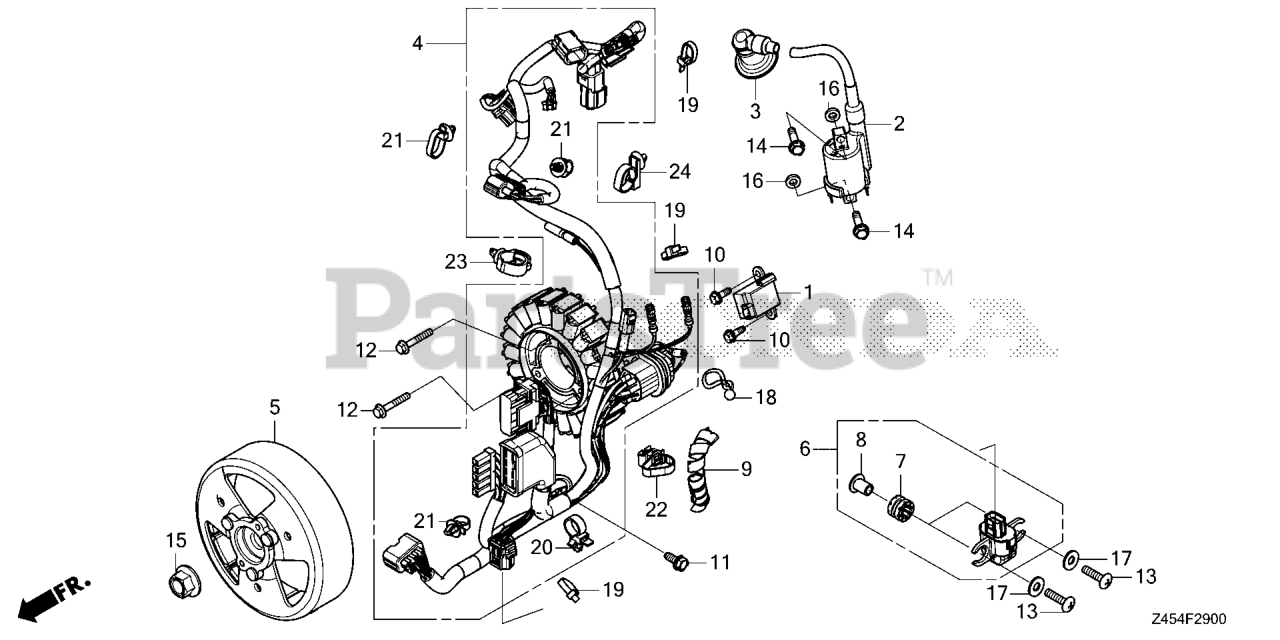

ROTOR@STATOR Parts Diagram

  • Title

1

Honda 30300-HA0-033

GENERATOR ASSY., PULSE (TEC)

$58.99

$

Usually ships in 3-6 days

0

2

Honda 30510-Z45-A32

COIL COMP, IGN

$84.99

$

Usually ships in 3-6 days

0

3

Honda 30700-Z45-A31

CAP NOISE SUPPRESSOR

$13.99

$

Usually ships in 3-6 days

0

4

Honda 31120-Z45-A30

STATOR ASSY.

$325.99

$

Usually ships in 3-6 days

0

5

Honda 31130-Z45-000

ROTOR COMP

$197.99

$

Usually ships in 3-6 days

0

6

Honda 35160-KRE-G01

SENSOR ASSY., BANK ANGLE

$119.99

$

Usually ships in 3-6 days

0

7

Honda 35162-KRE-G00

COLLAR

$3.99

$

Usually ships in 3-6 days

0

8

Honda 35163-KRE-G00

GROMMET

$29.99

$

Usually ships in 3-6 days

0

9

Honda 36105-ZW9-003

TUBE, SPIRAL B

$7.49

$

In Stock, only 2 left!

0

10

Honda 90012-ZM3-U30

BOLT, FLANGE (5X14) (CT200)

$2.49

$

Usually ships in 3-6 days

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, Qty 9

0

12

Honda 90101-Z07-000

BOLT, FLANGE (5X32) (CT200)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90114-GB4-810

SCREW (6X25) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$3.49

$

In Stock, Qty 17

0

15

Honda 90301-Z45-003

NUT, FLANGE (14MM)

$4.99

$

Usually ships in 3-6 days

0

16

Honda 90401-ZA0-000

WASHER, PLAIN (6.5X15) (Honda Code 1279173).

$1.49

$

Usually ships in 3-6 days

0

17

Honda 90402-ZG3-880

WASHER, PLAIN (7MM) (Honda Code 4026217).

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90652-ZY9-003

BAND, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0

20

Honda 91507-P01-003

CLIP B, HARNESS BAND (129.4MM) (DARK BROWN)

$9.49

$

Usually ships in 3-6 days

0

21

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

22

Honda 91549-TA0-003

CLIP, HARNESS BAND (140.3MM) (BLACK)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 91558-SD5-003

CLIP, WIRE HARNESS *NH1L* (BLACK)

$12.99

$

Usually ships in 3-6 days

0

24

Honda 91577-SFE-003

BAND, HARNESS OFFSET (10) (122.5MM) (BLUE)(W/SEAL)

$2.99

$

Usually ships in 3-6 days

0
