EU3200i AN (EBKJ) - Honda Generator, Made in Japan (SN: EBKJ-1000001 - EBKJ-9999999) MUFFLER Parts Diagram

Generator, Made in Japan

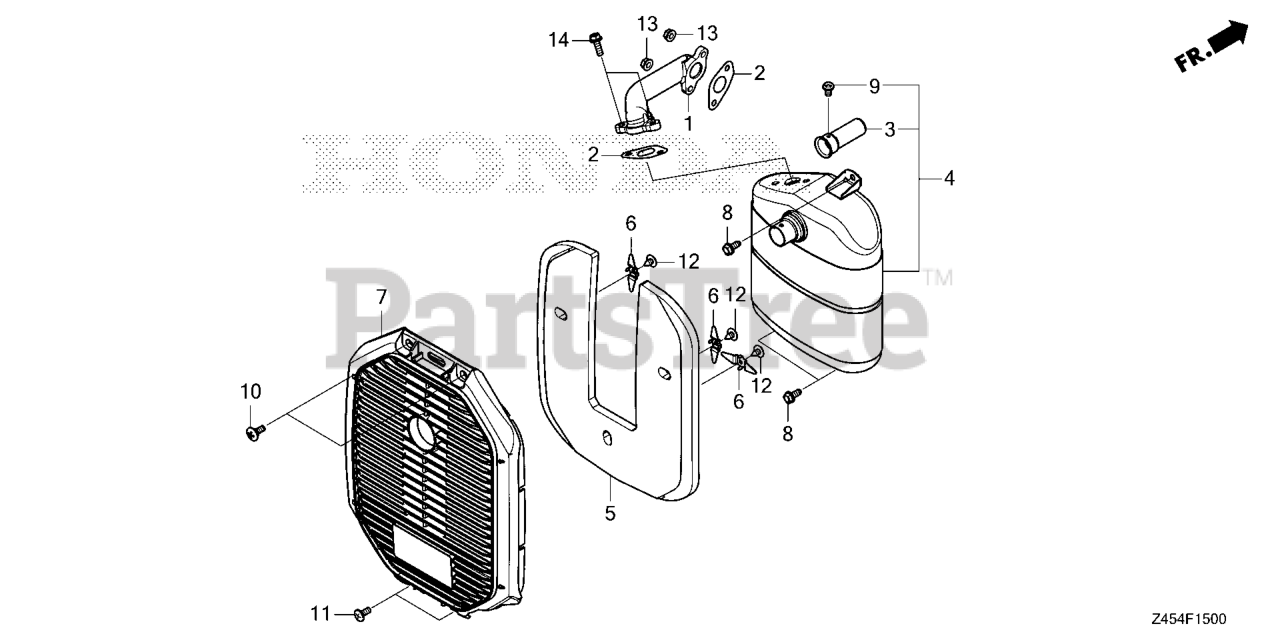

MUFFLER Parts Diagram

  • Title

1

Honda 18331-Z45-000

PIPE, EX.

$45.99

$

Usually ships in 3-6 days

0

2

Honda 18333-Z45-003

GASKET, EX. PIPE

$3.49

$

Usually ships in 3-6 days

0

3

Honda 18355-Z45-000

ARRESTER, SPARK

$12.99

$

Usually ships in 3-6 days

0

4

Honda 18700-Z45-010

MUFFLER ASSY.

$534.99

$

Usually ships in 3-6 days

0

5

Honda 19652-Z45-000

INSULATOR

$20.99

$

Usually ships in 3-6 days

0

6

Honda 19656-Z25-R50

CLIP, INS

$4.99

$

Usually ships in 3-6 days

0

7

Honda 63312-Z45-000ZA

PROTR, MUFF *NH1*

$193.99

$

Usually ships in 3-6 days

0

8

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

9

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

$1.49

$

In Stock, Qty 20+

0

10

Honda 90164-V02-000

SCREW, SPECIAL (6MM)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90380-GM9-740

SCREW, SPECIAL (6X15)

$1.99

$

In Stock, Qty 20+

0

12

Honda 93913-25110

SCREW, TAP (5X10)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

14

Honda 95701-06018-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18) (Honda Code 2552487).

$2.49

$

Usually ships in 3-6 days

0
