EU3200i AN (EBKJ) - Honda Generator, Made in Japan (SN: EBKJ-1000001 - EBKJ-9999999) FRONT PANEL@SIDE PANEL @REAR COVER Parts Diagram

Generator, Made in Japan

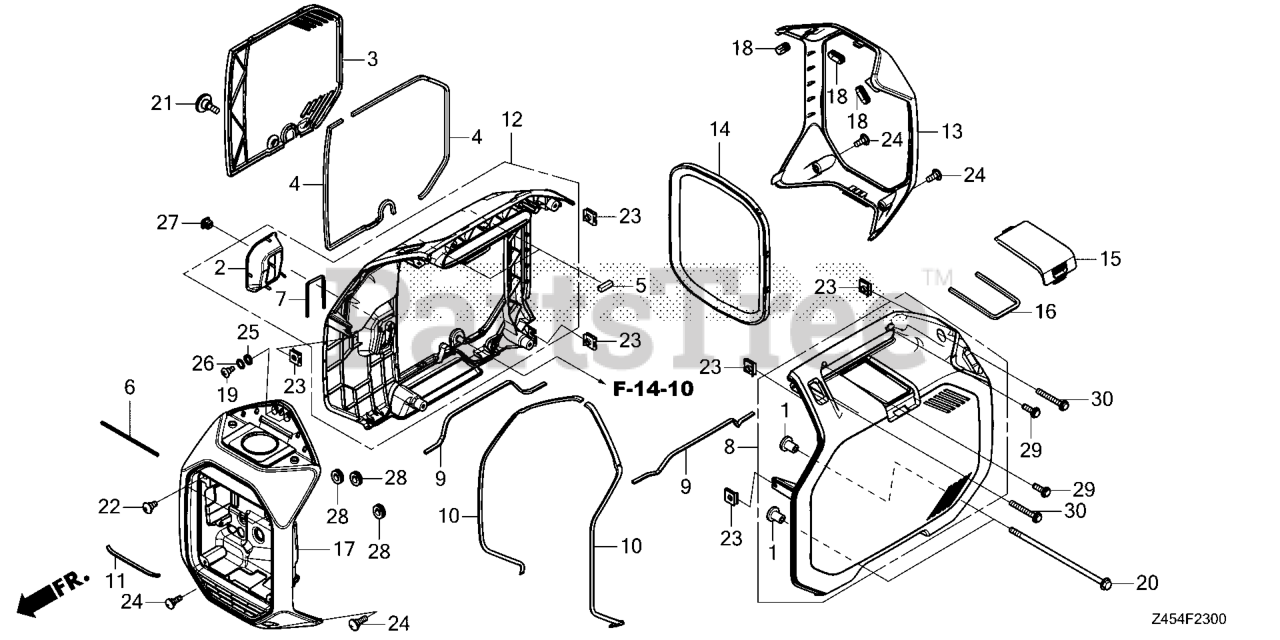

FRONT PANEL@SIDE PANEL @REAR COVER Parts Diagram

  • Title

1

Honda 19619-Z45-300

COLLAR, FAN COVER

$1.49

$

Usually ships in 3-6 days

0

2

Honda 28477-Z45-000

PROTR, STARTER ROPE

$9.49

$

Usually ships in 3-6 days

0

3

Honda 63151-Z45-000ZA

PANEL *NHC39R*

$50.99

$

Usually ships in 3-6 days

0

4

Honda 63153-Z45-000

SEAL, MAINTE PANEL

$2.99

$

Usually ships in 3-6 days

0

5

Honda 63158-Z45-000

SEAL A, L. PANEL

$0.99

$

Usually ships in 3-6 days

0

6

Honda 63159-Z45-000

SEAL C, FR. PANEL

$1.49

$

Usually ships in 3-6 days

0

7

Honda 63162-Z45-000

SEAL B, L. PANEL

$2.49

$

Usually ships in 3-6 days

0

8

Honda 63250-Z45-000ZA

PANEL COMP *NHC39R*

$144.99

$

In Stock, only 1 left!

0

9

Honda 63252-Z45-000

SEAL, SIDE PANEL

$2.99

$

Usually ships in 3-6 days

0

10

Honda 63253-Z45-000

SEAL A, FR. PANEL

$3.49

$

Usually ships in 3-6 days

0

11

Honda 63254-Z45-000

SEAL B, FR. PANEL

$2.99

$

Usually ships in 3-6 days

0

12

Honda 63260-Z45-000ZA

PANEL COMP *NHC39R*

$160.99

$

Usually ships in 3-6 days

0

13

Honda 63311-Z45-000ZB

COVER, RR. *R280*

$47.99

$

Usually ships in 3-6 days

0

14

Honda 63318-Z45-000

SEAL RUB, RR. PANEL

$16.99

$

Usually ships in 3-6 days

0

15

Honda 63340-Z45-000ZA

LID COMP *NHC39R*

$15.99

$

Usually ships in 3-6 days

0

16

Honda 63348-Z45-000

SEAL, PLUG CHECK LID

$1.99

$

Usually ships in 3-6 days

0

17

Honda 63510-Z45-A30ZA

PANEL COMP *R280*

$113.99

$

Usually ships in 3-6 days

0

18

Honda 83601-MB0-000

GROMMET A, SIDE COVER

$6.49

$

Usually ships in 3-6 days

0

19

Honda 90101-K90-VC0

SPL SCREW, PAN (5MM)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90101-Z45-000

BOLT, FLANGE (6X164)

$5.49

$

Usually ships in 3-6 days

0

21

Honda 90102-Z07-003

SCREW, SPECIAL (6X16)

$3.99

$

In Stock, Qty 20+

0

22

Honda 90102-Z45-000

SCREW, TRUSS (6X15)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 90320-747-000

NUT, SPRING (6MM)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90380-GM9-740

SCREW, SPECIAL (6X15)

$1.99

$

In Stock, only 4 left!

0

25

Honda 90501-961-300

WASHER (7X12)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 90552-VP9-003

WASHER, WAVE (7MM)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 90652-SA5-670

GROMMET, SCREW (6MM)

$4.49

$

Usually ships in 3-6 days

0

28

Honda 91652-Z45-000

GROMMET, FR. PANEL

$2.49

$

Usually ships in 3-6 days

0

29

Honda 93891-06020-07

SCREW-WASHER (6X20) (Honda Code 1188614).

$1.99

$

In Stock, only 4 left!

0

30

Honda 93891-06045-07

SCREW-WASHER (6X45) (NOT AVAILABLE)

$2.49

$

Usually ships in 3-6 days

0
