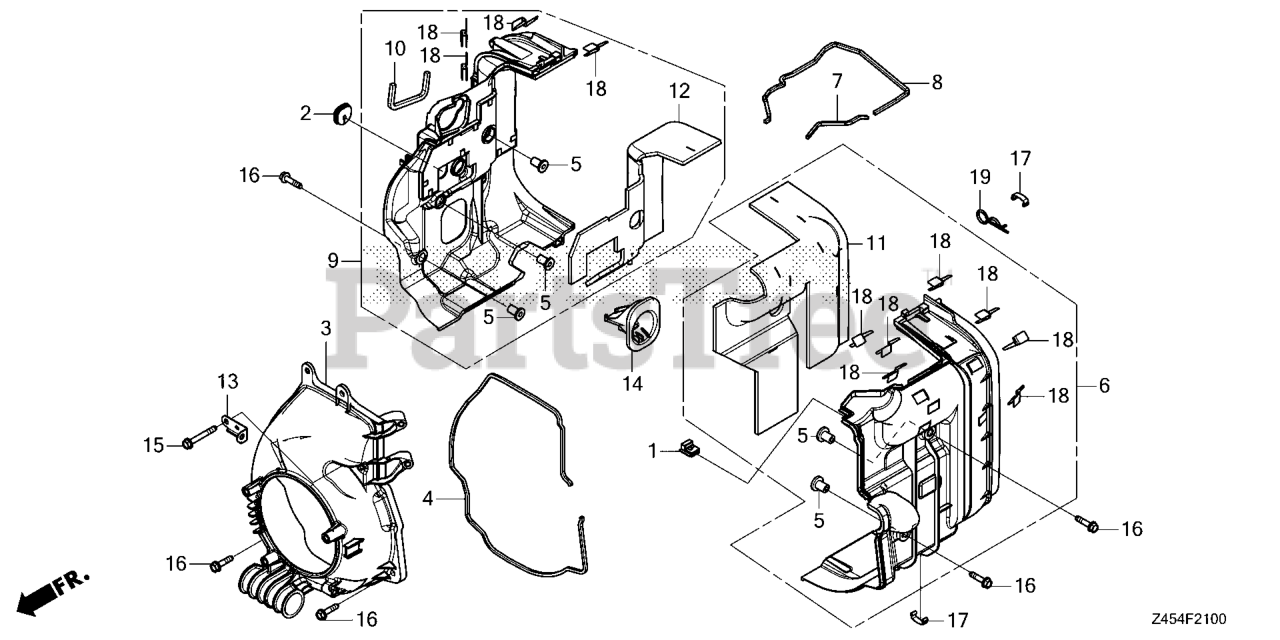

EU3200i AC (EBKJ) - Honda Generator, Made in Japan (SN: EBKJ-1000001 - EBKJ-9999999) FAN COVER@SHROUD Parts Diagram

Generator, Made in Japan

FAN COVER@SHROUD Parts Diagram

  • Title

1

Honda 15521-Z45-000

GROM, OXYGEN SENSOR

$1.99

$

Usually ships in 3-6 days

0

2

Honda 15522-Z45-000

GROMMET, TE SENSOR

$2.49

$

Usually ships in 3-6 days

0

3

Honda 19611-Z45-405

COVER, FAN (0000)

$73.99

$

Usually ships in 3-6 days

0

4

Honda 19613-Z45-000

SEAL, FAN COVER

$2.99

$

Usually ships in 3-6 days

0

5

Honda 19619-Z45-300

COLLAR, FAN COVER

$1.49

$

Usually ships in 3-6 days

0

6

Honda 19630-Z45-000

SHROUD ASSY., R

$85.99

$

Usually ships in 3-6 days

0

7

Honda 19636-Z45-000

SEAL A, SHROUD

$1.49

$

Usually ships in 3-6 days

0

8

Honda 19637-Z45-000

SEAL B, SHROUD

$1.49

$

Usually ships in 3-6 days

0

9

Honda 19640-Z45-000

SHROUD ASSY., L

$75.99

$

Usually ships in 3-6 days

0

10

Honda 19646-Z45-000

SEAL, L SHROUD

$1.99

$

Usually ships in 3-6 days

0

11

Honda 19653-Z45-000

INSULATOR, R SHROUD

$13.99

$

Usually ships in 3-6 days

0

12

Honda 19657-Z45-000

INSULATOR, L SHROUD

$9.49

$

Usually ships in 3-6 days

0

13

Honda 32114-Z45-000

BRACKET, HARN CLIP

$7.49

$

Usually ships in 3-6 days

0

14

Honda 63713-Z45-000

RUBBER, OIL CHECK

$11.99

$

Usually ships in 3-6 days

0

15

Honda 90016-ZE8-000

BOLT, FLANGE (6X45) (Honda Code 2488187).

$2.99

$

In Stock, only 2 left!

0

16

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

17

Honda 90659-Z35-000

CLAMP, CASE

$3.49

$

In Stock, only 2 left!

0

18

Honda 90686-Z45-300

CLIP, INSULATOR BIND

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94252-16100

PIN, LOCK (16MM)

$1.49

$

Usually ships in 3-6 days

0
