EU3000is AN (EZGF) - Honda Generator, Made in Japan (SN: EZGF-1080001 - EZGF-1499999) PISTON & CRANKSHAFT Parts Diagram

Generator, Made in Japan

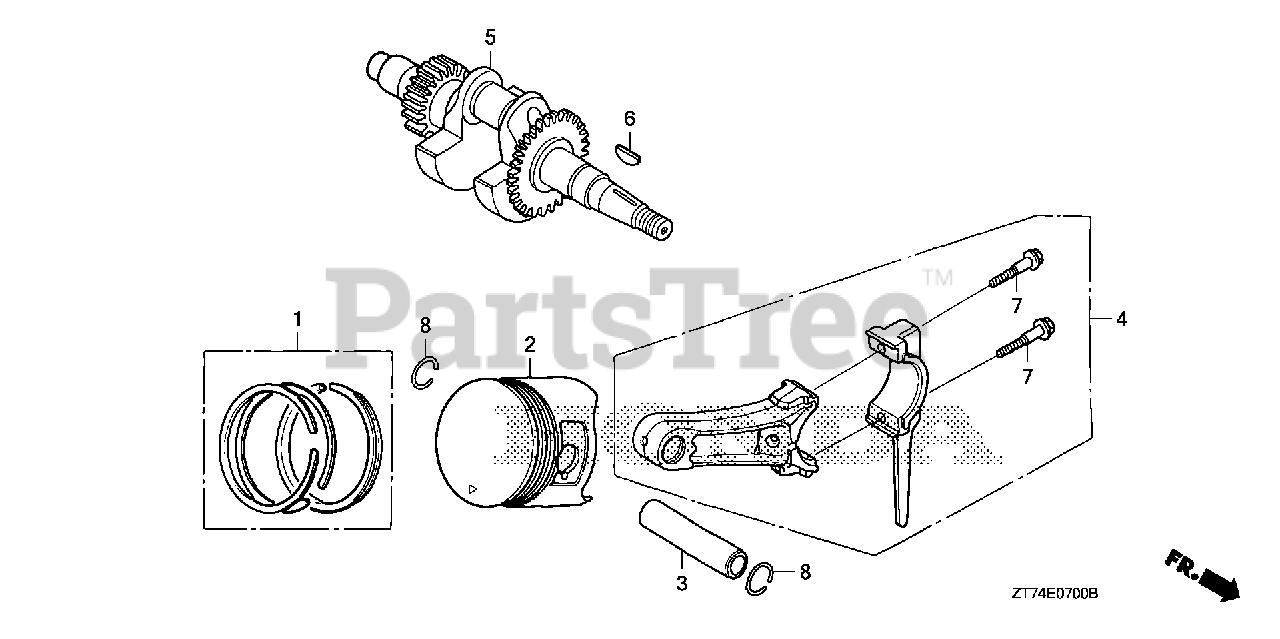

PISTON & CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-ZL0-003

RING SET, PISTON (STD) (TEIKOKU)

Note: Use up to Engine SN 2203880.

$58.99

$

In Stock, only 2 left!

0

1

Honda 13010-ZL0-004

RING SET, PISTON (STD.) (NIPPON)

Note: Use up to Engine SN 2203880.

$38.99

$

In Stock, only 2 left!

0

1

Honda 13010-Z4K-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (TPR)

Note: Use from Engine SN 2203881.

$34.99

$

In Stock, only 1 left!

0

1

Honda 13011-ZL0-003

RING SET, PISTON (0.25) (TEIKOKU)

Note: (Optional). Use up to Engine SN 2203880.

$64.99

$

Usually ships in 3-6 days

0

1

Honda 13011-ZL0-004

RING SET, PISTON (0.25) (NIPPON)

Note: (Optional). Use up to Engine SN 2203880.

$

$

Not available

1

Honda 13011-Z4K-004

RING SET, PISTON (0.25) (TPR)

Note: (Optional). Use from Engine SN 2203881.

$

$

Not available

1

Honda 13012-ZL0-003

RING SET, PISTON (0.50) (TEIKOKU)

Note: (Optional). Use up to Engine SN 2203880.

$64.99

$

Usually ships in 3-6 days

0

1

Honda 13012-ZL0-004

RING SET, PISTON (0.50) (NIPPON)

Note: (Optional). Use up to Engine SN 2203880.

$

$

Not available

1

Honda 13012-Z4K-004

RING SET, PISTON (0.50) (TPR)

Note: (Optional). Use from Engine SN 2203881.

$

$

Not available

1

Honda 13013-ZL0-003

RING SET, PISTON (0.75) (TEIKOKU)

Note: (Optional). Use up to Engine SN 2203880.

$64.99

$

Usually ships in 3-6 days

0

1

Honda 13013-ZL0-004

RING SET, PISTON (0.75) (NIPPON)

Note: (Optional). Use up to Engine SN 2203880.

$42.99

$

In Stock, only 1 left!

0

1

Honda 13013-Z4K-004

RING SET, PISTON (0.75) (TPR)

Note: (Optional). Use from Engine SN 2203881.

$

$

Not available

2

Honda 13101-ZL0-010

SEE PART DETAILS - PRI; PISTON (STD)

Note: Use up to Engine SN 2203880.

$44.99

$

In Stock, only 3 left!

0

2

Honda 13101-ZL0-020

SEE PART DETAILS - SUP; PISTON (STD)
(Superseded to 13101-Z4V-800)

Note: Use from Engine SN 2203881.

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13101-Z4V-800

SEE PART DETAILS - PRI; PISTON (STD)

Note: Use from Engine SN 2203881.

$25.99

$

Usually ships in 3-6 days

0

2

Honda 13102-ZL0-010

PISTON (0.25)

Note: (Optional). Use up to Engine SN 2203880.

$

$

Not available

2

Honda 13102-ZL0-020

PISTON (0.25)

Note: (Optional). Use from Engine SN 2203881.

$

$

Not available

2

Honda 13103-ZL0-010

PISTON (0.50)

Note: (Optional). Use up to Engine SN 2203880.

$49.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZL0-020

PISTON (0.50)

Note: (Optional). Use from Engine SN 2203881.

$

$

Not available

2

Honda 13104-ZL0-010

PISTON (0.75)

Note: (Optional). Use up to Engine SN 2203880.

$

$

Not available

2

Honda 13104-ZL0-020

PISTON (0.75)

Note: (Optional). Use from Engine SN 2203881.

$

$

Not available

3

Honda 13111-ZE1-000

PIN, PISTON

$13.99

$

Usually ships in 3-6 days

0

4

Honda 13200-ZE1-010

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (STD)
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-Z0T-800

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING (TH)
(Superseded to 13200-Z4V-900)

$13.99

$

In Stock, only 1 left!

0

5

Honda 13310-ZL0-D31

CRANKSHAFT

$245.99

$

Usually ships in 3-6 days

0

6

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$5.49

$

In Stock, only 4 left!

0

7

Honda 90001-ZE1-000

BOLT, CONNECTING ROD

$3.99

$

In Stock, only 2 left!

0

8

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

$1.49

$

In Stock, Qty 14

0
