EU3000is AN (EZGF) - Honda Generator, Made in Japan (SN: EZGF-1080001 - EZGF-1499999) FUEL TANK Parts Diagram

Generator, Made in Japan

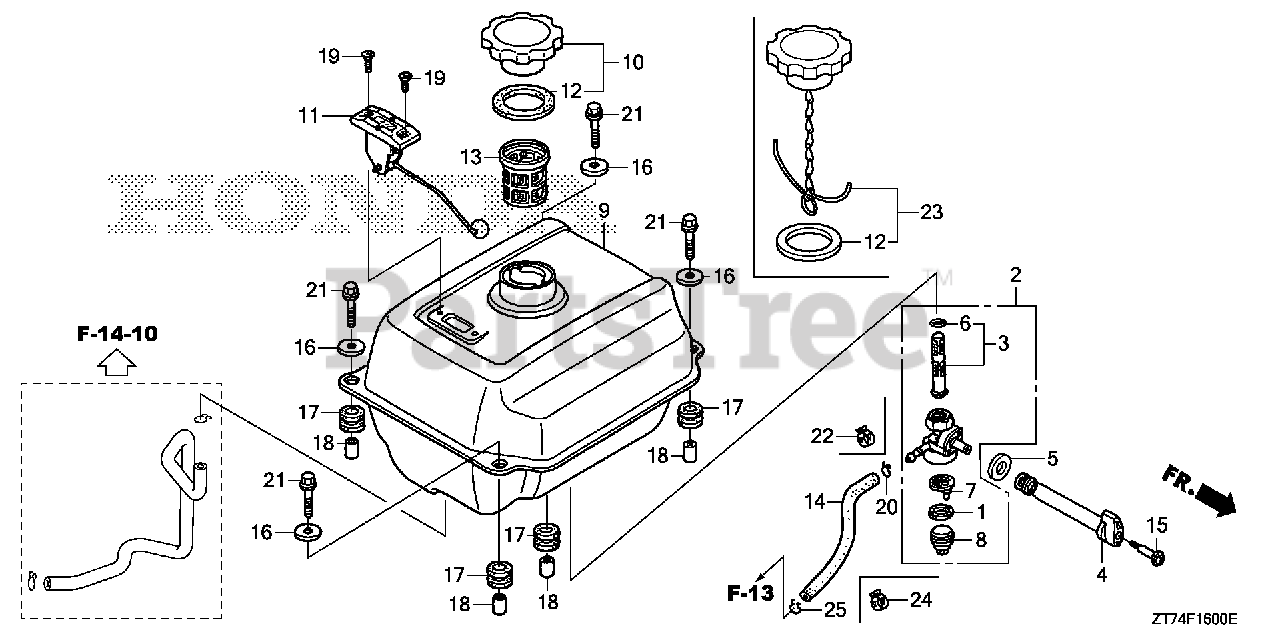

FUEL TANK Parts Diagram

  • Title
1

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, Qty 7

0

2

Honda 16950-ZS9-003

PETCOCK ASSY.

$75.99

$

Usually ships in 3-6 days

0

3

Honda 16952-KJ9-752

SEE PART DETAILS - PRI; SCREEN SET, FUEL STRAINER

$45.99

$

Usually ships in 3-6 days

0

3

Honda 16952-ZB4-005

SEE PART DETAILS - SUP; SCREEN SET, FUEL STRAINER
(Superseded to 16952-KJ9-752)

$45.99

$

Usually ships in 3-6 days

0

4

Honda 16953-ZS9-000

LEVER, PETCOCK

$9.49

$

In Stock, Qty 9

0

5

Honda 16958-ZS9-000

SEAL, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16958-397-771

O-RING (9.0X1.3)

$7.49

$

In Stock, Qty 5

0

7

Honda 16959-471-831

FILTER, CUP

$12.99

$

In Stock, Qty 8

0

8

Honda 16967-GA6-671

CUP, FUEL STRAINER

$30.99

$

Usually ships in 3-6 days

0

9

Honda 17510-ZS9-000ZA

TANK, FUEL *NH1* (BLACK)

$306.99

$

Usually ships in 3-6 days

0

10

Honda 17620-899-013

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-899-023)

$40.99

$

In Stock, only 1 left!

0

11

Honda 17630-ZS9-003

SEE PART DETAILS - SUP; METER ASSY., FUEL
(Superseded to 17630-ZS9-013)

$26.99

$

In Stock, only 2 left!

0

11

Honda 17630-ZS9-013

SEE PART DETAILS - PRI; METER ASSY., FUEL

$26.99

$

In Stock, only 2 left!

0

12

Honda 17631-899-000

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-899-010)

$7.99

$

In Stock, only 2 left!

0

13

Honda 17672-899-000

FILTER, FUEL

$17.99

$

In Stock, only 4 left!

0

14

Honda 17701-ZS9-000

TUBE, FUEL TANK

$4.49

$

In Stock, only 3 left!

0

15

Honda 90105-ZT3-000

SCREW, PAN (4X19)

Note: Use from Frame SN 1049770.

$2.49

$

In Stock, only 1 left!

0

15

Honda 90141-ML7-000

SCREW, PAN (4X19)

Note: Use up to Frame SN 1049769.

$1.99

$

Usually ships in 3-6 days

0

16

Honda 90503-898-000

WASHER, TANK CUSHION

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90851-898-000

RUBBER, TANK CUSHION

$5.99

$

In Stock, only 1 left!

0

18

Honda 91551-898-000

COLLAR, TANK CUSHION

$5.99

$

Usually ships in 3-6 days

0

19

Honda 93600-05010-0A

SCREW, FLAT (5X10)

$1.49

$

In Stock, only 3 left!

0

21

Honda 95701-06022-00

BOLT, FLANGE (6X22)

$2.49

$

In Stock, only 1 left!

0

22

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, Qty 6

0

24

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, Qty 6

0
