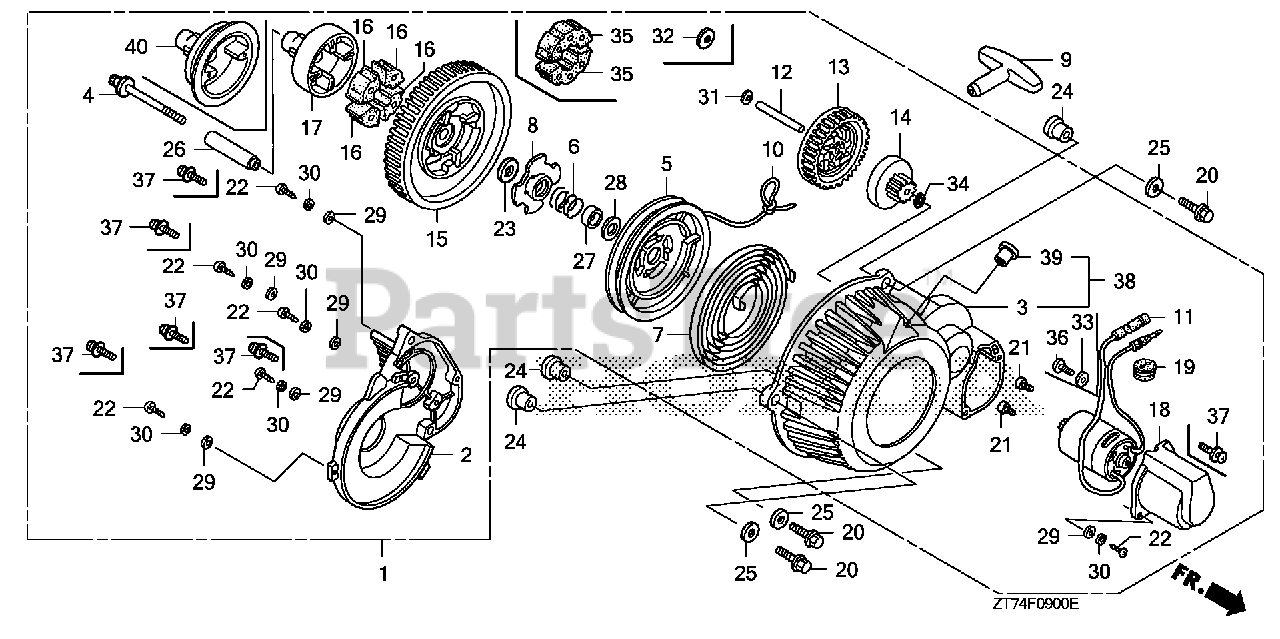

EU3000is A (EZGF) - Honda Generator, Made in Japan (SN: EZGF-1000001 - EZGF-1499999) RECOIL STARTER Parts Diagram

Generator, Made in Japan

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZS9-A01

STARTER ASSY., STARTER MOTOR & RECOIL (NA USE ALT:06284-ZS9-305)

Note: Use up to Frame SN 1015318.

$

$

Currently unavailable

1

Honda 28400-ZS9-A02

SEE PART DETAILS - SUP; STARTER ASSY., STARTER MOTOR & RECOIL
(Superseded to 28400-ZS9-A04)

Note: Use from Frame SN 1015319.

$208.99

$

In Stock, only 2 left!

0

1

Honda 28400-ZS9-A04

SEE PART DETAILS - PRI; STARTER ASSY., STARTER MOTOR & RECOIL

Note: Use from Frame SN 1015319.

$208.99

$

In Stock, only 2 left!

0

2

Honda 28411-ZS9-A01

COVER, GEAR

Note: Use up to Frame SN 1015318.

$

$

Not available

2

Honda 28411-ZS9-A02

COVER, GEAR

Note: Use from Frame SN 1015319.

$17.99

$

Usually ships in 3-6 days

0

3

Honda 28414-ZS9-A01

CASE, RECOIL STARTER (NOT AVAILABLE)

Note: Use up to Frame SN 1015318.

$

$

Not available

3

Honda 28414-ZS9-A03

CASE, RECOIL STARTER

Note: Use from Frame SN 1015319.

$46.99

$

Usually ships in 3-6 days

0

4

Honda 28416-ZS9-A01

BOLT, CENTER (8MM)

$4.49

$

In Stock, only 1 left!

0

5

Honda 28421-ZS9-A01

REEL, RECOIL STARTER

$26.99

$

Usually ships in 3-6 days

0

6

Honda 28441-ZS9-A01

SPRING, FRICTION

$2.49

$

In Stock, only 2 left!

0

7

Honda 28442-ZS9-A01

SPRING, RECOIL STARTER

$14.99

$

Usually ships in 3-6 days

0

8

Honda 28443-ZS9-A01

GUIDE, RATCHET

$4.99

$

Usually ships in 3-6 days

0

9

Honda 28461-ZL8-003

KNOB, RECOIL STARTER (Honda Code 5580634).

$4.49

$

In Stock, Qty 20+

0

10

Honda 28462-ZS9-A01

ROPE, RECOIL STARTER

$12.99

$

In Stock, only 1 left!

0

11

Honda 31210-ZS9-A01

STARTER MOTOR SET (D.C.) (NOT AVAILABLE)

Note: Use up to Frame SN 1015318.

$

$

Not available

11

Honda 31210-ZS9-A02

STARTER MOTOR SET (D.C.)

Note: Use from Frame SN 1015319.

$148.99

$

In Stock, only 2 left!

0

12

Honda 31265-ZL8-H21

SHAFT, GEAR

Note: Use from Frame SN 1015319.

$5.99

$

Usually ships in 3-6 days

0

12

Honda 31265-ZS9-A01

SHAFT, GEAR

Note: Use up to Frame SN 1015318.

$5.49

$

Usually ships in 3-6 days

0

13

Honda 31267-ZS9-A01

GEAR (B) (NOT AVAILABLE)

Note: Use up to Frame SN 1015318.

$

$

Not available

13

Honda 31267-ZS9-A02

GEAR (B)

Note: Use from Frame SN 1015319.

$57.99

$

Usually ships in 3-6 days

0

14

Honda 31268-ZL8-A01

GEAR (C)

Note: Use from Frame SN 1015319.

$25.99

$

Usually ships in 3-6 days

0

14

Honda 31268-ZS9-A01

GEAR (C) (NOT AVAILABLE)

Note: Use up to Frame SN 1015318.

$7.49

$

Usually ships in 3-6 days

0

15

Honda 31269-ZL8-H22

GEAR (F)

Note: Use from Frame SN 1015319.

$57.99

$

In Stock, only 2 left!

0

15

Honda 31269-ZS9-A01

GEAR (F) (NOT AVAILABLE)

Note: Use up to Frame SN 1015318.

$

$

Not available

16

Honda 31271-ZS9-A01

DAMPER

Note: Use up to Frame SN 1015318.

$

$

Not available

17

Honda 31272-ZL8-H22

CAM, DRIVE

Note: Use from Frame SN 1015319.

$13.99

$

In Stock, only 2 left!

0

17

Honda 31272-ZS9-A01

CAM, DRIVE (NOT AVAILABLE)

Note: Use up to Frame SN 1015318.

$

$

Not available

18

Honda 31275-ZS9-A01

COVER, MOTOR

$13.99

$

Usually ships in 3-6 days

0

19

Honda 31276-ZS9-A01

GROMMET

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

$2.49

$

In Stock, Qty 20+

0

21

Honda 90101-ZS9-A01

SCREW, CAP (3X8)

Note: Use up to Frame SN 1015318.

$2.99

$

Usually ships in 3-6 days

0

22

Honda 90102-ZS9-A01

SCREW (4X16)

Note: Use up to Frame SN 1015318.

$

$

Not available

23

Honda 90501-ZS9-A01

WASHER C (11MM)

$1.99

$

In Stock, Qty 5

0

24

Honda 90504-ZS9-000

COLLAR, RECOIL STARTER

$3.49

$

In Stock, only 2 left!

0

25

Honda 91414-671-000

WASHER, BLACK (20MM)

$7.99

$

Usually ships in 3-6 days

0

26

Honda 91551-ZS9-A01

COLLAR (1.8X51.4)

$8.49

$

Usually ships in 3-6 days

0

27

Honda 91552-ZS9-A01

COLLAR (2.15X9.4)

$5.49

$

Usually ships in 3-6 days

0

28

Honda 91553-ZS9-A01

WASHER B (16MM)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 91555-ZS9-A01

WASHER A (4MM)

Note: Use up to Frame SN 1015318.

$1.99

$

Usually ships in 3-6 days

0

30

Honda 91556-ZS9-A01

WASHER, SPRING (4MM) (NOT AVAILABLE)

Note: Use up to Frame SN 1015318.

$

$

Not available

31

Honda 91557-ZS9-A01

WASHER E (6MM)

Note: Use up to Frame SN 1015318.

$

$

Not available

32

Honda 91551-ZL8-H21

WASHER (8MM)

Note: Use from Frame SN 1015319.

$2.99

$

Usually ships in 3-6 days

0

33

Honda 91558-ZS9-A01

WASHER (3.4MM)

Note: Use from Frame SN 1015319.

$1.99

$

Usually ships in 3-6 days

0

34

Honda 91557-ZS9-A01

WASHER E (6MM)

Note: Use up to Frame SN 1015318.

$

$

Not available

35

Honda 31271-ZL8-H21

DAMPER

Note: Use from Frame SN 1015319.

$17.99

$

Usually ships in 3-6 days

0

36

Honda 90103-ZS9-A01

SCREW (3X8)

Note: Use from Frame SN 1015319.

$2.99

$

Usually ships in 3-6 days

0

37

Honda 90104-ZS9-A01

SCREW-WASHER (4X16)

Note: Use from Frame SN 1015319.

$2.99

$

Usually ships in 3-6 days

0
