EU3000is A (EZGF) - Honda Generator, Made in Japan (SN: EZGF-1000001 - EZGF-1499999) INVERTER Parts Diagram

Generator, Made in Japan

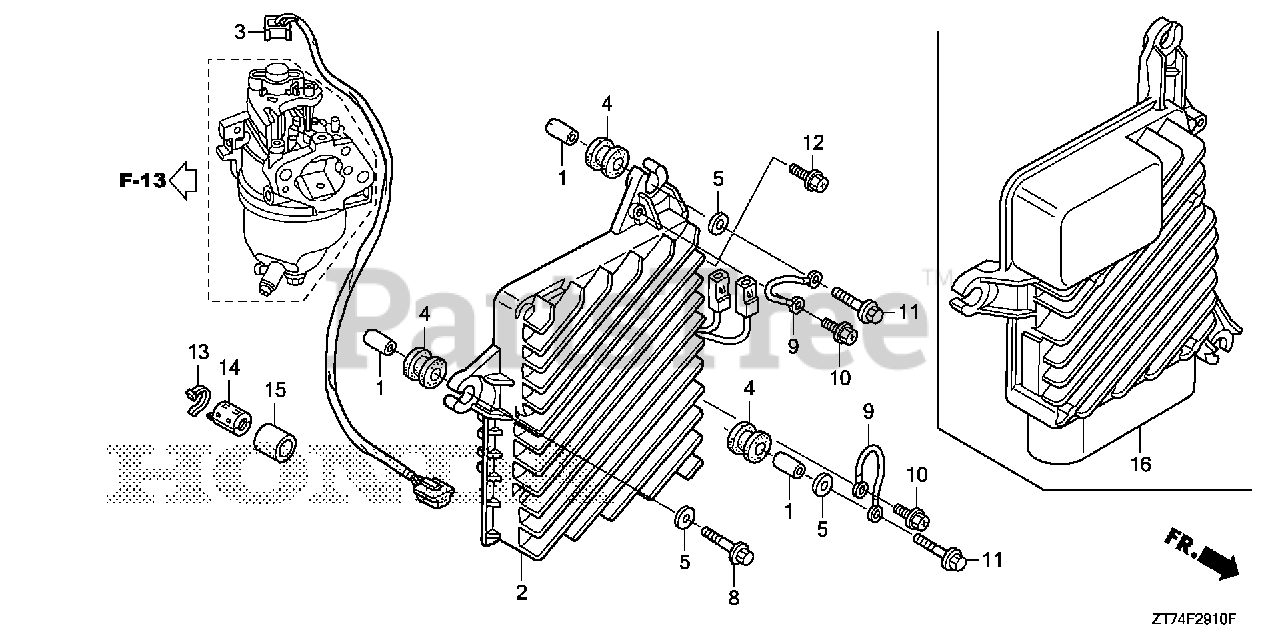

INVERTER Parts Diagram

  • Title
1

Honda 17272-ZC3-300

COLLAR, IN. JOINT

$3.99

$

Usually ships in 3-6 days

0

2

Honda 31310-ZS9-A31

INVERTER UNIT (NOT AVAILABLE, USE KIT 06310-ZS9-R30)

Note: Use up to Frame SN 1006998.

$

$

Currently unavailable

2

Honda 31310-ZS9-A32

INVERTER UNIT (NOT AVAILABLE, USE KIT 06310-ZS9-R30)
(Superseded to 31310-ZS9-T23)

Note: Use from Frame SN 1006999.

$

$

Not available

3

Honda 32196-ZS9-A00

SUB-WIRE ASSY.

$35.99

$

In Stock, only 1 left!

0

4

Honda 91651-ZS9-000

RUBBER, INVERTER UNIT

$2.99

$

Usually ships in 3-6 days

0

5

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 20+

0

8

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

$2.49

$

In Stock, Qty 8

0

11

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

$2.49

$

In Stock, Qty 8

0
