EU3000is A/A (EZGF) - Honda Generator, Made in Japan (SN: EZGF-1080001 - EZGF-1499999) CYLINDER HEAD Parts Diagram

Generator, Made in Japan

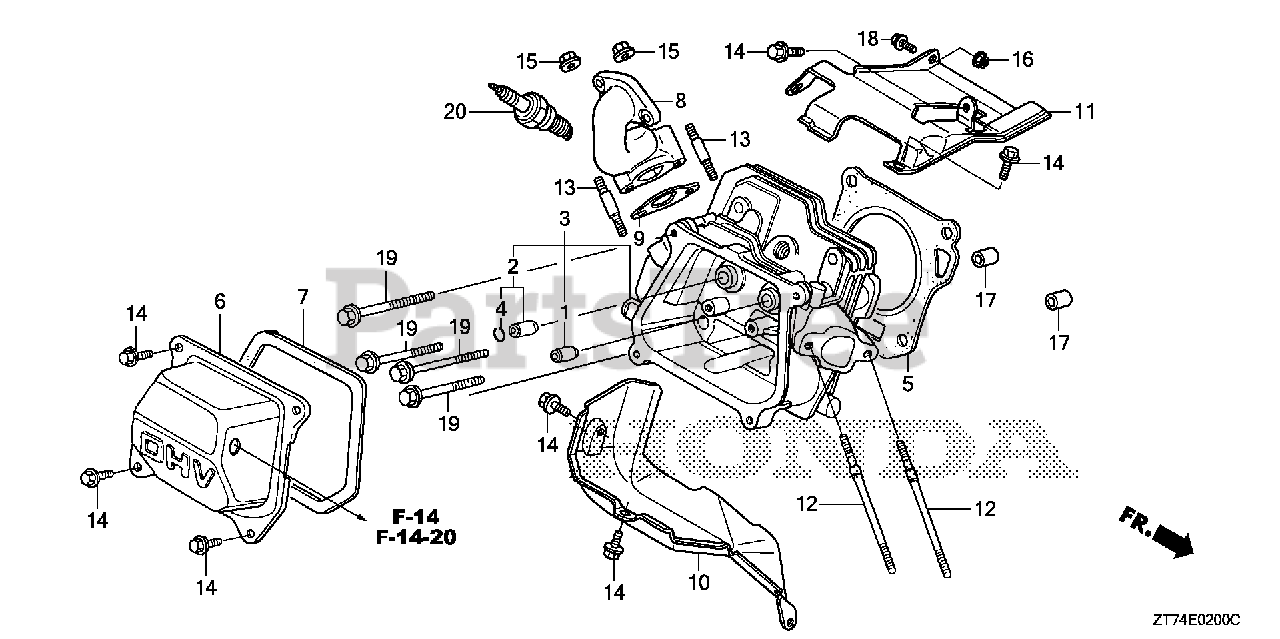

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$

$

Not available

2

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OVER SIZE)

$10.99

$

In Stock, only 3 left!

0

3

Honda 12210-ZL0-405

CYLINDER HEAD
(Superseded to 12210-ZL0-425)

$76.99

$

Usually ships in 3-6 days

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 18

0

5

Honda 12251-ZL0-003

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

$25.99

$

Usually ships in 3-6 days

0

6

Honda 12310-ZE1-020

SEE PART DETAILS - PRI; COVER, HEAD

$18.99

$

In Stock, only 1 left!

0

7

Honda 12391-ZE1-000

GASKET, HEAD COVER

$5.49

$

In Stock, Qty 20+

0

8

Honda 18331-ZL0-D30

PIPE, EX.

$55.99

$

In Stock, only 1 left!

0

9

Honda 18381-ZH8-801

SEE PART DETAILS - PRI; GASKET, MUFFLER

$4.49

$

In Stock, only 1 left!

0

10

Honda 19630-ZH8-000

SHROUD

$16.99

$

Usually ships in 3-6 days

0

11

Honda 19631-ZL0-D30

SHROUD (UPPER)

$20.99

$

Usually ships in 3-6 days

0

12

Honda 90001-ZL0-D30

BOLT, STUD (6X115) (CT200)

$5.49

$

In Stock, only 2 left!

0

13

Honda 90002-ZL0-D30

BOLT, STUD (8X65) (CT200)

$4.99

$

Usually ships in 3-6 days

0

14

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

15

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

17

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

18

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 7

0

19

Honda 95723-08060-00

BOLT, FLANGE (8X60)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

20

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0

20

Honda 98079-56846

SPARK PLUG (BPR6ES) (NGK)

Note: (Optional).

$3.49

$

In Stock, Qty 20+

0

20

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

Note: (Optional).

$3.99

$

In Stock, only 1 left!

0
