EU3000is 1 AN (EZGF) - Honda Generator, Made in Japan (SN: EZGF-1800001 - EZGF-9999999) CONTROL PANEL (4) Parts Diagram

Generator, Made in Japan

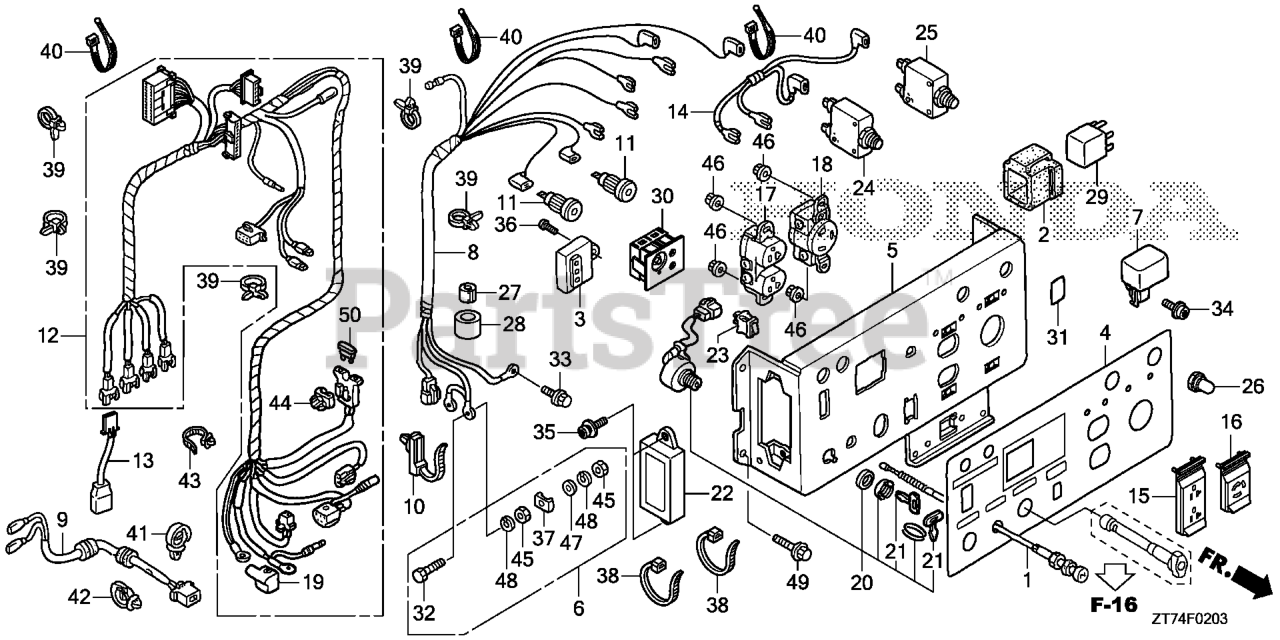

CONTROL PANEL (4) Parts Diagram

  • Title

1

Honda 17950-ZS9-003

CABLE, CHOKE

$32.99

$

Usually ships in 3-6 days

0

2

Honda 30401-GA7-000

CUSHION, IGNITION CONTROL MODULE (CDI) (NOT AVAILABLE)

$

$

Not available

3

Honda 30585-ZS9-A02

SEE PART DETAILS - PRI; IGNITION UNIT

$109.99

$

Usually ships in 3-6 days

0

4

Honda 31406-ZS9-W30

MARK, CONTROL PANEL (AG)

$110.99

$

Usually ships in 3-6 days

0

5

Honda 31420-ZS9-W31

PANEL, CONTROL (AG)

$114.99

$

Usually ships in 3-6 days

0

6

Honda 31428-899-840

TERMINAL SET, GROUND

$24.99

$

Usually ships in 3-6 days

0

7

Honda 31750-ZS9-A03

RECTIFIER, REGULATOR (NOT AVAILABLE)

$56.99

$

Usually ships in 3-6 days

0

8

Honda 32100-ZS9-W31

WIRE HARNESS ASSY., MAIN (AG)

$138.99

$

Usually ships in 3-6 days

0

9

Honda 32110-ZS9-R00

WIRE HARNESS ASSY., ENGINE

$33.99

$

Usually ships in 3-6 days

0

10

Honda 32133-SLA-003

BAND, HARNESS OFFSET (30) (145MM) (DARK GRAY)

$0.99

$

Usually ships in 3-6 days

0

11

Honda 32139-ZS9-A01

SOCKET, COMPOSITE

$42.99

$

Usually ships in 3-6 days

0

12

Honda 32150-ZS9-W31

WIRE HARNESS ASSY., CONTROL (AG)

$241.99

$

Usually ships in 3-6 days

0

13

Honda 32155-ZS9-W31

SUB-WIRE HARNESS ASSY., CONTROL (AG)

$29.99

$

Usually ships in 3-6 days

0

14

Honda 32197-ZS9-T31

SUB-WIRE ASSY.

$36.99

$

Usually ships in 3-6 days

0

15

Honda 32320-ZS9-W30

COVER, RECEPTACLE (20A-125V)

$20.99

$

Usually ships in 3-6 days

0

16

Honda 32321-ZS9-W30

COVER, RECEPTACLE (30A-125V)

$20.99

$

Usually ships in 3-6 days

0

17

Honda 32330-Z03-C31

RECEPTACLE (20A/125V)

$52.99

$

In Stock, only 1 left!

0

18

Honda 32332-880-710

SEE PART DETAILS - PRI; RECEPTACLE (3-PRONG) (30A/125V)
(Superseded to 32332-ZB4-630)

$48.99

$

In Stock, only 1 left!

0

19

Honda 32412-MJ6-000

COVER, BATTERY TERMINAL (NOT AVAILABLE)

$

$

Not available

20

Honda 35100-ZB4-023

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

$146.99

$

In Stock, only 1 left!

0

21

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY (Honda Code 7635063).

$11.99

$

In Stock, only 3 left!

0

22

Honda 35610-ZS9-PA0

SENSING UNIT (CO)

$228.99

$

Usually ships in 3-6 days

0

23

Honda 36214-Z11-A01

SWITCH, AUTO-THROTTLE (OTAX)

$25.99

$

In Stock, only 2 left!

0

24

Honda 38240-ZC6-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (20A)

$83.99

$

Usually ships in 3-6 days

0

25

Honda 38241-ZC6-E31

SEE PART DETAILS - PRI; PROTECTOR, CIRCUIT (30A)

$83.99

$

Usually ships in 3-6 days

0

26

Honda 38242-Z25-A62

COVER, CIRCUIT PROTECTOR

$18.99

$

Usually ships in 3-6 days

0

27

Honda 38398-YM2-B50

FILTER, SUB NOISE (AC)

$36.99

$

Usually ships in 3-6 days

0

28

Honda 38398-Z07-C60

SUPPORTER, FILTER

$5.49

$

Usually ships in 3-6 days

0

29

Honda 38510-ZS9-A01

RELAY ASSY., POWER (5P)

$38.99

$

Usually ships in 3-6 days

0

30

Honda 38530-ZS9-W32

LED ASSY., INDICATER

$35.99

$

Usually ships in 3-6 days

0

31

Honda 87117-ZS9-A60

MARK, FUSE

$5.49

$

Usually ships in 3-6 days

0

32

Honda 90011-899-840

BOLT, HEX. (6X28)

$4.99

$

Usually ships in 3-6 days

0

33

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

34

Honda 90106-ZS9-W30

BOLT, FLANGE TORX (6X10)

$4.49

$

Usually ships in 3-6 days

0

35

Honda 90107-ZS9-W30

BOLT-WASHER (5X15) (TORX)

$4.49

$

Usually ships in 3-6 days

0

36

Honda 90108-MN0-000

SCREW, PAN (5X13)

$2.49

$

Usually ships in 3-6 days

0

37

Honda 90501-ZA7-640

RETAINER (6MM)

$3.99

$

In Stock, only 1 left!

0

38

Honda 90650-KV6-003

BAND, WIRE (95MM)

$4.49

$

Usually ships in 3-6 days

0

39

Honda 90672-ZB4-003

TIE, CABLE (NATURAL 225X5.0)

$6.49

$

Usually ships in 3-6 days

0

40

Honda 90672-ZB7-811

TIE, CABLE (NATURAL 154X3.4)

$4.99

$

Usually ships in 3-6 days

0

41

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM) (Honda Code 1226265).

$12.99

$

Usually ships in 3-6 days

0

42

Honda 90691-ZB7-003

SEE PART DETAILS - PRI; CLIP, HARNESS

$4.49

$

Usually ships in 3-6 days

0

43

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0

44

Honda 91565-SH3-003

CLIP, CONNECTOR HOLDER (BROWN)

$8.49

$

Usually ships in 3-6 days

0

45

Honda 94001-06390-0S

NUT, HEX. (6MM)

$2.49

$

Usually ships in 3-6 days

0

46

Honda 94050-04080

NUT, FLANGE (4MM)

$1.99

$

In Stock, Qty 8

0

47

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

48

Honda 94111-06800

WASHER, SPRING (6MM) (Honda Code 0258210).

$1.49

$

Usually ships in 3-6 days

0

49

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 7

0

50

Honda 98200-30500

SEE PART DETAILS - PRI; FUSE, BLADE (5A) (Honda Code 1938737).

$1.99

$

In Stock, Qty 5

0
